uIBX-250-BW

Ultra Compact Size

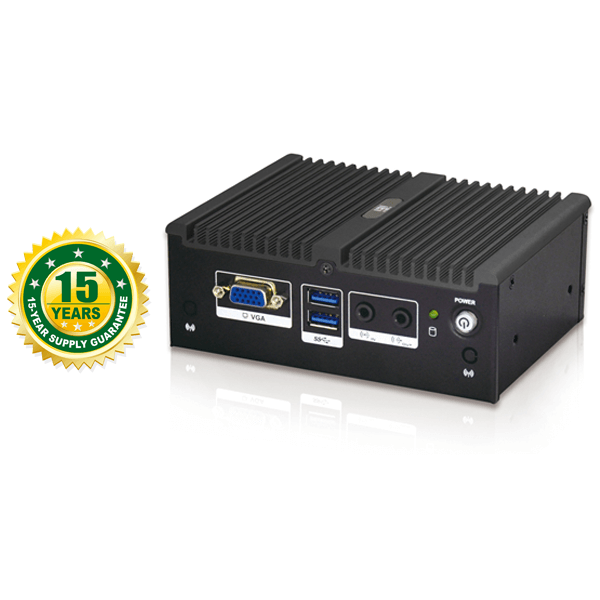

uibx-250-bw-compact-embedded-box-pc-15-years
uibx-250-bw-compact-embedded-box-pc
uibx-250-bw-compact-embedded-box-pc
uibx-250-bw-compact-embedded-box-pc
uibx-250-bw-compact-embedded-box-pc
  • uibx-250-bw-compact-embedded-box-pc-15-years
  • uibx-250-bw-compact-embedded-box-pc
  • uibx-250-bw-compact-embedded-box-pc
  • uibx-250-bw-compact-embedded-box-pc
  • uibx-250-bw-compact-embedded-box-pc
» Fanless system with Intel® Celeron® N3160 processor
» Dual display
» Two RS-232/422/485
» Full-size PCIe Mini slot for expansion
» Four USB 3.0 ports
» Two GbE LAN ports

Hardware Spec.

Form factor
SBC Form Factor CPU:Intel® Celeron® N3160
(up to 2.24 GHz, quad-core, 2 MB cache, TDP=6W)
Chipset:SoC
System Memory:1 x 204-pin DDR3L 1.35 V SO-DIMM
(system max: 8 GB) Pre-installed 2 GB
I/O Interface
I/O Ports 4 x USB 3.0
Ethernet:
2 x RJ-45 PCIe GbE by Intel® i210 controller
2 x RJ-45 RS-232/422/485
1 x HDMI™, 1 x VGA
1 x Line-out, 1 x Line-in
Expansion Slots
Expansion Slots 1 x Full-size PCIe Mini card (support mSATA, colay with SATA)
*uIBX-250-BW-QGW-R20 has no PCIe mini slot*
System
Cooling method / System Fan Fanless
Drive Bays 1 x 2.5' SATA 6Gb/s HDD/SSD drive bay
Indicator&Buttons
Buttons 1 x Power button, 1 x AT/ATX switch
Indicators HDD
Color
Color Black
Dimensions
Dimensions 136.6 x 102.4 x 52
Weight
Weight 470 g/1.4 kg
Environment
Operating Temperature -20°C ~ 60°C with air flow
Humidity 10% ~ 95%, non-condensing

Ordering Information

uIBX-250-BW-N3/2G-R21 Fanless embedded system with Intel® Celeron® N3160 1.6 GHz (up to 2.24 GHz, quad core, TDP 6 W), 2 GB DDR3L pre-installed memory,12 V DC, with RS-232/422/485, USB 3.0, VGA/HDMI™, dual Intel® PCIe GbE, RoHS

Package Contents

Package Content
  • 1 x Power Adapter

  • 1 x Mounting Bracket

  • 2 x RS-232/422/485 round cable
