AFL3-W07A-BT

Intel® Celeron® N2807 (Dual Core, 1.58 GHz)

  • Overview
    ● W7”~8.4” light industrial interactive panel PC
    ● 9 V ~ 30 V wide range DC input with lockable DC jack
    ● Selectable AT/ATX power mode
    ● Built-in speakers
    ● One mSATA slot
    ● IP64/IP65 compliant front panel
    ● IEI One Key Recovery solution allows you to create rapid OS backup and recovery (suggested with over 4GB storage capacity)

  • Features

    AFL3-W07A-BT
    All-in-one touch Panel PC


















    • 16:9  7"(1024 x 600) light industrial interactive panel PC
    • 9 V ~ 30 V wide range DC input with lockable DC jack
    • Selectable AT/ATX power mode
    • Built-in speakers
    • One mSATA slot
    • IP65 compliant front panel
    • IEI One Key Recovery solution allows you to create rapid OS backup and recovery (suggested with over 4GB storage capacity)



    Application

    Smart Home Best Choice

    The AFL3-W07A-BT Panel PC is your best choice for the smart home solution. You can control over your entire home from the Finger-Friendly Design touch screen. It can be surface-mounted on a wall, rear panel-mount, desk-mount, and the compact size at 7” can be placed almost anywhere at your home. This Panel PC can be easily being the center of attraction where you decide to place it; the design is classic and stylish to complement your home interior.

    AFL3-W07A_eDM-01



    Features

    Quiet Operation, Energy Efficiency- Fanless Design

    The AFL3-W07A-BT is built to be an energy efficient and quiet operation PC. The acoustic noise the computers/panel pc produces can be more than a mere irritant. We understand your need and take a look at what we can do to restore peace. The low-power fanless system and high-efficiency Intel®N2807 processor draw less power that helps to reduce the energy cost. The heat-sink is designed to move the heat quickly and silently. Do you still suffering from PC noise? AFL3-W07A-BT will provide you a quiet living environment as luxury.

    AFL3-W07A_eDM-13

    Free-up your space, Built-in Speaker

    No more hassle of having a set of separate speakers with its wire running all over the place, and save you from the mess. The AFL3-W07A-BT is a Panel PC with built in 2-W speaker, and it’s excellent for a casual listening at home. You can set your own alerts and reminders to be notified of any activity you care about, and keep you aware of what's going on by playing convenient notification sound.

    AFL3-W07A_eDM-14

    Easy Installation- Sliding Cover

    There are only 2 screws needed for assembling rear cover, which make it easy to access and replace storage, RAM, and PCIe Mini card. To effectively increase the capacity, you don't need to buy new one or trade-off as with everything else in life. The actual physical cleanup, as in dusting, will allow the machines to literally breathe easier, and in turn prolong the life of the system. The screw-less design reduces the Self-Maintenance burden, and you can easily wipe the dust off.

    Enhance your touch experience- Brilliant Touch Screen

    The AFL3-W07A-BT has the best quality Industrial Touchscreen – EETI Touch IC. You can slide your fingers easily on the slippery surface, and the touchscreen is tracking with relatively accuracy. It supports multi-finger operation and advanced gestures plus zoom in/out. Compared with a standard desktop PC, IEI Industrial Touchscreen is a highly rugged piece of equipment. It's very durable, waterproof enclosures to perform capably in all kinds of different applications.



    Protect Rating up to IP65- Waterproof Front Panel

    The AFL3-W07A-BT has a waterproof (IP65) front panel. Even though the home itself is a fairly benign environment in many ways, the actual environment can be harsh with vibration, moisture, dirt, and other degrading conditions. The Waterproof Front Panel protects from wash-down, splashes, oil grease, and physical impacts. **IP65 – This indicates that the product is protected from water splashing and low pressure water jets from all directions.

    Software Support- Linux & Windows

    The AFL3-W07A-BT is an Intel Platform, which support Linux and Windows. This Panel PC can be easily configured for most application, and you can install the desired OS for operation.
    (Windows 7 / 8 / 8.1 / 10 - 32bit / 64bit)
    (Linux Kernel 3.16.4 or above ) )


    Specifications

    Model AFL3-W07A-BT
    Monitor 7" LCD
    Touch Projected capacitive type
    CPU Intel® Celeron® N2807 (dual core, 1.58 GHz)
    RAM 2GB DDR3L onboard RAM
    Storage mSATA
    Wi-Fi IEEE 802.11a/b/g/n/ac

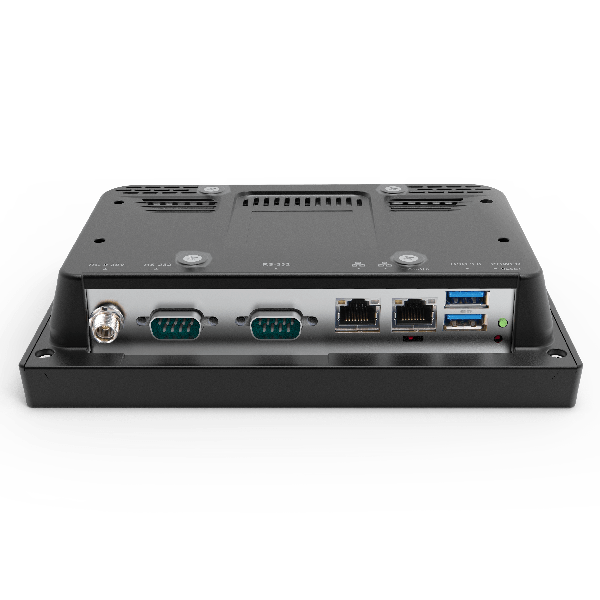

    I/O Ports & Switch 2 x RS-232 COM port (DB-9 connector)
    2 x USB 3.0
    2 x GbE LAN
    1 x Power switch
    1 x Reset button
    1 x AT/ATX switch
    1 x 9-30V Lockable power jack
    Audio AMP 2W (internal speaker, left channel output)
    Thermal Solution Fanless
    Color Black C
    Supported OS Windows 7 / 8 / 8.1 / 10 - 32bit/64bit
    Linux Kernel 3.16.4 or above
    Front Panel Construction PC + ABS
    Operating Temperature
    (°C) (Ambient with air flow)    		 -20°C ~ 70°C
    Humidity 10% to 95% (non-condensing)
    IP Level IP 65 compliant front panel
    Dimensions (WxHxD) 191 mm x 127 mm x 43mm
    Mounting Panel, Wall, Stand, Arm, Rack
    VESA 75mm x 75mm
    Power Consumption 12V DC / 36W
    Weight 730g

    ＊Please visit IEI official website to download the driver and user manual of the AFL3-W07A-BT panel PC.



  • Specifications

    • Hardware Spec.

      Spec Item Description
      Communication
      Wi-Fi IEEE 802.11a/b/g/n/ac
      Dimensions
      Dimensions 191 x 127 x 43
      Environment
      Operating Temperature -20°C~50°C
      Storage Temperature -20°C~60°C
      I/O Interface
      I/O Ports and Switches 2 x RS-232 COM port (DB-9 connector)
      2 x USB 3.0
      2 x GbE LAN
      1 x Power switch
      1 x Reset button
      1 x AT/ATX switch
      1 x 9-30V Lockable power jack
      RAM 2GB DDR3L onboard RAM/4GB DDR3L onboard RAM
      LCD
      Backlight MTBF 20000 (LED backlight panel)
      Brightness (cd/m2) 500
      Contrast Ratio 700:1
      LCD Color 16.2M
      Pixel Pitch (mm) 0.0635 (H) x 0.1905 (V)
      Resolution 1024 x 600
      Size 7"
      Viewing Angle (H-V) 150º/145º
      Other Features
      Camera N/A
      Microphone N/A
      Power
      Power Requirement 9~30 VDC
      Storage
      Storage mSATA
      System
      CPU Intel® Celeron® N2807 (dual core, 1.58 GHz)
      Touch
      Touch Controller EETI EXC3160
      Touch Screen projected capacitive type
      Weight
      Weight 0.73Kg
      I/O Interface
      I/O Interface 2 x RS-232(COM port (DB-9 connector))
      1 x Reset Button
      1 x Power Switch
      2 x LAN
      1 x AT/ATX switch
      2 x USB 3.0
      1 x DC Input Jack(9-30V Lockable power jack)

    • Ordering Info.

      Item No. Description
      AFL3-W07A-BT-N1/PC/2G-R13 7" 500cd/m2 1024x600 HD fanless panel PC with Intel Celeron N2807 dual core 1.58 GHz, 802.11a/b/g/n/ac wireless module, projected capacitive touch screen, on-board 2GB DDR3L RAM , with AG, R13
      AFL3-W07A-BT-N1/PC/4G-R13 7" 500cd/m2 1024x600 HD fanless panel PC with Intel Celeron N2807 dual core 1.58 GHz, 802.11a/b/g/n/ac wireless module, projected capacitive touch screen, on-board 4GB DDR3L RAM , with AG, R13

    • Package Contents

      • 10 x Screw Pack M2

      • 1 x Power Adpater

      • 1 x Touch Pen

      • 1 x RJ45 to RS-232 Transfer Cable
