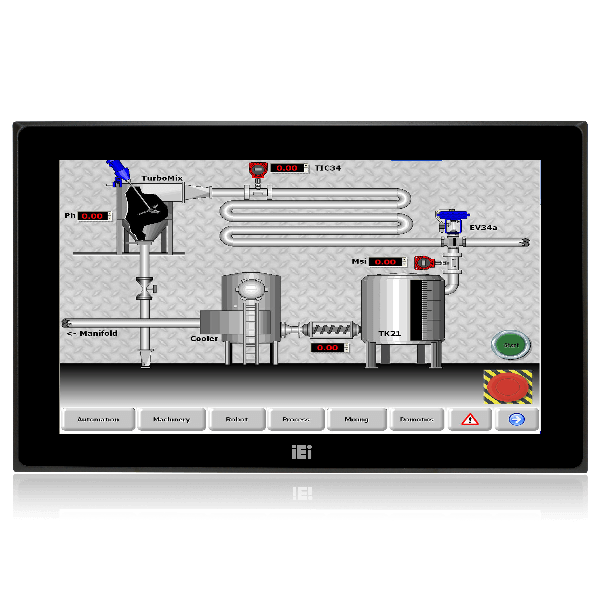

Overview● Robust IP65 aluminum front bezel● Aesthetic ultra-thin bezel for seamless panel mount installation● DC input● DP/VGA flexible video input solution● PCAP AG coating touch● Wide temperature support
IP 65 Waterproof Aluminum Front Panel
IP 65 is the highest dust, water and oil proof standard in ground usage, It absolutely prevents any micro-particles from getting into the system front panel and allows the system to function in harsh environments.
Etching anti-glare, never peel off!
The DM-F series is built with anti-glare touch screen, which has lower reflection compared to normal touch screen. The reflection will reduce from 8% to 1% and it will eliminate the interference of shine and lights on displays and improve the screen clarity.
UV-resistant ensures reliable continuous operation for mission critical applications
● Blocks UV wavelengths less than ≈340nm
● Meets ASTM G154 performance criteria Cycle 1 for 1000 hours
Gamma Correction - Pursuit of Perfection
Gamma correction enables each panel model to follow the specified look-up-table (LUT) in gamma curve doing color adjustment through software encode. In this way, various monitors can display in an unified color by following Gamma 2.2 standard for PC products, ensuring color consistency for multiple monitor applications.
9V~36V Wide Range DC Input
Power requirement varies from applications. DM-F series provides 9V~36V DC input which simplifies system integration through adapter or DC source.
OSD Keypad on Back
In order to keep the front panel simple and clean, the membrane keypad of the DM-F series is located on the rear panel to prevent the possibility to adjust the setting accidentally.
IEI SmartOSD Software OSD for IEI LCD Monitors
IEI SmartOSD is a proprietary On-Screen-Display (OSD) software solution that enables easy remote monitor setting adjustments in Windows environment. IEI SmartOSD delivers excellent performance and provides more flexibility than typical OSD hardware solutions when adjusting a monitor. SmartOSD also allows monitor settings such as brightness, contrast, screen position, size, and color gain to be read and changed over normal video cable (VGA/DVI by project base).
Wide Operating Temperature
Design for outdoor applications, DM-F series support wide operating temperature from -20°C ~ 60°C for 12” to 17” models. 22” and 24” are by project request.
Spec Item Description Display Backlight MTBF(hrs) 50000 Brightness(cd/m2) 400 Contrast Ratio 500:1 LCD Size 15.6” (16:9) Max Resolution 1366 (W) X 768 (H) Environment Humidity 10% to 95% (non-condensing) IP Level IP 65 compliant front panel Operating Temperature -20°C ~ 60°C Storage Temperature -20°C ~ 70°C LCD LCD Color 16.2M Pixel Pitch (mm) 0.252 x 0.252 Viewing Angle (H-V) 170° / 160° Physical Characteristics Cutout Dimensions 379.1 x 232.3 Dimensions (LxWxH) (mm) 400.1 x 253.3 x 52.9 Power Power adapter 9V~36V DC Touch Touch Controller EETI EXC3 series Touch Screen 10-point projected capacitive touch window Weight Weight 4 / 6.5 I/O Interface I/O Interface 1 x DC Input Jack(9~36V (Lockable)) 1 x Display Port 1 x HDMI 1 x Power In(9V-36V terminal block) 1 x USB 2.0(touch) 1 x VGA
Item No. Description DM-FW15A/PC-R10 15.6” 400 cd/m² 1366x768 LCD monitor, Aluminum front panel, Black color, W/ USB PCAP touch screen, 9 ~36V DC input, R10
1 x USB Cable
1 x VGA Cable
