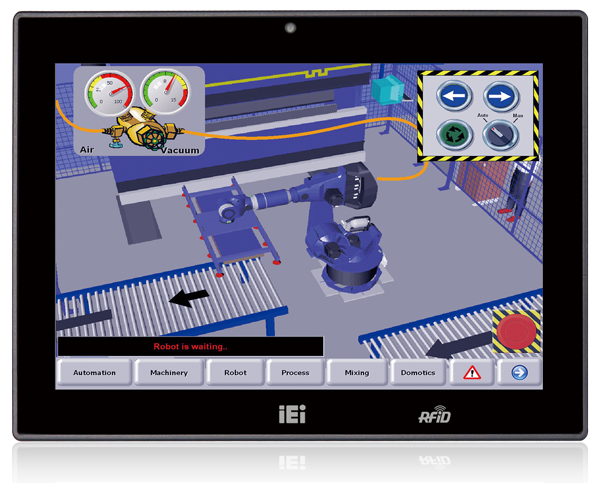

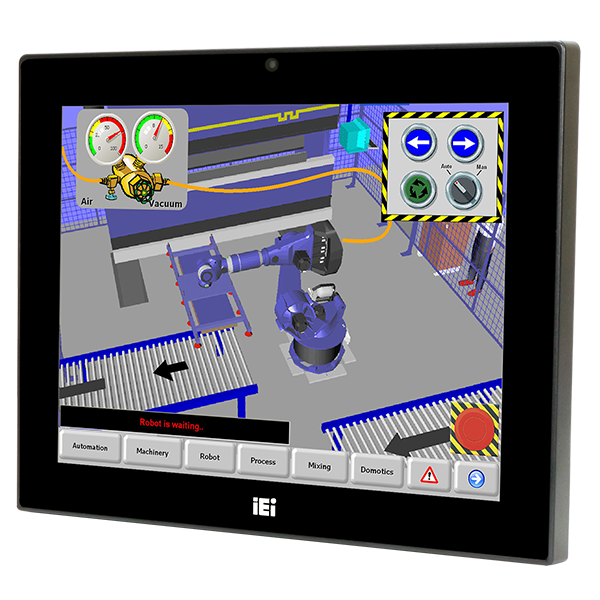

AFL3-12A-BT

Intel® Celeron® J1900 (Quad Core, 2.0 GHz)

  • Overview
    ● W10”~12” light industrial interactive panel PC
    ● 9 V ~ 30 V wide range DC input with lockable DC jack
    ● Selectable AT/ATX power mode
    ● Built-in speakers
    ● One mSATA slot
    ● IP64 compliant front panel
    ● IEI One Key Recovery solution alllows you to create rapid OS backup and recovery (suggested with over 4GB storage capacity)

  • Specifications

    • Hardware Spec.

      Spec Item Description
      Communication
      Wi-Fi IEEE 802.11a/b/g/n/ac
      Dimensions
      Dimensions 303 x 243 x 44
      Environment
      Operating Temperature -20°C~50°C
      Storage Temperature -20°C~60°C
      I/O Interface
      I/O Ports and Switches 1 x RS-232 COM port (RJ-45 connector)
      1 x RS-232/422/485 COM port (DB-9 connector)(RI/5V/12V)
      2 x USB 3.0
      2 x USB 2.0
      2 x RJ-45 for GbE LAN
      1 x Power switch
      1 x Audio port (line-out)
      RAM One 204-pin 2 GB 1333MHz single-channel, 2GB DDR3L SDRAM preinstalled (system max. 8GB)
      LCD
      Backlight MTBF 50000 (LED backlight panel)
      Brightness (cd/m2) 500
      Contrast Ratio 700:1
      LCD Color 16.2M
      Pixel Pitch (mm) 0.240 (H) x 0.240 (V)
      Resolution 1024 x 768
      Size 12.1"
      Viewing Angle (H-V) 160º/160º
      Other Features
      Camera 2-megapixel with low light function
      Microphone digital microphone
      Power
      Power Requirement 9~30 VDC
      Storage
      Storage mSATA
      2.5” SATA 3Gb/s HDD bay
      System
      CPU Intel® Celeron® J1900 (quad core, 2.0 GHz)
      Touch
      Touch Controller PenMount DMC9000/ EETI EXC7200
      Touch Screen 5-wire resistive touch window/ projected capacitive type
      Weight
      Weight 1.92Kg/3.95Kg
      I/O Interface
      I/O Interface 1 x AT/ATX switch
      1 x Audio((line-out))
      1 x DC Input Jack(9-30V lockable power jack)
      2 x LAN(RJ-45 for GbE LAN)
      1 x Power Switch
      1 x RS-232(COM port (RJ-45 connector))
      1 x RS-422/485(COM port (DB-9 connector)(RI/5V/12V))
      1 x Reset Button
      2 x USB 2.0
      2 x USB 3.0

    • Ordering Info.

      Item No. Description
      AFL3-12A-BT-J1/R/4G-R15 12.1”500 cd/m² XGA fanless panel PC with Intel® Celeron® J1900 quad core 2 GHz, 802.11a/b/g/n/ac wireless module, resistive touch screen, 4GB DDR3L RAM , with AG, R15
      AFL3-12A-BT-J1/R/2G-R15 12.1”500 cd/m² XGA fanless panel PC with Intel® Celeron® J1900 quad core 2 GHz, 802.11a/b/g/n/ac wireless module, resistive touch screen, 2GB DDR3L RAM , with AG, R15
      AFL3-12A-BT-J1/PC/4G-R15 12.1”500 cd/m² XGA fanless panel PC with Intel® Celeron® J1900 quad core 2 GHz, 802.11a/b/g/n/ac wireless module, projected capacitive touch screen, 4GB DDR3L RAM , with AG, R15
      AFL3-12A-BT-J1/PC/2G-R15 12.1”500 cd/m² XGA fanless panel PC with Intel® Celeron® J1900 quad core 2 GHz, 802.11a/b/g/n/ac wireless module, projected capacitive touch screen, 2GB DDR3L RAM , with AG, R15

    • Package Contents

      • 10 x Screw Pack M2

      • 1 x Power Adpater

      • 1 x Touch Pen

      • 1 x RJ45 to RS-232 Transfer Cable
