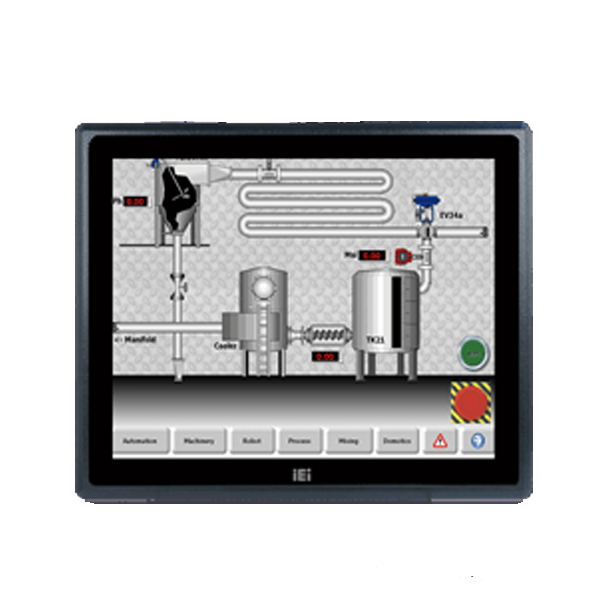

PPC-F19B-BT

19” Fanless Panel PC Intel® Bay Trail Solution

  • Overview

    ● Support IEI iRIS-2400 remote intelligent solution
    ● Intel® Celeron® J1900 quad-core SoC
    ● Robust IP65 aluminum front bezel
    ● Aesthetic ultra-thin bezel for seamless panel mount installation
    ● Projected capacitive multi-touch and resistive single touch options
    ● Dual full-size PCIe Mini card expansion
    ● 9V~36V DC wide range DC input
  • Specifications

    • Hardware Spec.

      Spec Item Description
      Communication
      Wireless802.11 b/g/n (optional)
      Environment
      Humidity10% to 95% (non-condensing)
      IP LevelIP 65 compliant front panel
      Operating Temperature-10°C~50°C (14°F~122°F)
      Safety & EMCCE & FCC Class A certified
      Storage Temperature-20°C~60°C (-4°F~140°F)
      I/O Interface
      Expansion1 x Full-size PCIe Mini slot ( mSATA/PCIe/USB signal)
      1 x Full-size/half-size PCIe Mini slot (PCIe/USB signal)
      FDD Bay1 x 2.5” HDD/SSD drive bay
      I/O Ports and Switches2 x RJ-45 LAN port
      2 x USB 3.0
      2 x USB 2.0
      1 x HDMI
      2 x RS-232
      1 x RS-232/422/485
      1 x VGA
      1 x 9 V~36 V DC jack (4-pin)
      1 x 9 V~36 V DC terminal block
      1 x Line-out
      1 x Power switch
      RAM2 x 204-pin DDR3L SO-DIMM slot (max. 8GB), pre-installed with 2GB
      LCD
      Backlight MTBF50000 hrs
      Brightness (cd/m2)350
      Contrast Ratio1000 : 1
      LCD Color16.7M
      Pixel Pitch (mm)0.294 x 0.294
      Resolution1280 (W) x 1024 (H)
      Size19” (5:4)
      Viewing Angle (H-V)170º / 160º
      Physical Characteristics
      ColorBlack C
      Construction Front PanelAluminum front panel and sheet metal rear cover
      Dimensions (LxWxH) (mm)372.4 x 447.4 x 52.87
      MountingPanel mount, rack mount, VESA 100x100
      Net Weight6.5 kg
      Power
      Power adapterP/N: 63040-010060-110-RS
      60W Power Adapter
      Input: 90 - 264V AC, 50/60Hz
      Output: 12V DC
      Power consumption12V@2.3A (Intel® J1900 CPU with 2GB 1333 MHz DDR3L memory) 12V@3.58A (Intel® J1900 CPU with 2GB 1333 MHz DDR3L memory)
      Power Requirement9 V~36 V DC
      System
      CPUIntel® Celeron® processor J1900 (2M cache, up to 2.42 GHz)
      Drive Bays1 x 2.5” HDD/SSD drive bay
      Touch
      Touch Controller3H,6H
      Touch Screen5-wire resistive type single touch window (Penmount 9000)
      2-point projected capacitive touch window (EETI EXC7200)
      I/O Interface
      I/O Interface1 x Audio(Line-out)
      2 x Power In(9 V~36 V DC jack (4-pin) / 9 V~36 V DC terminal block)
      2 x LAN(Gbe(RJ-45))
      1 x VGA
      1 x HDMI
      2 x USB 3.0
      2 x USB 2.0
      1 x RS-422/485
      2 x RS-232
      1 x Power Switch
    • Ordering Info.

      Item No. Description
      PPC-F19B-BTi-J1/2G/PC-R1019” 350 cd/m2 SXGA Panel PC with Intel® Celeron® Processor J1900, TDP 10W, 2GB RAM*1, support iRIS-2400, black color, 9-36V DC input, projected capacitive touch window, R10
      PPC-F19B-BTi-J1/2G/R-R1019” 350 cd/m2 SXGA Panel PC with Intel® Celeron® Processor J1900, TDP 10W, 2GB RAM*1, support iRIS-2400, black color, 9-36V DC input, resistive touch window, R10
    • Package Contents

      • 1 x PPC-FxxB-BTi Panel PC

      • 1 x User Manual & Driver CD

      • 1 x One Key Recovery CD

      • 1 x Touch Pen

      • 1 x Power Cord

      • 1 x Screw Pack

      • 1 x Power Adapter
