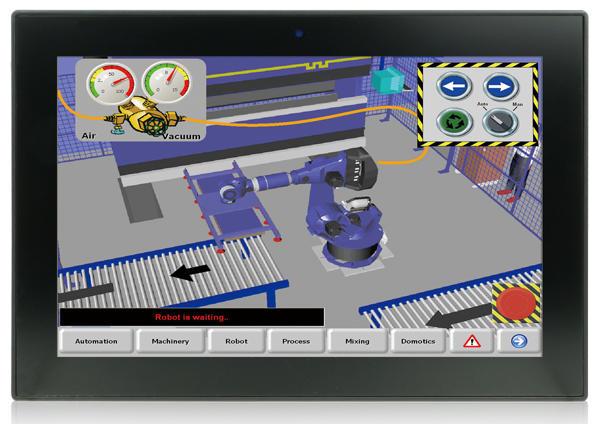

AFL3-W10A-BT

Intel® Celeron® J1900 (Quad Core, 2.0 GHz)

  • Overview

    ● W10” light industrial interactive panel PC
    ● 9 V ~ 30 V wide range DC input with lockable DC jack
    ● Selectable AT/ATX power mode
    ● Built-in speakers
    ● One mSATA slot
    ● IP64 compliant front panel
    ● IEI One Key Recovery solution alllows you to create rapid OS backup and recovery (suggested with over 4GB storage capacity)
  • Specifications

    • Hardware Spec.

      Spec Item Description
      Color
      Color Black C
      Communication
      Wireless IEEE 802.11a/b/g/n/ac
      Dimensions
      Dimensions 262 x 181 x 42 (LxWxH) (mm)
      Environment
      Humidity 10% to 95% (non-condensing)
      IP Level IP 64 compliant front panel
      Operating Temperature -10°C~50°C
      Safety & EMC CE / FCC
      Storage Temperature -20°C~60°C
      I/O Interface
      Audio AMP 2W + 2W (internal speaker)
      Audio Codec ALC892
      Ethernet 2 x PCIe GbE by RTL8111E controller
      I/O Ports and Switches 1 x RS-232 COM port (RJ-45 connector)
      1 x RS-232/422/485 COM port (DB-9 connector)(RI/5V/12V)
      2 x USB 3.0
      2 x USB 2.0
      2 x RJ-45 for GbE LAN
      1 x Power switch
      1 x Audio port (line-out)
      1 x Reset button
      1 x AT/ATX switch
      1 x 9-30V DC lockable power jack
      LCD
      Backlight MTBF 15000 hrs
      Brightness (cd/m2) 350
      Contrast Ratio 800:1
      LCD Color 16.2M
      Pixel Pitch (mm) 0.1695 (H)×0.1695 (V)
      Resolution 1280 x 800 (16:10)
      Size 10.1”
      Viewing Angle (H-V) 170º / 170º
      Other Features
      Audio AMP 2W + 2W (internal speaker)
      Camera 2-megapixel with low light function
      Microphone digital microphone
      OSD Function Software OSD
      System Cooling Fanless
      Physical Characteristics
      Color Black C
      Construction Front Panel PC + ABS Plastic
      Cutout Dimensions 236 x 150 (W x H) (mm)
      Dimensions (LxWxH) (mm) 262 x 181 x 42
      Mounting Panel, Wall, Stand, Arm
      VESA 75mm x 75mm
      Net Weight 1.06 kgs
      Power
      Power consumption 12V@2.3A (Intel® J1900 CPU with 2GB 1333 MHz DDR3L memory)
      Power Requirement 9 V ~ 30 V
      Storage
      Storage mSATA
      System
      Cooling method / System Fan Fanless
      CPU Intel® Celeron® J1900 (quad core, 2.0 GHz)
      Memory Max. 8GB
      On-board Memory One 204-pin 2 GB 1333MHz single-channel, 2GB DDR3L SDRAM pre-installed
      Storage mSATA
      Touch
      Touch Controller EETI EXC7200
      Touch Screen Projected capacitive type
      Weight
      Weight 1.06/2.58 (Net/Gross, kgs)
    • Ordering Info.

      Item No. Description
      AFL3-W10A-BT-J1/PC/2G-R13 10.1” 350cd/m² 1280x800 fanless panel PC with Intel® Celeron® J1900 quad core 2 GHz, 802.11 a/b/g/n/ac wireless module, projected capacitive touch screen, 2GB DDR3L RAM , with AG, R13
    • Package Contents

      • 2 x Round head machine screw

      • 4 x Pan head machine screw

      • 2 x Fix holder

      • 1 x Power cord

      • 1 x Power adapter

      • 1 x RJ-45 to DB-9 COM port transfer cable

      • 1 x Touch pen
