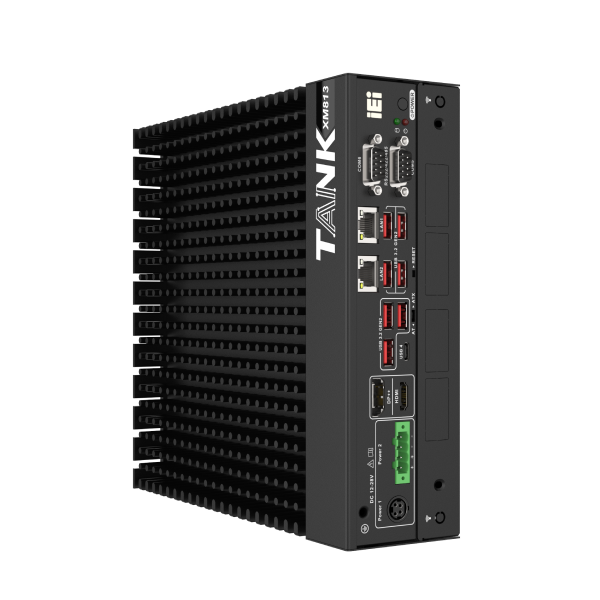

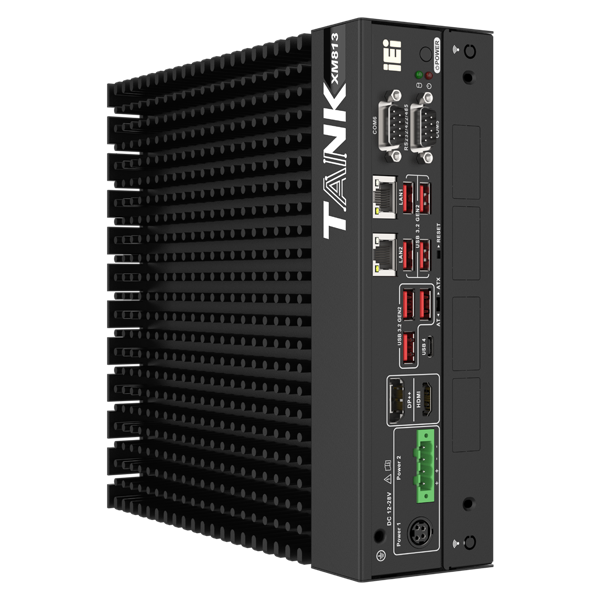

TANK-XM813

High-Performance Intel® Core™ Ultra Processors (Series 2) Fanless Embedded Computer

斜角
IO正面
IO背面

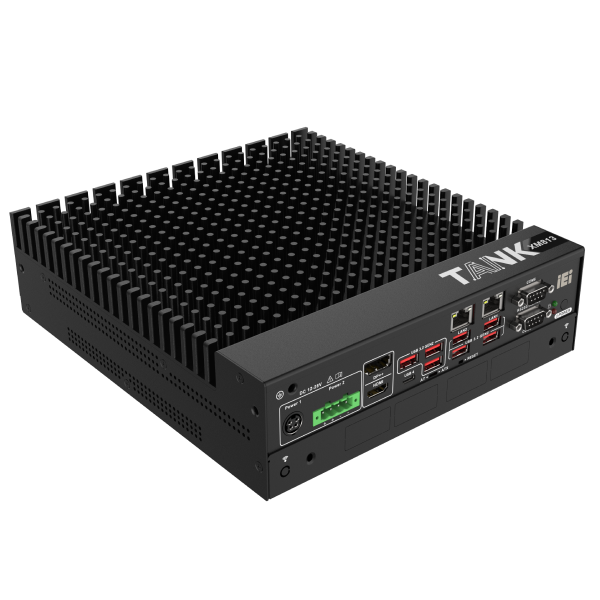

  • 斜角
  • IO正面

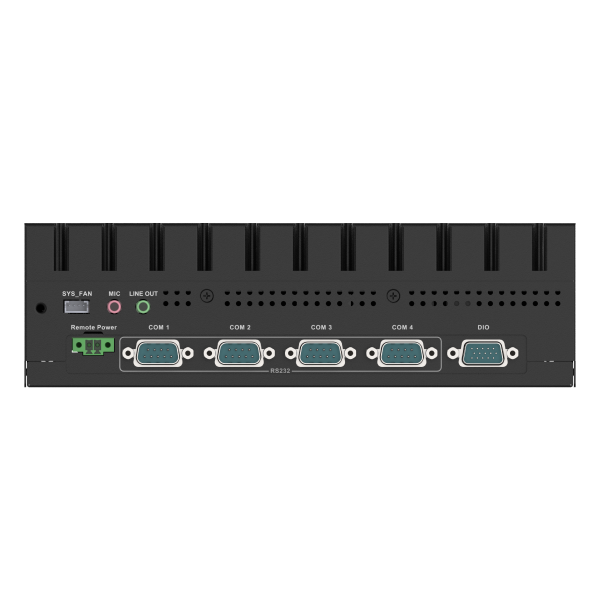

  • IO背面
» Supported CPUs:
LGA1851 socket supports Intel® Core™ Ultra Processors (Series 2)(Arrow Lake -S)(MAX 65W TDP)
» 2 x 2.5GbE ports
» Multiple USB ports and serial ports

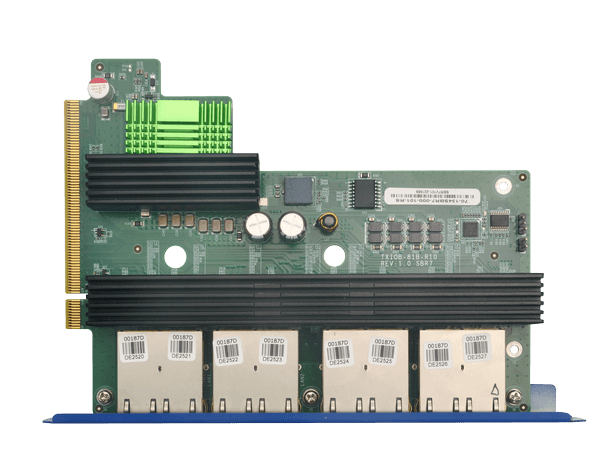

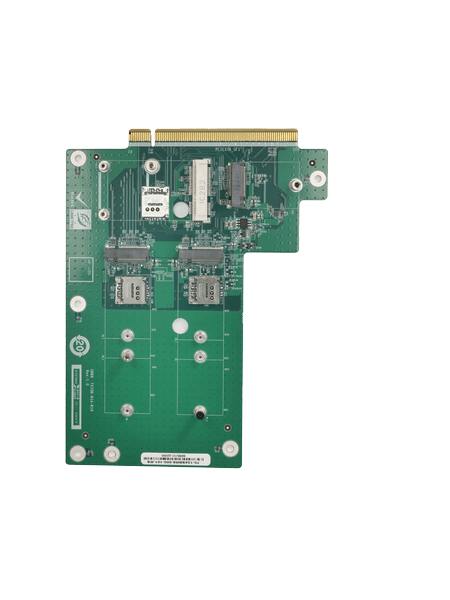

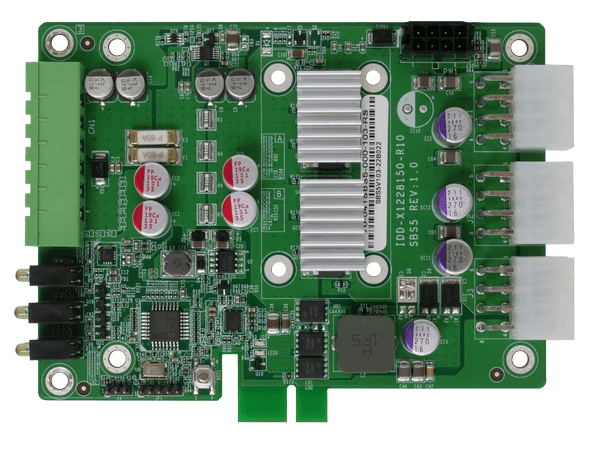

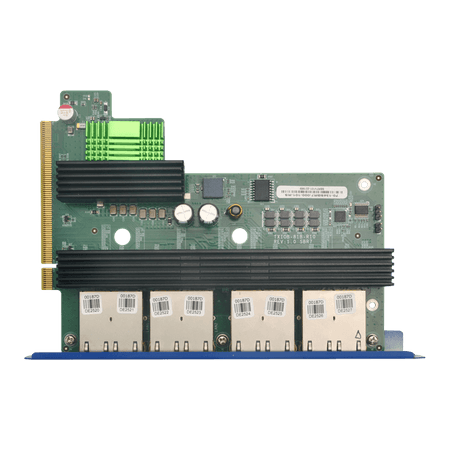

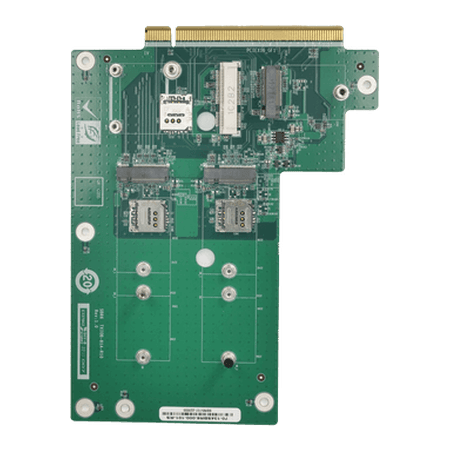

» Multiple internal expansion boards for flexible selection

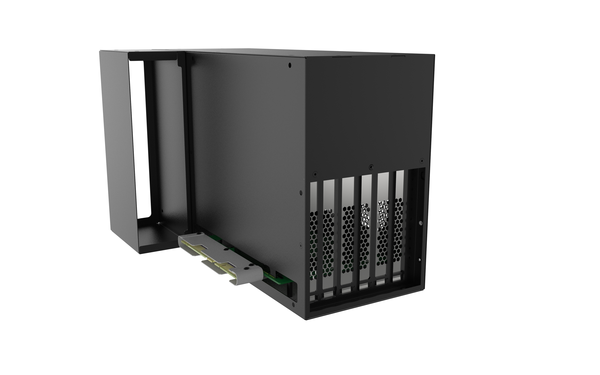

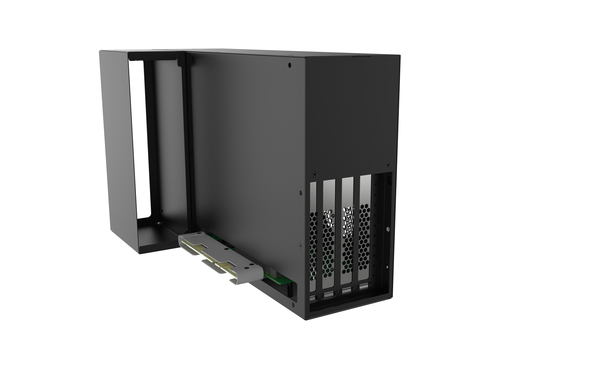

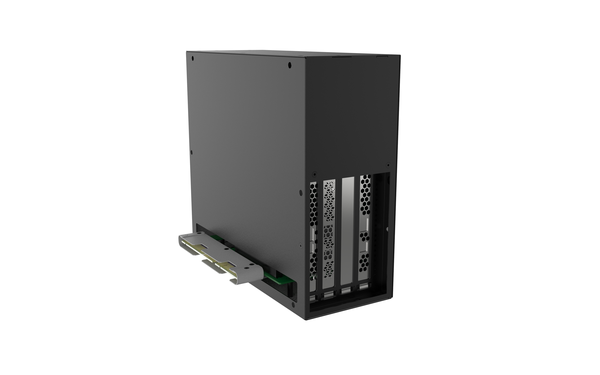

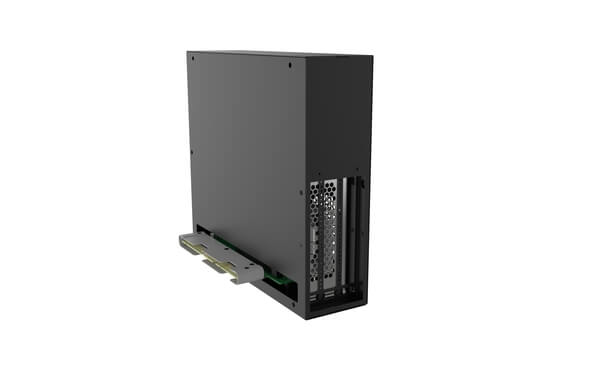

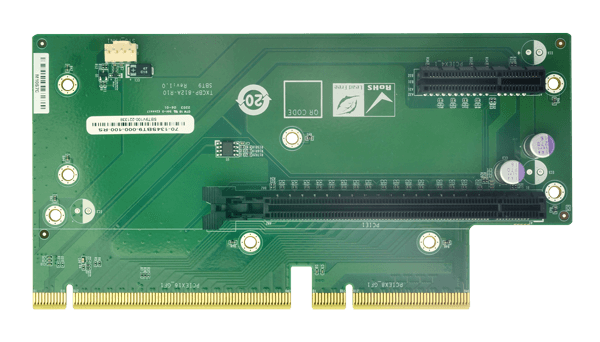

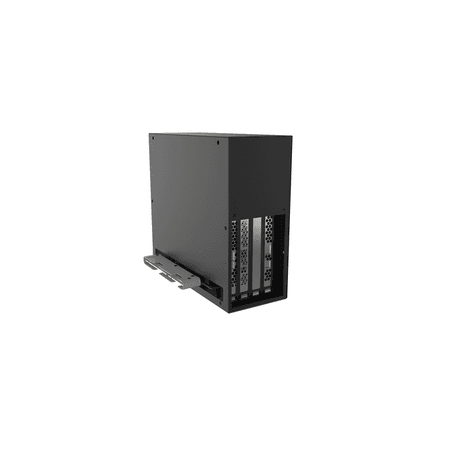

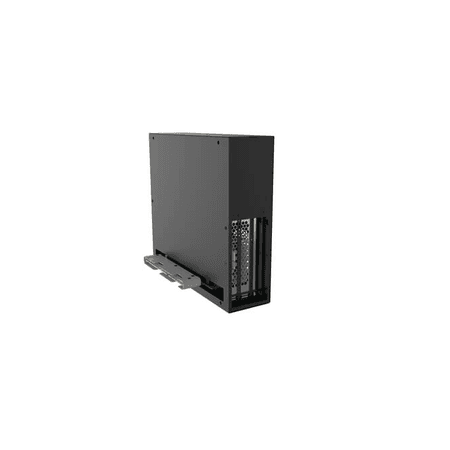

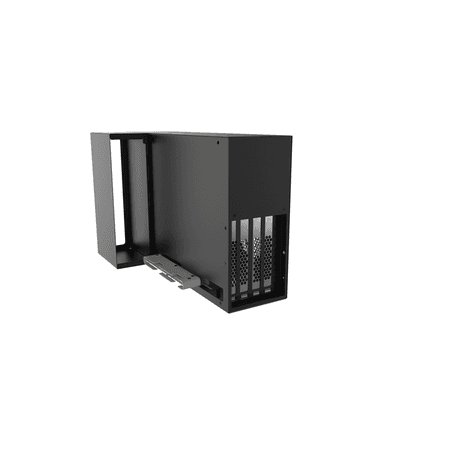

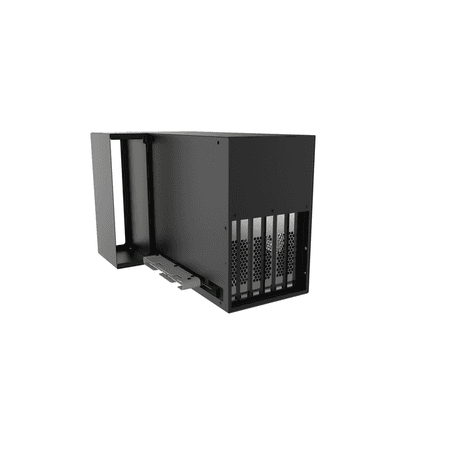

» Various optional backplanes and chassis
» CE/FCC compliant

Specifications

Hardware Spec.

Form factor
SBC Form Factor
  • CPU:
    LGA1851 socket supports Intel® Core™ Ultra Processors (Series 2)(Arrow Lake -S)(MAX 65W TDP)
  • Chipset:
    W880
  • System Memory:
    2 x SO-DIMM DDR5 5600 (16GB pre-installed) (up to 96GB)
  • Power:
    DC Jack: 12 V~28 V DC
    Terminal Block: 12 V~28 V DC
輸出/入介面
I/O Ports
  • USB:
    7 x USB 3.2 Gen2
  • Ethernet:
    1 x 2.5 GbE by Intel® I226LM controller
    1 x 2.5 GbE by Intel® I226-V controller
  • COM Port:
    2 x RS-232/422/485
    4 x RS-232
  • Digital I/O:
    12-bit Digital I/O (6-in/ 6-out)
  • Display:
    1 x HDMI
    1 x DP++
    1 x USB4 (Display+USB 3.2 Gen 2x2)
  • Audio:
    1 x Mic
    1 x Line-out
  • TPM:
    Support Intel PTT

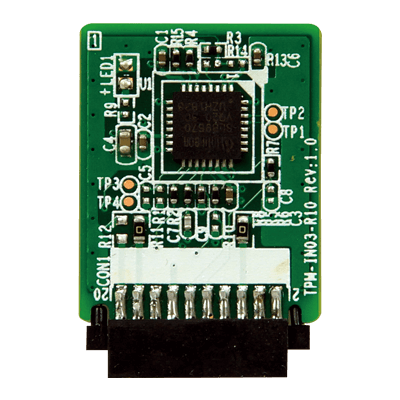

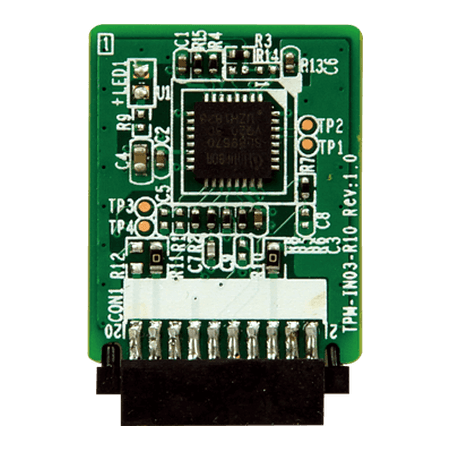

    2x10pin TPM connector
  • Watchdog Timer:
    Programmable 1 ~ 255 sec/min
擴充槽
擴充槽
  • M.2:
    1 x 2280 M-key (PCIe Gen4 x4)

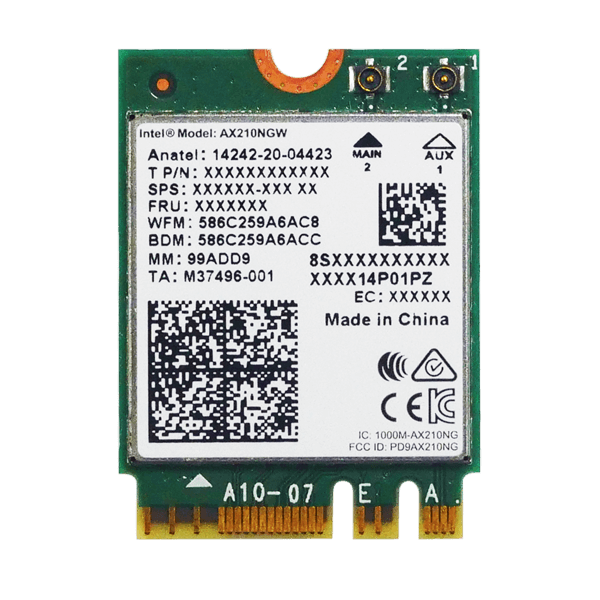

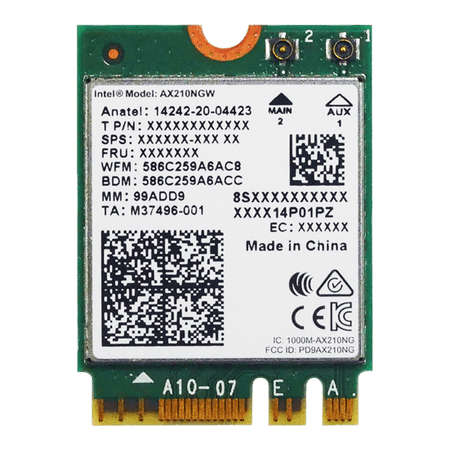

    1 x 2230 A-key (USB+PCIe x1, supports vPRO)

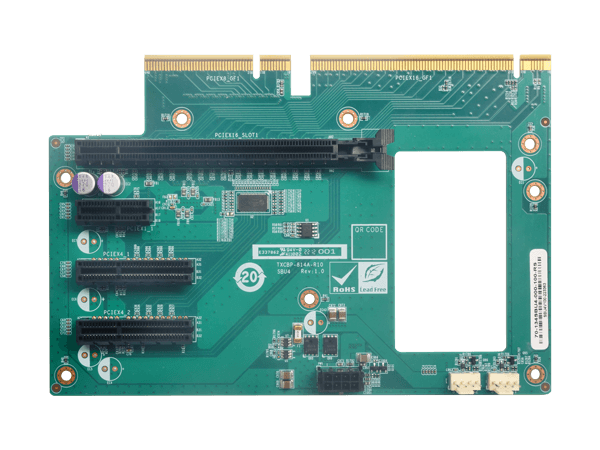

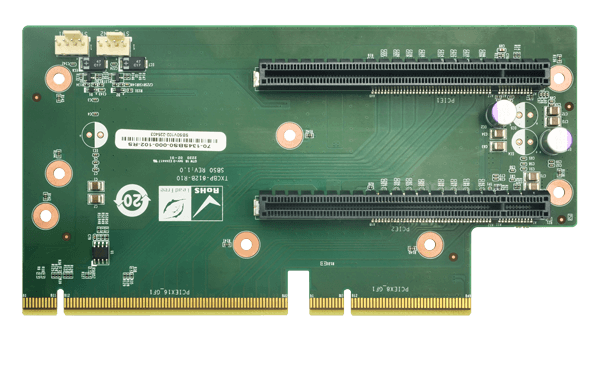

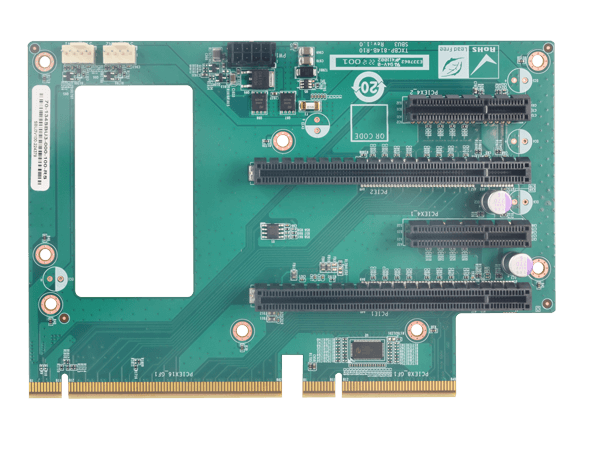

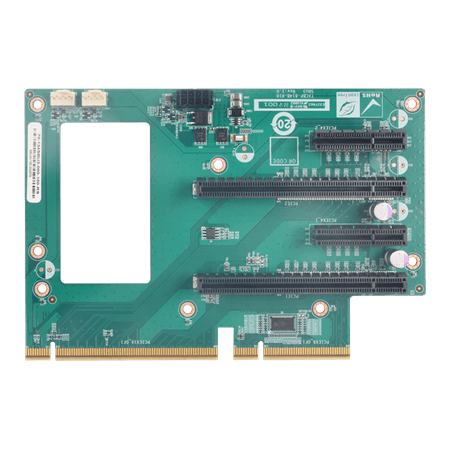

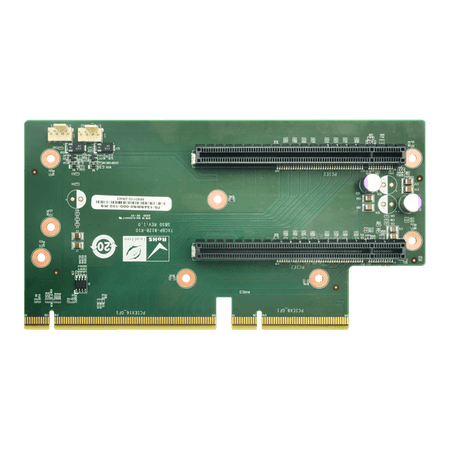

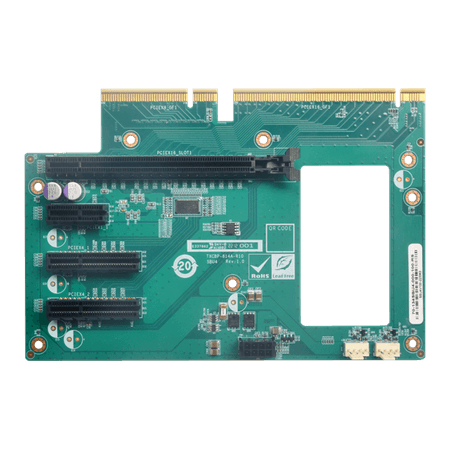

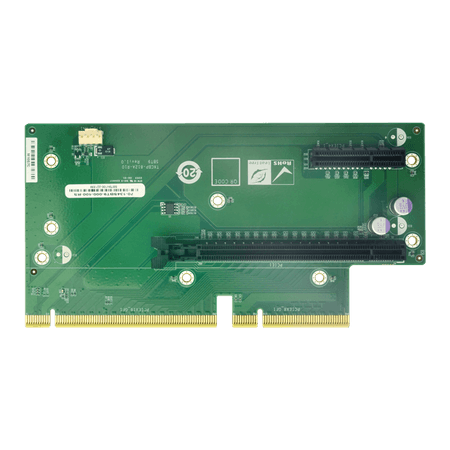

  • Backplane:
    Optional
系統
冷卻方式/系統風扇 Fanless
4-pin external system fan connector
Drive Bays 2 x 2.5” SATA 6Gb/s HDD/SSD bay (RAID 0/1 supported)
指示燈與按鈕
按鈕 1 x Power button
1 x Reset button
1 x AT/ATX switch
指示燈 1 x Power LED (Red)
1 x HDD LED (Green)
Physical Characteristics
Construction Extruded aluminum alloy
Color
Color Black
Dimensions
Dimensions 230.6 x 255 x 68.7
Weight
Weight 3.2/3.6 kg
Environment
Operating Temperature -20°C ~ 60°C (CPU TDP35W & SSD)
-20°C ~ 50°C (CPU TDP65W & SSD)
Humidity 10% ~ 95% non-condensing
Operating Vibration Half-sine wave shock 5G, 11ms, 100 shocks per axis (SSD)
Operating Shock MIL-STD-810G 514.6C-1 (SSD)
Safety & EMC CE/FCC compliant
OS Support
OS Support Microsoft Windows 10 / Windows 11, Linux

Ordering Information

TANK-XM813-U9BD-R10 Ruggedized Fanless Embedded System With Intel® Ultra 9 285 2.5GHz (up to 5.6 GHz, 24-core, TDP 65W), 16GB RAM,1xHDMI,1xDP++, USB4, 12~28V DC and RoHS
TANK-XM813-U9AD-R10 Ruggedized Fanless Embedded System With Intel® Ultra 9 285T 1.4GHz (up to 5.4 GHz, 24-core, TDP 35W), 16GB RAM,1xHDMI,1xDP++, USB4, 12~28V DC and RoHS
TANK-XM813-U7BD-R10 Ruggedized Fanless Embedded System With Intel® Ultra 7 265 2.4GHz (up to 5.3 GHz, 20-core, TDP 65W), 16GB RAM,1xHDMI,1xDP++, USB4, 12~28V DC and RoHS
TANK-XM813-U7AD-R10 Ruggedized Fanless Embedded System With Intel® Ultra 7 265T 1.5GHz (up to 5.3 GHz, 20-core, TDP 35W), 16GB RAM,1xHDMI,1xDP++, USB4, 12~28V DC and RoHS
TANK-XM813-U5BD-R10 Ruggedized Fanless Embedded System With Intel® Ultra 5 225 3.4GHz (up to 4.9GHz, 10-core, TDP 65W), 16GB RAM,1xHDMI,1xDP++, USB4, 12~28V DC and RoHS
TANK-XM813-U5AD-R10 Ruggedized Fanless Embedded System With Intel® Ultra 5 225T 2.5GHz (up to 4.9GHz, 10-core, TDP 35W), 16GB RAM,1xHDMI,1xDP++, USB4, 12~28V DC and RoHS

Package Contents

Package Content

  • 1 x Wall mounting kit

  • 1 x Screw pack

  • 2 x Terminal block
