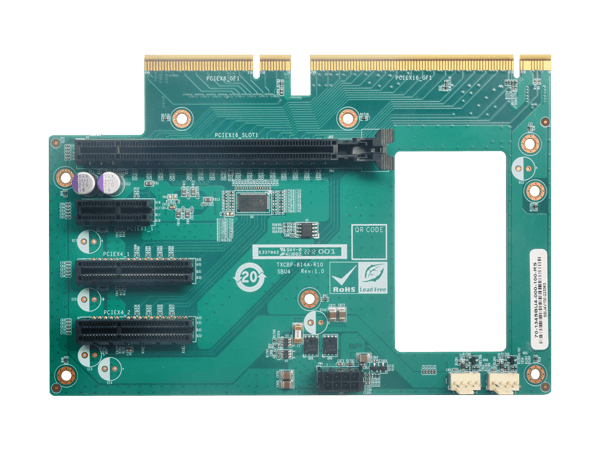

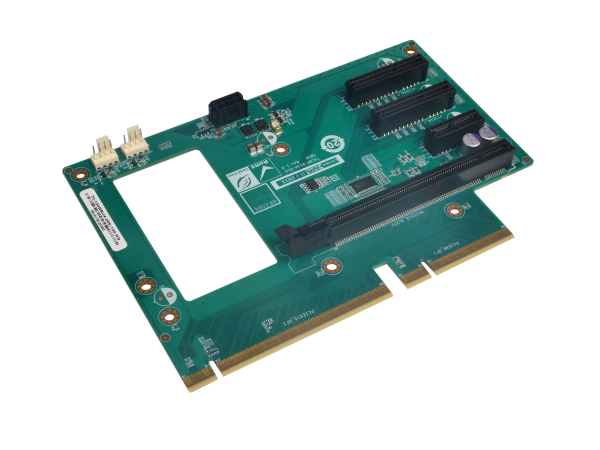

» 4-slot backplane for TANK-XM81 series expansion chassis
» One PCIe Gen 4 x16 & one PCIe Gen 3 x1 & two PCIe Gen 3 x4 slot
» Two system fan connectors
» Compatible chassis: TXC-XM81-4S-R10
» Support an additional power supply board
Hardware Spec.
| Form Factor | |
|---|---|
| Form Factor | TANK-XM81 series customization |
| System | |
|---|---|
| Cooling method / System Fan | 2 x 4-pin (1x4) |
| 外觀 | |
|---|---|
| Mounting | TXC-XM81-4S TXC-XM81-G1 |
| 外觀尺寸（mm） | 175.8 x 119 |
| I/O Interface | |
|---|---|
| Expansion | 1 x PCIe x16 : Gen 4 |
| 2 x PCIe x4 : Gen 3 | |
| 1 x PCIe x1 : Gen 3 | |
| 電源 | |
|---|---|
| Power Supply | 1 x 8-pin (2x4) |
