» Supported CPUs:
AMD Ryzen™ 7000/8000 Series AM5 Processor
AMD Ryzen™ 7 8700G 4.2GHz (up to 5.1GHz, 8-core, 65W)
AMD Ryzen™ 5 8600G 4.3GHz (up to 5.0GHz, 6-core, 65W)
» 2 x 2.5GbE ports
» Multiple USB ports and serial ports
» Multiple internal expansion boards for flexible selection
» Various optional backplanes and chassis
» CE/FCC compliant
Hardware Spec.
| Form factor | |
|---|---|
| SBC Form Factor |
● CPU: AMD Ryzen™ 7000/8000 Series AM5 Processor AMD Ryzen™ 7 8700G 4.2GHz (up to 5.1GHz, 8-core, 65W) AMD Ryzen™ 5 8600G 4.3GHz (up to 5.0GHz, 6-core, 65W) ● Chipset: AMD B650 ● System Memory: 2 x SO-DIMM DDR5 5200 (8GB pre-installed) (up to 96GB) ● Power: DC Jack: 12 V~28 V DC Terminal Block: 12 V~28 V DC Consumption: 12V @ 6.95A (AMD Ryzen™ 7 8700G with 8GB memory) |
| 輸出/入介面 | |
| I/O Ports |
● USB: 6 x USB 3.2 Gen2 ● Ethernet: 2 x RJ-45: 2.5 GbE by Intel® I226V (colay I226LM) ● COM Port: 2 x RS-232/422/485 4 x RS-232 ● Digital I/O: 12-bit Digital I/O (6-in/ 6-out) ● Display: 1 x HDMI 1 x DP++ 2 x USB Type-C (Display + USB 3.2 Gen2) ● Audio: 1 x Mic 1 x Line-out ● TPM: 1 x 20pin TPM connector (Optional TPM-IN03 module) ● Watchdog Timer: Programmable 1 ~ 255 sec/min |
| 擴充槽 | |
| 擴充槽 |
● M.2: 1 x 2280 M-key (PCIe Gen4 x4) 1 x 2230 A-key (USB 2.0 + PCIe Gen3 x1) ● Backplane: Optional |
| 系統 | |
| 冷卻方式/系統風扇 |
Fanless 4-pin external system fan connector |
| Drive Bays | 2 x 2.5” SATA 6Gb/s HDD/SSD bay (RAID 0/1 supported) |
| 指示燈與按鈕 | |
| 按鈕 |
1 x Power button 1 x Reset button 1 x AT/ATX switch |
| 指示燈 |
1 x Power LED (green) 1 x HDD LED (yellow) |
| Physical Characteristics | |
| Construction | Extruded aluminum alloy |
| Color | |
| Color | Black |
| Dimensions | |
| Dimensions | 230.6 x 255 x 68.7 |
| Weight | |
| Weight | 3.18/5 kg |
| Environment | |
| Operating Temperature |
-20°C ~ 60°C (CPU TDP50W & SSD) -20°C ~ 50°C (CPU TDP65W & SSD) |
| Humidity | 10% ~ 95% non-condensing |
| Operating Vibration | IEC68-2-27 half-sine, 5G, 11ms, 100 shocks (With SSD) |
| Operating Shock | Random Vibration Mode, MIL-STD-810H 514.8C-I (With SSD) |
| Safety & EMC | CE/FCC compliant |
| OS Compatible | |
| OS Compatible | Microsoft Windows 10 / Windows 11, Linux |
Ordering Information

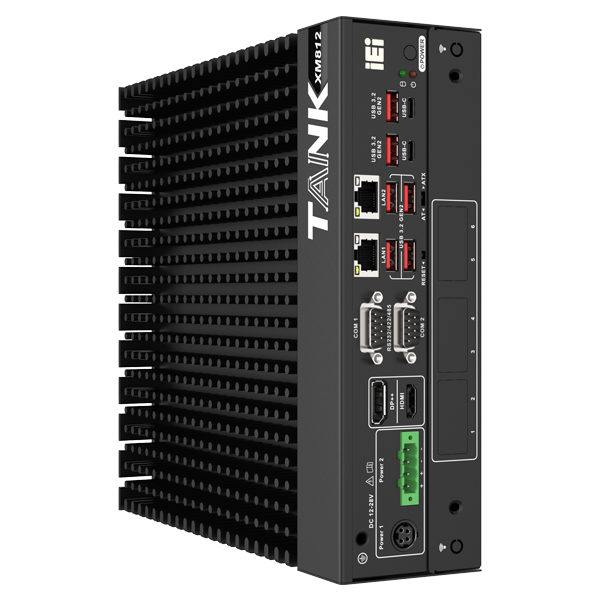

| TANK-XM812-87AC-R10 | Ruggedized Fanless embedded system with AMD Ryzen™ 5 8700G, (up to 5.1 GHz, 8 Core, TDP 65W), 8GB DDR5 pre-installed memory, PCIe x8/PCIe x4/PCIe x1, HDMI/DP/USB4, 12~28V DC, RoHS |
|---|---|
| TANK-XM812-85AC-R10 | Ruggedized Fanless embedded system with AMD Ryzen™ 5 8600G, (up to 5.0 GHz, 6 Core, TDP 65W), 8GB DDR5 pre-installed memory, PCIe x8/PCIe x4/PCIe x1, HDMI/DP/USB4, 12~28V DC, RoHS |
