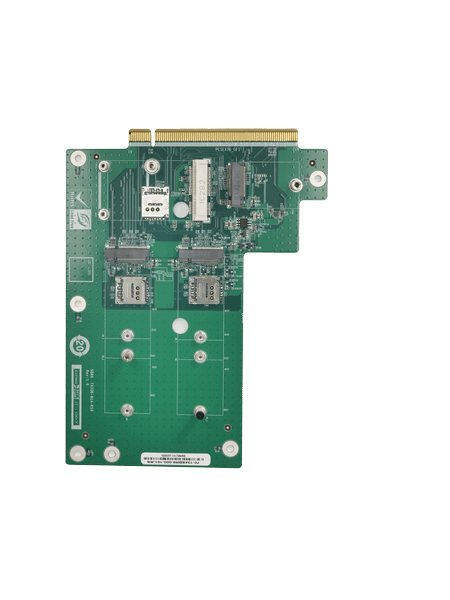

TXIOB-XM81-A

Expansion IO Board Module

» Support Full-Size PCIe Mini
» Support M.2 A Key 2230
» Support M.2 B Key 3042/52/80 with SIM Slot

Hardware Spec.

Form Factor
Form Factor TANK-XM81 series customization 8 x PCI Express® x1
Physical Characteristics
Dimensions (LxWxH) (mm) 170.94 x 131.22
I/O Interface
Expansion 1 x PCIe x1 : Full-Size Mini PCIe (PCIe x1 & USB2.0) with SIM Slot
3 x M.2(NGFF) :
1 x A Key 2230 (PCIe x1 & USB2.0)
1 x B Key (M.2_B1) 3042/52/80 (PCIe x1 & USB3.2*) with SIM Slot
1 x B Key (M.2_B2) 3042/52/80 (PCIe x2**) with SIM Slot
Note:
* The USB 3.2 signal of the M.2_B1 connector is not supported in the TANK-XM810.
**The default signal of the M.2_B2 connector is PCIe x1. To configure as PCIe x2, please consult with IEI.
Environment
Operating Temperature 0°C ~ 60°C
Humidity 5% ~ 95%, non-condensing
Certifications
Safety & EMC CE/FCC compliant

Ordering Information

TXIOB-XM81-A-R10 Tank 81 Series Expansion IO Board module,2xM.2 B Key,1xM.2 A Key,1xMiniPCIe

Package Contents

Package Content
  • 1 x Screw pack
