PulM-2P1M

Two Mini-PCIe and One M.2 Expansion Card Support the Wi-Fi or LTE Module, RoHS

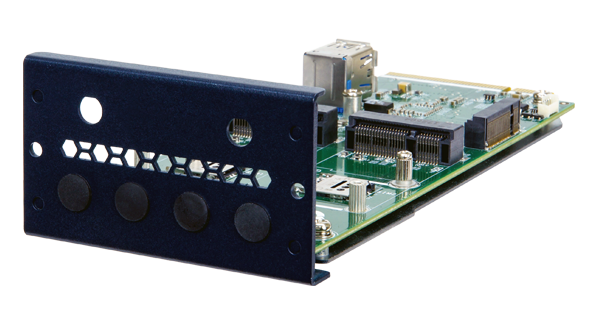

IEI PulM-2P1M Network Module
  • IEI PulM-2P1M Network Module
» Supports 2 x PCIe mini and 1 x 2230/2242 M.2 B key
» Mini PCIe and M.2 with SIM card slots
» 2 PCIe 3.0 x4
» RoHS compliant

Consolidate Your Wireless Network Connectivity


IEI PulM-2P1M is designed with two PCIe Mini slots and one M.2 B-key for supporting extra Wi-Fi or LTE modules. It can enhance wireless network connectivity and provide multi-telecom signal via one single network appliance.

  • Supports two PCIe Mini slots and one M.2 2230/2242 B–key slot

  • On-board SIM card slots for PCIe Mini/M.2 network modules

  • 2 PCIe 3.0 x4

Block Diagram


photo description

Hardware Installation


photo description

Hardware Spec.

Physical Characteristics
Dimensions (LxWxH) (mm) 165.50 (L) x 77.8 (W) x 44.2 (H)
Storage
Storage M.2(NGFF) : 1 x M.2(NGFF) 3042/2260 M.2 B key (PCIe/USB2.0(for LTE)/USB3.0)
I/O Interface
Expansion PCI Slot : 2 x mPCIe (PCIe/USB2.0)
Wireless
SIM Slot 4 x SIM card slot
Environment
Operating Temperature 0 ~ 40 °C
Humidity 5% ~ 90% RH, Non-condensing
Card Slot Interface
PCIe 2 PCIe 3.0 x4
Card Features
Controller Chip ASM1812 (PCIe Gen2x4 )
FL1100EX (PCI-E To USB 3.0 (4 Port))

Ordering Information

PulM-2P1M-R10 Two Mini-PCIe and One M.2 Expansion Card Support the Wi-Fi or LTE Module.

Package Contents

Package Content
  • 1 x PulM-2P1M-R10

  • 1 x L-shaped T10 PulM Wrench

  • 2 x Torx Screws

  • 1 x QIG
