Higher Core Counts Network Solution for 5G MEC / O-RAN and AI

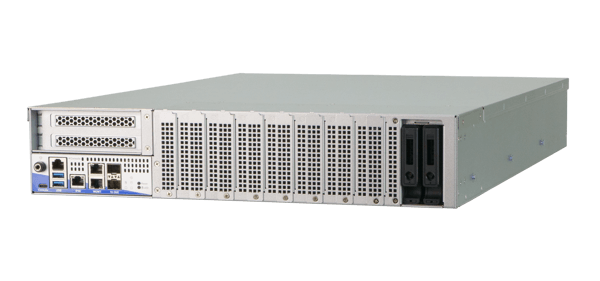

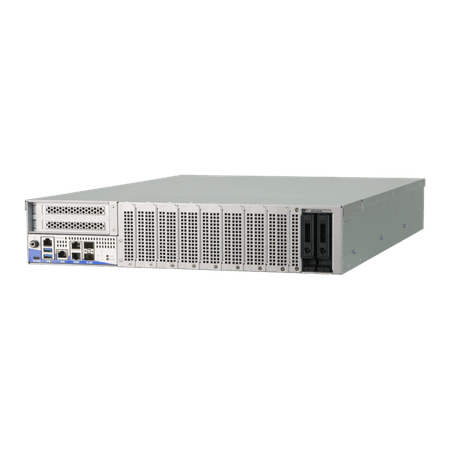

The PUZZLE-IN005, a 2U rackmount higher core counts network appliance, designed with two 3rd Gen. Intel® Xeon® Scalable processor platform in 10nm technology to offer unlimited computing performance and well throughput. It features extremely high speed experience with latest PCIe Gen4 to provide up to 200GbE data transmission speed, and Intel® QuickAssist Technology (Intel® QAT) to boost encryption and compression performance and maximize CPU utilization. Based on these brilliant features, PUZZLE-IN005 is perfectly meet the demand for Cybersecurity, Telecom, 5G MEC and AI.
3rd Gen. Intel® Xeon Scalable Processor
Outstanding HPC and AI Experience
The PUZZLE-IN005, a 2U rackmount higher core counts network appliance, designed with dual 3rd Gen. Intel® Xeon® Scalable processor platform in 10nm technology to offer unlimited computing performance and well throughput. It features extremely high speed experience with latest PCIe Gen4 to provide up to 200GbE data transmission speed, and Intel® QuickAssist Technology (Intel® QAT) to boost encryption and compression performance and maximize CPU utilization. Based on these brilliant features, PUZZLE-IN005 is perfectly meet the demand for Cybersecurity, Telecom, 5G MEC and AI.
Intel® QuickAssist Technology
Boost Encryption and Compression Performance
Intel® QuickAssist Technology integrates hardware acceleration of compute intensive workloads. It can maximize CPU utilization and achieve well improvement, which includes symmetric encryption and authentication, asymmetric encryption, digital signatures, RSA, DH, ECC, and lossless data compression.
PCI Express 4.0 Ready
Double Bandwidth, Double Speed
To achieve the bandwidth requirements of big data/networking /AIoT applications, the PUZZLE-IN005 supports PCIe 4.0 to either increase the lane width or speed. It has doubled the throughput to 16GT/s, compared to 8GT/s for PCIe 3.0, delivering higher performance and low latency.
Smarter Fan Operation 4+1
Overheating? It’s Not a Problem!
The PUZZLE-IN005 features smart fan operation which uses 4+1 hot-swappable fans to provide strong cooling convection and high reliability for uninterrupted service. Moreover, users are able to manage the fan system and noise production by defining the fan trigger settings.
Scalable Expansion Capability
Diverse Selections, Different Combinations
The PUZZLE-IN005 is designed with eight network module expansion slots to add on different functions, bandwidths or even SSD for more storage needs. In addition, it has one PCIe x8 slot to adopt AI accelerating card or add-on cards for improving performance and efficiency.
High Speed Storage with U.2 NVMe
Low Latency, Low Power
The U.2 SSD interface features high-speed, low-latency and low-power NVMe standard protocol. PUZZLE-IN005 support PCIe 4.0 channel which provides data transmission speed is up to 7000MB/s while PCIe 3.0 U.2 is 3200MB/s, and SATA is 500MB/s. It is 2 times faster than PCIe 3.0 U.2 and 10 times faster than SATA.
Empowered Hardware Architecture
Flexible, Reliable and Durable
1200W Redundant Power Supply
Hot-swappable redundant power supply to ensure maximum system uptime.
20 x R-DIMM/LR-DIMM DDR4
4+1 Hot-swappable System Fan
Standard PCIe Slots
PUZZLE-IN005 support one PCIe Gen4 x8 FHHL PCIe card
2 x LGA4189 ICE Lake-SP CPU
2 x M.2 PCIe Gen3 x4
IEI PulM Network Module Slot
IEI PulM Network Module slot support 8 lanes of PCIe Gen4 signal form CPU. The PCIe lanes could be configured to one PCIe x8, two PCIe x4
Support smart NIC via PulM Network Module
Four 2.5” SSD/HDD Bays
Support U.2 nVMe & SATA
Support intel VROC
2 x Console
1 x MGMT port
1 x IPMI LAN
2 x USB 3.2 Gen1
SD-WAN can reduce your WAN costs by up to 90 percent because it supplements or replaces dedicated private WAN networks, which usually are MPLS, with regular broadband connectivity. By using this, enterprises can get the flexibility and cost savings of SD-WAN and at the same time minimize the headache of managing the infrastructure and connectivity. Moreover, the traffic can be automatically and dynamically transferred based on network status, security, and service quality requirements.
5G MEC Solution
5G MEC is a network solution to providing IT service and telecommunication network at the edge. The PUZZLE-IN005 brings services closer to users, and provides ultra-low latency, high bandwidth, virtualization application and reliable network solution.
5G O-RAN Solution
An Open Radio Access Network (O-RAN) is a concept based on interoperability and standardization of RAN elements. Open RAN is a totally disaggregated approach to deploying mobile fronthaul and midhaul networks. It provides new avenues for RAN customization and flexibility by developing different parts of the network function virtualization.
AI Ready Solution
With high computing capability and bandwidth, the PUZZLE-IN005 is deal for networking, AI training and inference service. It is equipped with one PCIe x 8 slot to support various graphic cards, such as Intel® VPU acceleration cards, Google TPU cards and NVIDIA cards to offer faster and higher computing performance. Moreover, it is compliant with OpenNESS which can enable an easy-to-use software platform for edge computing and smoothly move applications from cloud to network or on-premise edge to bring your AI insights into business in AIoT markets.
|Form Factor||2U Rackmount|
|CPU||Intel® Ice-Lake LGA-4189 Xeon® Scalable Processor|
|Memory||20 x DDR4 3200MHz ECC R-DIMM / LR-DIMM|
|Memory Max.||1280GB (20 x 64GB)|
|Cooling method / System Fan||Active Fan|
|Dimensions (LxWxH) (mm)||450 x 650 x 88 mm|
|Storage||4 x 2.5” SSD/HDD Bay : Support nVMe (PCIe gen4 x4) & SATA 3.0 (6Gbps)|
|2 x M.2(NGFF) : Support nVMe (PCIe gen3 x4)|
|Display Output||1 x VGA|
|Ethernet||2 x LAN|
|I/O Interface||2 x External RS-232 : Console ports : 1 x RJ45, 1 x USB typeC|
|2 x External USB 3.2 Gen1x1|
|1 x Internal USB 2.0|
|Expansion||9 x PCIe x8 : 8 x PulM Slots, 1 x standard PCIe expansion|
|IPMI||1 x AST 2400|
|TPM||1 x TPM 2.0 pin header|
|Power Supply||Redundant Power 1200W, 90V~264V AC|
|Operating Temperature||0 ~ 40 °C (32 ~ 104 °F)|
|Storage Temperature||-10°C ~ 50°C|
|Humidity||Relative humidity: 5%~90% non-condensing|
|Safety & EMC||CE / FCC / RoHS|
Linux 18.04 (CentOS, Red Hat, Ubuntu, etc.)
Microsoft Windows server 2019
|PUZZLE-IN005-R-R10||2U Rackmount Network Appliance support dual Intel® ice-lake-SP CPU , twenty DDR4 R-DIMM/LR-DIMM slots, and 2 1GbE(one support BMC control) , eight PulM, one PCIe expansion, Redundant Power, without cooler, RoHS|
