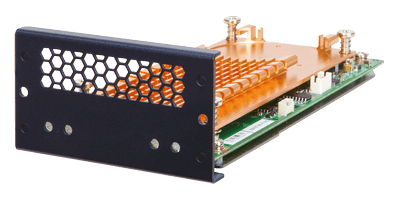

PulM-M2-2S

M.2 PCIe SSD expansion card supports two M.2 2280 PCIe NVMe (3.0 x4) SSDs; two PCIe 3.0 x4 host interface

  • Overview
    • Supports two M.2 2280 PCIe NVMe (3.0 x4) SSDs
    • M.2 SSD temperature is monitored in real time by sensor IC
    • 2 PCIe 3.0 x4
    • LED indicator shows the M.2 status
    • RoHS compliant

  • Features

    Block Diagram

    Hardware Installation

    Install the PulM-M2-2S module into the slot of the PUZZLE series. The Slot A supports 8 lanes from CPU (1 PCIe x8 or 2 PCIe x4); the Slot B supports 8 lanes from PCH (2 PCIe x4 or 4 PCIe x2). The PulM-M2-2S is can installed into the slot A & slot B.



  • Specifications

    • Hardware Spec.

      Spec Item Description
      Physical Characteristics
      Dimensions (LxWxH) (mm) 165.50 (L) x 77.8 (W) x 44.2 (H)
      Environment
      Operating Temperature 0°C ~ 40°C (32°F ~ 104°F)
      Storage Temperature -20°C ~ 75°C (-4°F ~ 167°F)
      Humidity 5% ~ 90% RH, Non-condensing
      Certifications
      Safety & EMC RoHS
      Card Slot Interface
      M.2 2 x M key 2260/2280/22110 (PCIe 3.0 x4/NVMe)

    • Ordering Info.

      Item No. Description
      PulM-M2-2S-R10 M.2 PCIe SSD expansion card supports two M.2 2280 PCIe NVMe (3.0 x4) SSDs; two PCIe 3.0 x4 host interface

    • Package Contents

      • 1 x PulM-M2-2S

      • 1 x L-shaped T10 Plum Wrench

      • 2 x Torx Screws

      • 4 x M.2 SSD Screws

      • 2 x Thermal Pad kit

      • 1 x QIG
