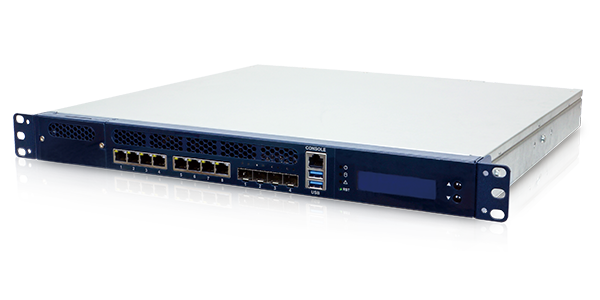

PUZZLE-A001

1U Rackmount Network Appliance with AMD EPYC™ Embedded 3000 series processor, 1 NMS & 2 PCIe x4 slots

  • Overview
    • AMD EPYC™ Embedded 3000 series processor High-Performance CPU System on Chip
    • Support 8 x GbE RJ-45 via BCM 5720, 4 x 10 GbE SFP+ and IEI Networking Module
    • Support open source software, such as pfSense® and OPNsense®.
    • 2 x 288-pin DIMM, 2 x DDR4 2666 MHz, UDIMM Up to 64GB / RDIMM Up to 128GB
    • 1 x RJ-45 Console, 2 x USB 3.1 Gen 1 (5Gb/s), LCM
    • 2 x 2.5” SATA 3.0 drive bay, 1 x M.2 B-Key (SATA 3.0, USB 3.2 Gen 1 (5Gb/s)), 1 x PCIe Mini card (PCIe 3.0, USB 2.0)
    • Support two PCIe x4 slots
    • Redundant PSUs

  • Features
    PUZZLE-A001-network-appliance-banner

    AMD is one of the top X86-based platform provider that offers high-performance, high-core-count processors with Secure Encrypted Virtualization and Secure Memory Encryption. The PUZZLE-A001 and the PUZZLE-A002 are 1U rack network terminals powered by AMD EPYC 3000 and R-series processor to deliver outstanding computing performance.

    Empowered by AMD Platform

    AMD R-series_CPU

    AMD EPYC™ Embedded 3000 Processors

    This series leverages AMD’s advanced “Zen” architecture deliver up to a 52% improvement in instructions per clock (IPC) compared to legacy architectures. It designed with an onboard AMD Secure Processor off loading encryption, decryption operations, and executing for Crypto Co-processing that encrypts data before it feeds to the I/O, complemented with Hardware Validated Boot capabilities to ensure systems are booted from trusted software.

    AMD Embedded R-Series SoC Processors

    For compute-intensive workloads and complex algorithm processing, the AMD Embedded R-Series SOC enables system designers to leverage the benefits of 1.0-compliant Heterogeneous System Architecture (HSA) technology to boost parallel processing performance to new heights.

    PUZZLE-A001 1U AMD Snowy Owl

    PUZZLE-A001 1U AMD Snowy Owl
    PUZZLE-A001-networking-computer-hardware-structure

    Two PCIe x4 Slots

    Two PCIe x4 Slots

    IEI PulM Network Module

    IEI PulM Network Module Slot

    Smart Fan Operation

    Smart fans design - network appliance

    Trusted Platform Module

    TPM Platform Module

    Support Trusted Platform Module (TPM)

    TPM (Trusted Platform Module) offers a broad portfolio of standardized security controllers to protect the integrity and authenticity of systems. With a secured key store and support for a variety of encryption algorithms, TPM security chips provide robust protection for critical data and processes through their rich functionality.

  • Specifications

    • Hardware Spec.

      Spec Item Description
      System
      CPUAMD EPYC™ Embedded 3201 processor, 8C/8T, up to 3.10 GHz
      AMD EPYC™ Embedded 3151 processor, 4C/8T, up to 2.90 GHz
      ChipsetIntegrated in CPU
      Memory4 x DDR4 2133/2666 MHz ECC or non-ECC UDIMM/ RDIMM
      Memory Max.UDIMM Up to 64GB
      RDIMM Up to 128GB
      Cooling method / System Fan4 x Cooling Fans with Smart Fan
      Physical Characteristics
      Rack Height1U
      Dimensions (LxWxH) (mm)426x430x44.2
      Net Weight7 kg
      Storage
      Storage2 x 2.5” SSD/HDD Bay support SATA 3.0 (6 Gbps)
      1 x M.2(NGFF) 2260/3042 B key (SATA and USB 3.2 Gen 1 (5Gb/s)) Support SATA SSD and 4G LTE module
      I/O Interface
      Ethernet4 x SFP+ 10 GbE SPF+ ports(Integrated in CPU)
      8 x LAN GbE RJ45 LAN ports (Broadcom BCM5720)
      I/O Interface1 x External RS-232 Console
      2 x External USB 3.2 Gen1x1 5Gb/s
      1 x Internal USB 3.2 Gen1x1 5Gb/s
      4 x Internal USB 2.0
      Expansion2 x PCIe x4 PCIe 3.0 x4 (FHHL) slot
      1 x PCIe mini Card Slot PCIe 3.0, USB 2.0
      Power
      Power Supply300W, 100V~240V (Redundant power)
      Environment
      Operating Temperature0°C ~ 40°C (32°F ~ 104°F)
      Storage Temperature-20°C ~ 75°C (-4°F ~ 167°F)
      Humidity5% ~ 90% non-condensing
      Certifications
      Safety & EMCCE / FCC
      OS Support
      OS SupportLinux Ubuntu 18.04.04
      CentOS 7/ Red Hat/Fedora EPEL

    • Ordering Info.

      Item No. Description
      PUZZLE-A001-SO2/16G/R-R10 1U Rackmount Network Appliance with AMD EPYC™ Embedded 3201 processor, 16GB DDR4, two 256GB SSD, four 10 GbE SFP+, eight 1GbE, one PulM, two PCIe expansion, Redundant Power, RoHS
      PUZZLE-A001-SO3/16G/R-R10 1U Rackmount Network Appliance with AMD EPYC™ Embedded 3151 processor, 16GB DDR4, two 256GB SSD, four 10 GbE SFP+, eight 1GbE, one PulM, two PCIe expansion, Redundant Power, RoHS

    • Package Contents

      • ．2 x Power cord

      • ．2 x Rack mounting ears

      • ．6 x Screws for rack mounting ears

      • ．USB to console cable (Option)

      • ．RS-232 to console cable (Option)

      • ．Slide rail (Option)
