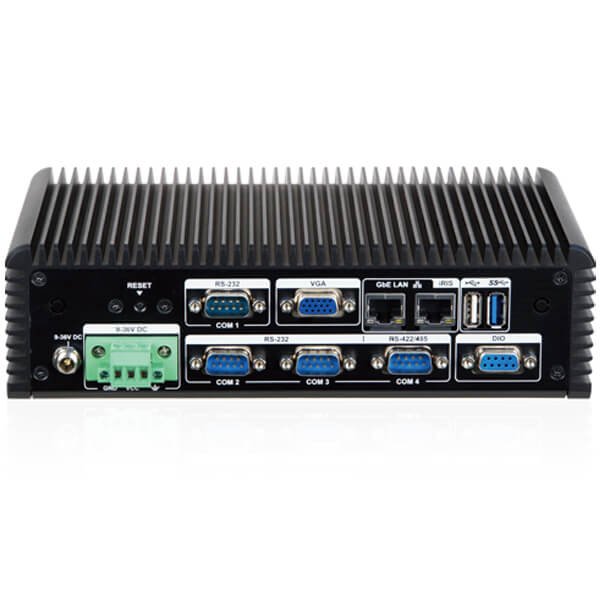

ECW-281B-QGW

QTS-Gateway for Fanless Embedded System with Intel® Celeron® J1900 Processor

● Fanless system with Intel® Celeron® J1900 Processor

● Supports four COM ports (three RS-232, one RS-422/485)

● 9~36V DC input support

● Wide operating temperature: -20°C ~ 60°C with SSD

● Pre-install QTS-Gateway

IEI QTS Gateway Introduction Video

QTS Gateway can help customers easily migrate their current application to the cloud in just one step. It provides virtualization technology and Docker Container technology for any kinds of cloud application. QTS Gateway is capable to achieve the goals of Remote Control, Expected Maintenance and Asset Management in industrial IoT applications.

Spec Item	Description
Form factor
SBC Form Factor	Intel® Celeron® J1900 processor (2 GHz, quad-core, 2 MB cache, TDP=10W)
System
Cooling method / System Fan	Fanless
Chipset	SoC
Memory Max.	1 x 204-pin 1066/1333 MHz single-channel DDR3L SO-DIMM (system max. 8 GB)
Drive Bays	1 x 2.5' SATA 3Gb/s HDD Bay
Storage	1 x 2.5' SATA 3Gb/s HDD Bay
I/O Interface
Display	1 x VGA
Audio	1 x Line out
I/O Interface	1 x VGA 3 x USB 2.0 1 x USB 3.0 3 x RS-232 1 x RS-422/485 1 x PCIe GbE by Intel I210 1 x PCIe GbE by Intel I211 1 x Line out
Digital I/O	8-bit digital I/O
Power
Input	3-pin terminal: 9 V~36 V DC
Power consumption	12V@1.45A (with Intel® Celeron® J1900 CPU and one 8 GB 1333 MHz DDR3 memory)
Environment
Operating Temperature	-20°C ~ 60°C with air flow (SSD)
Dimensions
Dimensions	229 x 64 x 132
Weight
Weight	2.1 kg / 3.9 kg
Expansion Slots
Expansion Slots	1 x Half-size PCIe Mini card (only for iRIS)
Option
iRIS	1 x iRIS-1010-R10 (optional purchase)

Spec Item

Description

Form factor

SBC Form Factor

Intel® Celeron® J1900 processor
(2 GHz, quad-core, 2 MB cache, TDP=10W)

System

Cooling method / System Fan

Fanless

Chipset

SoC

Memory Max.

1 x 204-pin 1066/1333 MHz single-channel DDR3L SO-DIMM (system max. 8 GB)

Drive Bays

1 x 2.5' SATA 3Gb/s HDD Bay

Storage

1 x 2.5' SATA 3Gb/s HDD Bay

I/O Interface

Display

1 x VGA

Audio

1 x Line out

I/O Interface

1 x VGA
3 x USB 2.0
1 x USB 3.0
3 x RS-232
1 x RS-422/485
1 x PCIe GbE by Intel I210
1 x PCIe GbE by Intel I211
1 x Line out

Digital I/O

8-bit digital I/O

Power

Input

3-pin terminal: 9 V~36 V DC

Power consumption

12V@1.45A (with Intel® Celeron® J1900 CPU and one 8 GB 1333 MHz DDR3 memory)

Environment

Operating Temperature

-20°C ~ 60°C with air flow (SSD)

Dimensions

229 x 64 x 132

Weight

2.1 kg / 3.9 kg

Expansion Slots

1 x Half-size PCIe Mini card (only for iRIS)

Option

iRIS

1 x iRIS-1010-R10 (optional purchase)

Item No.	Description
ECW-281BWD-BTi-QGW-R10	Fanless embedded system with WAFER-BTi-R10,with Intel® Celeron J1900 2GHz, 4 serial ports,with 4GB DDR3L pre-installed SO-DIMM memory, with QTS-Gateway, 9~36VDC in, w/o adapter, black, RoHS

Item No.

Description

ECW-281BWD-BTi-QGW-R10

Fanless embedded system with WAFER-BTi-R10,with Intel® Celeron J1900 2GHz, 4 serial ports,with 4GB DDR3L pre-installed SO-DIMM memory, with QTS-Gateway, 9~36VDC in, w/o adapter, black, RoHS
