Overview

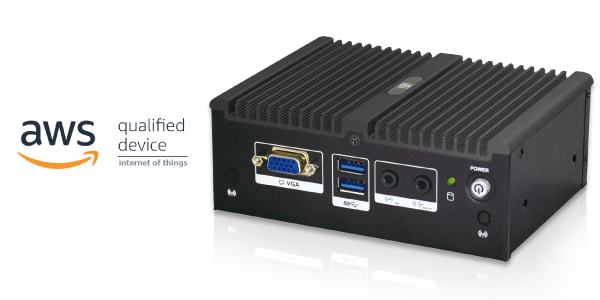

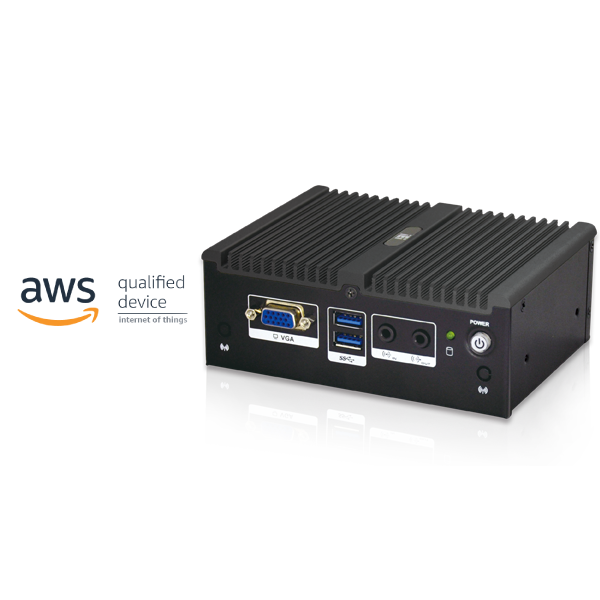

● Fanless system with Intel® Celeron® N3160 processor● Dual display● Two RS-232/422/485● Full-size PCIe Mini slot for expansion● Four USB 3.0 ports● Two GbE LAN ports -
Specifications
-
Hardware Spec.
Spec Item Description Form factor SBC Form Factor CPU:Intel® Celeron® N3160
(up to 2.24 GHz, quad-core, 2 MB cache, TDP=6W)
Chipset:SoC
System Memory:1 x 204-pin DDR3L 1.35 V SO-DIMM
(system max: 8 GB) Pre-installed 2 GBI/O Interface I/O Ports 4 x USB 3.0
Ethernet:
2 x RJ-45 PCIe GbE by Intel® I211 controller
2 x RJ-45 RS-232/422/485
1 x HDMI, 1 x VGA
1 x Line-out, 1 x Line-inExpansion Slots Expansion Slots 1 x Full-size PCIe Mini card (support mSATA, colay with SATA)
*uIBX-250-BW-QGW-R20 has no PCIe mini slot*System Cooling method / System Fan Fanless Drive Bays 1 x 2.5' SATA 6Gb/s HDD/SSD drive bay Indicator&Buttons Buttons 1 x Power button, 1 x AT/ATX switch Indicators HDD Color Color Black Dimensions Dimensions 136.6 x 102.4 x 52 Weight Weight 470 g/1.4 kg Environment Operating Temperature -20°C ~ 60°C with air flow Humidity 10% ~ 95%, non-condensing -
Ordering Info.
Item No. Description uIBX-250-BW-N3/2G-R20 Fanless embedded system with Intel® Celeron® N3160 1.6 GHz (up to 2.24 GHz, quad core, TDP 6 W), 2 GB DDR3L pre-installed memory,12 V DC, with RS-232/422/485, USB 3.0, VGA/HDMI, dual Intel® PCIe GbE, RoHS -
Package Contents
1 x Power Adapter
1 x Mounting Bracket
2 x RS-232/422/485 round cable
-
-
