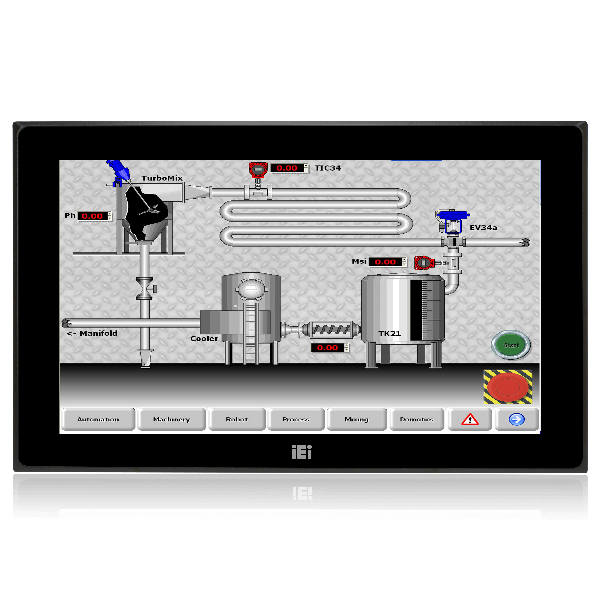

DM-FW15A

15.6” DM-F IP65 Industrial Monitor

  • Overview
    ● Robust IP65 aluminum front bezel
    ● Aesthetic ultra-thin bezel for seamless panel mount installation
    ● DC input
    ● DP/VGA flexible video input solution
    ● PCAP AG coating touch
    ● Wide temperature support

  • Features
    DM-FW15 19A industrial monitor banner
    IP 65 Waterproof Aluminum Front Panel

    IP 65 Waterproof Aluminum Front Panel

    IP 65 is the highest dust, water and oil proof standard in ground usage, It absolutely prevents any micro-particles from getting into the system front panel and allows the system to function in harsh environments.

    Etching anti-glare, never peel off

    Etching anti-glare, never peel off!

    The DM-F series is built with anti-glare touch screen, which has lower reflection compared to normal touch screen. The reflection will reduce from 8% to 1% and it will eliminate the interference of shine and lights on displays and improve the screen clarity.

    UV-resistant ensures reliable continuous operation for mission critical applications

    UV-resistant ensures reliable continuous operation for mission critical applications

    ● Blocks UV wavelengths less than ≈340nm
    ● Meets ASTM G154 performance criteria Cycle 1 for 1000 hours

    Gamma Correction - Pursuit of Perfection

    Gamma Correction - Pursuit of Perfection

    Gamma correction enables each panel model to follow the specified look-up-table (LUT) in gamma curve doing color adjustment through software encode. In this way, various monitors can display in an unified color by following Gamma 2.2 standard for PC products, ensuring color consistency for multiple monitor applications.

    9V~36V Wide Range DC Input

    9V~36V Wide Range DC Input

    Power requirement varies from applications. DM-F series provides 9V~36V DC input which simplifies system integration through adapter or DC source.

    OSD Keypad on Back

    OSD Keypad on Back

    In order to keep the front panel simple and clean, the membrane keypad of the DM-F series is located on the rear panel to prevent the possibility to adjust the setting accidentally.

    IEI SmartOSD Software OSD for IEI LCD Monitors

    IEI SmartOSD Software OSD for IEI LCD Monitors

    IEI SmartOSD is a proprietary On-Screen-Display (OSD) software solution that enables easy remote monitor setting adjustments in Windows environment. IEI SmartOSD delivers excellent performance and provides more flexibility than typical OSD hardware solutions when adjusting a monitor. SmartOSD also allows monitor settings such as brightness, contrast, screen position, size, and color gain to be read and changed over normal video cable (VGA/DVI by project base).

    Wide Operating Temperature

    Wide Operating Temperature

    Design for outdoor applications, DM-F series support wide operating temperature from -20°C ~ 60°C for 12” to 17” models. 22” and 24” are by project request.

    I/O Interface

    DM-FW15 monitor I/O interface

    Dimensions

    DM-FW15A industrial monitor dimension

  • Specifications

    • Hardware Spec.

      Spec Item Description
      Display
      Backlight MTBF(hrs)50000
      Brightness(cd/m2)400
      Contrast Ratio500:1
      LCD Size15.6” (16:9)
      Max Resolution1366 (W) X 768 (H)
      Environment
      Humidity10% to 95% (non-condensing)
      IP LevelIP 65 compliant front panel
      Operating Temperature-20°C ~ 60°C
      Storage Temperature-20°C ~ 70°C
      LCD
      LCD Color16.2M
      Pixel Pitch (mm)0.252 x 0.252
      Viewing Angle (H-V)170° / 160°
      Physical Characteristics
      Cutout Dimensions379.1 x 232.3
      Dimensions (LxWxH) (mm)400.1 x 253.3 x 52.9
      Power
      Power adapter9V~36V DC
      Touch
      Touch ControllerEETI EXC3 series
      Touch Screen10-point projected capacitive touch window
      Weight
      Weight4 / 6.5
      I/O Interface
      I/O Interface1 x DC Input Jack(9~36V (Lockable))
      1 x Display Port
      1 x HDMI
      1 x Power In(9V-36V terminal block)
      1 x USB 2.0(touch)
      1 x VGA

    • Ordering Info.

      Item No. Description
      DM-FW15A/PC-R1015.6” 400 cd/m² 1366x768 LCD monitor, Aluminum front panel, Black color, W/ USB PCAP touch screen, 9 ~36V DC input, R10

    • Package Contents

      • 1 x USB Cable

      • 1 x VGA Cable
