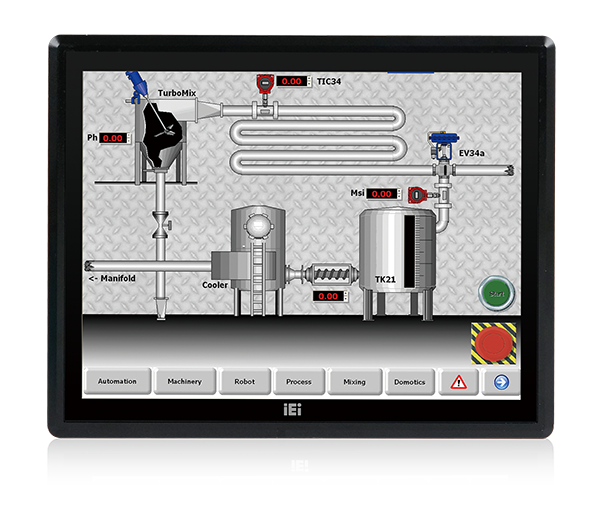

• Overview

    ● Robust IP65 aluminum front bezel
    ● Aesthetic ultra-thin bezel for seamless panel mount installation
    ● Wide range 9V~36V DC input
    ● DVI / DisplayPort / VGA flexible video input solution
    ● Projected capacitive multi-touch and resistive single touch options
    ● Wide temperature support
  • Specifications

    • Hardware Spec.

      Spec Item Description
      Display
      Backlight MTBF(hrs)50000
      Brightness(cd/m2)350
      Contrast Ratio1000:1
      LCD Size19”(4:3)
      Max Resolution1280 (W) x 1024 (H)
      Environment
      Humidity10% to 95% (non-condensing)
      IP LevelIP 65 compliant front panel
      Operating Temperature-20°C ~ 60°C
      Storage Temperature-20°C ~ 70°C
      I/O Interface
      I/O Ports and Switches1 x VGA (DB-15)
      1 x DVI
      (F19A only)
      1 x HDMI(F17A only)
      1 x DisplayPort1.1
      1 x USB 2.0 (touch)
      1 x RS-232 (reserved for resistive touch ATO)
      1 x Lockable 12V DC jack
      1 x 9V-36V terminal block
      LCD
      LCD Color16.7M
      Pixel Pitch (mm)0.294 x 0.294
      Viewing Angle (H-V)170° / 160°
      Physical Characteristics
      Cutout Dimensions430 x 355
      Dimensions (LxWxH) (mm)372.4 x 447.4 x 49.57
      Power
      Power adapter9V~36V DC
      Touch
      Touch Controller5-wire resistive single touch window/ Penmount 6000
      Touch Screen2-point projected capacitive touch window/ EETI EXC7200
      Weight
      Weight5.4 /8.4
    • Ordering Info.

      Item No. Description
      DM-F19A/PC-R2019" 250 cd/m² SXGA LCD monitor, Aluminum die casting front panel, Black color, W/ USB projected capacitive touch screen, 9 ~36V DC input, R20
      DM-F19A/R-R2019" 250 cd/m² SXGA LCD monitor, Aluminum die casting front panel, Black color, W/ USB resistive touch screen, 9 ~36V DC input, R20
    • Package Contents

      • 1 x Touch Pen

      • 1 x USB Cable

      • 1 x VGA Cable
