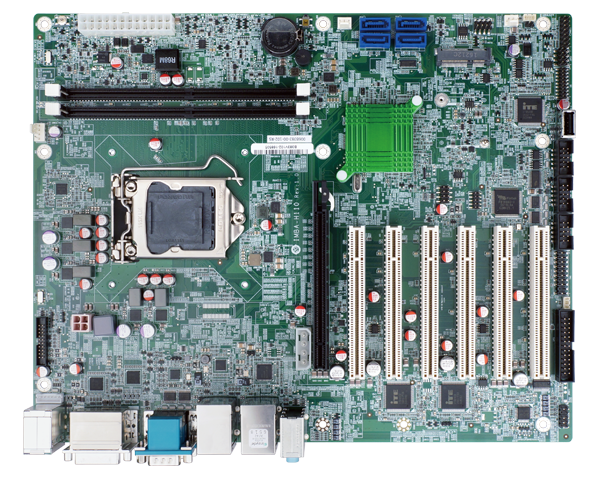

IMBA-H110

ATX motherboard supports 14nm LGA1151 6th Generation Intel® Core™ i7/i5/i3,
Celeron® and Pemtium® processor

  • Overview
    ● LGA 1151 Intel® 6th/7th generation Core™ i7/i5/i3, Pentium® or Celeron® processor supported
    ● Dual-channel DDR4 2133 MHz
    ● Support dual displays with DVI-I/HDMI+DP/iDP
    ● Support USB 3.0 and SATA 6Gb/s
    ● IEI One Key Recovery solution allows you to create rapid OS backup and recovery

  • Specifications

    • Hardware Spec.

      Spec Item Description
      System
      CPULGA 1151 socket supports Intel® 6th/7th generation Core™ i7/i5/i3, Pentium® or Celeron® processor
      ChipsetIntel® H110
      MemoryTwo 288-pin 2133 MHz dual-channel DDR4 SDRAM unbuffered DIMMs
      Memory Max.64GB
      Physical Characteristics
      Dimensions (LxWxH) (mm)244 X 305
      Net Weight700g
      Storage
      Storage4 x SATA :6Gb/s
      I/O Interface
      Display Output1 x DVI-I :up to 1920x1200@60Hz
      1 x HDMI :1.4 (up to 4096x2160@24Hz)
      1 x iDP :interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160@60Hz)
      Ethernet2 x LAN :LAN1: Intel® I219LM PCIe controller
      LAN2: Intel® I211 PCIe controller
      AudioDescription: Realtek ALC662 HD codec supports 5.1-channel
      Line in :on rear IO
      Line out :on rear IO
      Mic :on rear IO
      Front Audio
      I/O Interface2 x External RS-232
      2 x Internal RS-232 :2x5 pin, p=2.54
      1 x Internal RS-232/422/485 :2x5 pin, p=2.54
      2 x External USB 2.0
      4 x External USB 3.2 Gen1x1
      3 x Internal USB 2.0 :1 X A type, 2 X 2x4 pin, p=2.54
      1 x PS/2 :1x6 pin
      1 x DIO :8-bit digital I/O (2x5 pin)
      1 x LPT :2x13 pin, p=2.54
      Expansion1 x PCIe x16 :Gen3
      6 x PCI Slot
      1 x PCIe mini Card Slot :Full-size slot (support mSATA)
      Other Features
      TPM2x10 pin
      Power
      Power Consumption3.3V@1.53A, 5V@2.95A, 12V@8.38A, 5VSB@3.2A
      (Intel® Core™ i7 6700K 4.0GHz CPU with 16GB (two 8GB) 2133 MHz DDR4 memory)
      Environment
      Operating Temperature-20°C ~ 60°C
      Storage Temperature-30°C ~ 70°C
      Humidity5% ~ 95%, non-condensing
      Certifications
      Safety & EMCCE/FCC compliant

    • Ordering Info.

      Item No. Description
      IMBA-H110-R10 ATX Motherboard supports 14nm LGA1151 6th Generation Intel® Core i7/i5/i3, Celeron® and Pemtium® processor , DDR4, Dual Independent Displays DVI-I/HDMI/iDP, Dual®Intel GbE LAN, USB 3.0, SATA 6Gb/s, HD Audio and RoHS

    • Package Contents

      • 1 x IMBA-H110 single board computer

      • 2 x SATA cable

      • 1 x I/O shielding

      • 1 x QIG
