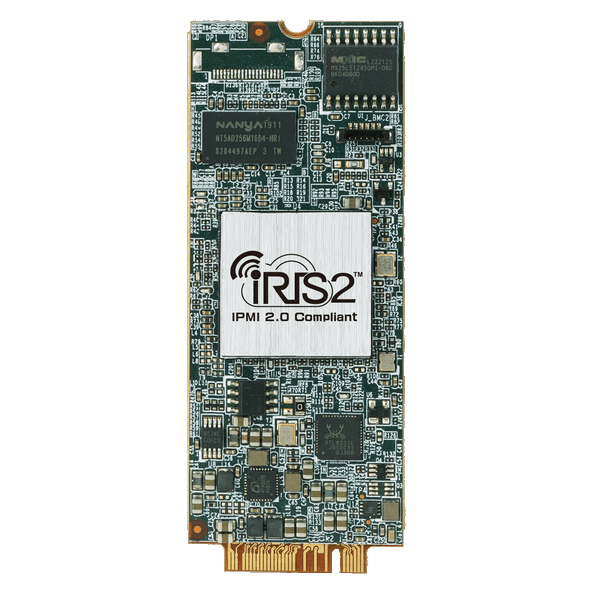

iRIS2-2620

IPMI 2.0 adapter card with 2620 BMC chip for IEI IRIS2 Connector IPMI 2.0 module

» IPMI 2.0 based remote management
» Out-of-Band management
» Hardware health monitor
» Virtual media
» Remote power control

Hardware Spec.

Form Factor
Form Factor IEI IRIS2 Connector
外觀
外觀尺寸(mm) 30mm x 80mm x 7.6mm
Net Weight 18g
I/O Interface
Display Output Display Port : Display Port Connector
Ethernet Description: : 10/100/1000Mbps
Other Features
iRIS --- IPMI 2.0 Based Management ---
» BMC stack with a full IPMI 2.0 implementation
» Customizable sensor management
» OS Platform Independent
--- Hardware Health Monitor ---
» System/CPU temperature
» Fan speeds
» Voltage
» Chassis intrusion
» Power supply failed
» FRU (Field Replaceable Unit)
--- Event Log ---
» BIOS event
» Hardware health monitor event
» Sensor readings
--- LDAP Support ---
» Direct LDAP support from the device
» Open LDAP (Generic LDAP) supported
--- Media Redirection ---
» Virtual Media allows users to remotely mount given ISO/IMG drive images through BMC to Server
» Support for USB key
--- Remote Power Control ---
» Remote power control
» Serial over LAN (SOL)
--- User Management ---
» IPMI based user management
» Added security with SSL (HTTPS)
» Multiple user permission level
» Multiple user profiles
--- Web-based Configuration ---
» Full configuration using web UI
» Fail-safe firmware upgrade
» Multi-language support in web interface with English as the currently supported language
環境
操作溫度 -10°C ~ 60°C
濕度 5% ~95%, non-condensing

Ordering Information

iRIS2-2620-R10 IPMI 2.0 adapter card with AST2620 BMC chip for iEi iRIS2 Connector IPMI 2.0 module

Package Contents

Package Content
  • 1 x iRIS2-2620 IPMI 2.0 adapter card
