AFL3-W15C-ADLP

15.6” Fanless Panel PC with Intel® Alder Lake P

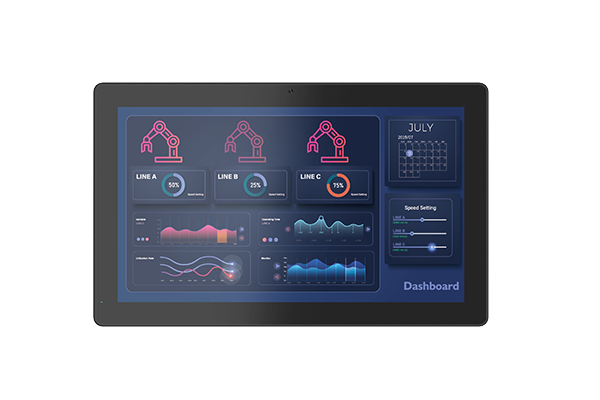

AFL3-W15C-ADLP Front
AFL3-W15C-ADLP Right
AFL3-W15C-ADLP Left
AFL3-W15C-ADLP IO
AFL3-W15C-ADLP Back
  • AFL3-W15C-ADLP Front
  • AFL3-W15C-ADLP Right
  • AFL3-W15C-ADLP Left
  • AFL3-W15C-ADLP IO
  • AFL3-W15C-ADLP Back
» 12th Gen Intel® Core™ Mobile i7/i5/i3 Processors
» Full HD capacitive touch screen
» Anti-AG and Anti-UV PCAP
» one E-Window that supports additional connector interface.
» Support WiFi 6E and Bluetooth5.2

Hardware Spec.

System
CPU 12th Gen Intel® Core™ Mobile i7/i5/i3 Processors (Alder Lake-P)
Memory Ext. Two 260-pin 3200 MHz dual-Channel DDR4 SO-DIMM
(8G Pre-installed) (max. 32GB)
Storage 1 x 2.5” SATA HDD bay
Communication
Wireless IEEE 802.11ax 2T2R module (Wi-Fi 6E) with BT v5.2 (M.2 2230 E-key)
I/O Interface
Ethernet LAN1: Intel® I225 LM(support Intel AMT)
LAN2: Intel® I225V
Audio AMP 3W + 3W (internal speaker)
Expansion 2 x M.2 M Key 2280 (PCIe Gen 3 x4)
1 x M.2 B KEY (PCIe x1 or SATA) for IPMI
1 x M.2 2230 E Key Slot support Vpro (PCIe 3.0 x1 + USB2.0 x1 + CNVI)
Audio Codec ALC888S
Power
Power Supply 12V DC
Environment
Operating Temperature 0ºC ~ 40ºC
Safety & EMC CE, FCC (Class A) , UKCA
Humidity 10% ~ 90% (non-condensing)
Storage Temperature -20ºC ~ 60ºC
IP Level IP 64 compliant front panel
Physical Characteristics
Color Black
Mounting Panel, Wall, Stand and Arm VESA 75 /100mm
Construction Front Panel PC + ABS Plastic
LCD
Size 15.6”
Resolution 1920 x 1080 (16:10)
Brightness (cd/m2) 450 cd/m²
Contrast Ratio 800 : 1
Viewing Angle (H-V) 170°/170°
Backlight MTBF 50000 hours
Touch
Touch Screen PCAP with USB interface (anti-UV/AR coating)
Touch Controller EXC3160
I/O Interface
I/O Interface 1 x AT/ATX switch
1 x Clear CMOS Button
1 x HDMI™ (2.0 (up to 3840*2160 @60Hz))
2 x LAN (Intel® I225V 2.5GbE controller)
1 x Reset Button
1 x RS-232 (by DB9)
1 x RS-232/422/485 (by DB9)
4 x USB 3.2 Gen1x1 (Type-A (5Gb/s))
4 x USB 3.2 Gen1x1 (Type-A (10Gb/s))

Ordering Information

AFL3-W15C-ADLP-i7/8G-R10 Wide 15.6" 450cd/m² 1920x1080 Panel PC with 12th Generation Intel® Core™ i7-1260P on-board processor, PCAP touch, 2M camera, microphone, 1x8GB DDR4 RAM, with AG, RoHS
AFL3-W15C-ADLP-i5/8G-R10 Wide 15.6" 450cd/m² 1920x1080 Panel PC with 12th Generation Intel® Core™ i5-1240P on-board processor, PCAP touch, 2M camera, microphone, 1x8GB DDR4 RAM, with AG, RoHS
AFL3-W15C-ADLP-i3/8G-R10 Wide 15.6" 450cd/m² 1920x1080 Panel PC with 12th Generation Intel® Core™ i3-1220P on-board processor, PCAP touch, 2M camera, microphone, 1x8GB DDR4 RAM, with AG, RoHS

Package Contents

Package Content
  • 1 x AFL3-W15C-ADLP

  • 1 x Power Cord

  • 1 x Power Adapter

  • 1 x QIG
