TANK-XM810

High-Performance 10 th / 11 th Generation Intel® Core™ Processor Fanless Embedded Computer

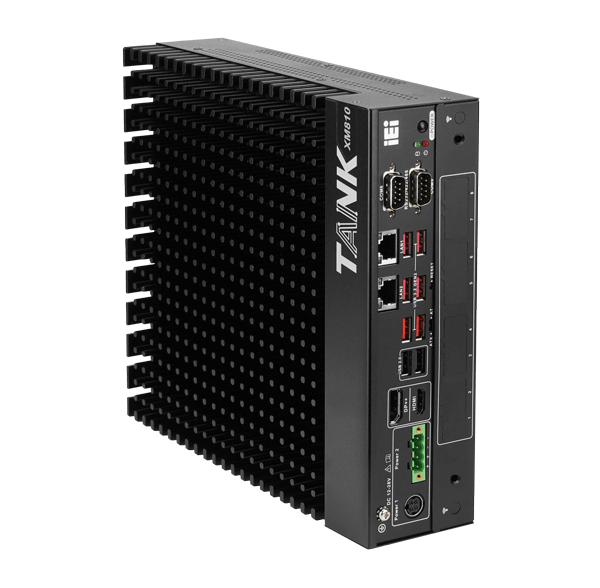

TANK-XM810 Pin-Fin Industrial Embedded System
TANK-XM810 Pin-Fin Industrial Embedded System IO
TANK-XM810 Pin-Fin Industrial Embedded System IO
TANK-XM810 Pin-Fin Industrial Embedded System IO
  • TANK-XM810 Pin-Fin Industrial Embedded System
  • TANK-XM810 Pin-Fin Industrial Embedded System IO
  • TANK-XM810 Pin-Fin Industrial Embedded System IO
  • TANK-XM810 Pin-Fin Industrial Embedded System IO
» Supported CPUs:
Intel® Core™ i3-10320 3.8 GHz (up to 4.6 GHz, quad-core, 65W TDP)
Intel® Core™ i5-10500 3.1 GHz (up to 4.5 GHz, 6-core, 65W TDP)
Intel® Core™ i5-10500TE 2.3 GHz (up to 3.7 GHz, 6-core, 35W TDP)
Intel® Core™ i7-10700E 2.9 GHz (up to 4.5 GHz, 8-core, 65W TDP)
Intel® Core™ i7-10700TE 2.0 GHz (up to 4.4 GHz, 8-core, 35W TDP)
» 2 x 2.5GbE ports
» Multiple USB ports and serial ports
» Multiple internal expansion boards for flexible selection
» Various optional backplanes and chassis
» CE/FCC compliant
Industrial system with its modular expansion chassis and five icons of telecom, AI, transportation, robot and power

TANK-XM810

Modular Edge AI Inference System

iEi has engineered the TANK-XM810 with the latest technologies to deliver optimized and reliable processing performance at the rugged edge. This product features 11th/10th generation Intel® Core™ processors and comes with multiple I/O combinations and a modular expansion solution. Expansion is supported by iEi's unique eChassis boxes and eBP backplanes.

The TANK-XM810 can support up to 65W processors and can operate in temperatures ranging from -20°C to 60°C. It is designed for use in harsh environments like digital surveillance, transportation system, machine vision and advanced manufacturing.

Modular Edge AI Inference System

10th Gen Intel® Core™ Outstanding Computing Power

8 Cores, 16 Threads, Up to 65W CPU

The TANK-XM810 series is powered by the 10th generation Intel® Core™ i7/i5/i3 processors. With up to 8-core architecture and high-speed DDR4-2933 memory support, it provides low-latency edge responsiveness for data-driven industrial AI and machine vision applications.

Moreover, the 10th Gen Core™ i7 CPU brings 50% better multi-tasking performance for compute-intensive application than 9th Gen CPU. DDR4 2933 MHz memory further increases speed by 10%. With increased I/O capacity and the outstanding computing power, the TANK-XM810 delivers the performance required to consolidate industrial multiple workloads.

Bar chart comparing average CPU mark of 9th gen and 10th gen Intel Core i7, i5 and i3 processors

Flexible Expansion with eChassis

The TANK-XM810 supports the unique eChassis modules that enable performance acceleration through GPUs, accelerators and other add-on cards. Furthermore, comprehensive modularized options and the ease of configuration effectively reduce lead time for customers' diverse requirements.

Four Steps to Configure Your Edge AI Inference System

The TANK-XM810 series of embedded computers from iEi provides great scalability and flexibility, thanks to its unique eChassis modules. This makes it easy for system integrators to configure a system that meets specific user requirements.

Number one with TANK-XM810 embedded system. First step to setup edge AI system.

Choose a System

Choose an ideal embedded system according to CPU and budget

arrow picture
Number two with a computer backplane. Second step to setup edge AI system.

Choose a Backplane (eBP)

Choose a backplane according to functionality

arrow picture
Number three with two expansion chassis. Third step to setup edge AI system.

Select a Chassis (eChassis)

Find a corresponding chassis according to the selected backplane

arrow picture
Number four with power icon. Fourth step to setup edge AI system.

Select a Power Supply

Find a sufficient power supply

Flexible Expansion via PCIe/PCI slot

For performance upgradability and flexibility, the TANK-XM810 supports eChassis and eBP modules to add edge inference capabilities. It also provides up to 7 system configuration options. Users can select a specific package that provides extra PCIe expansion slots for add-on cards such as frame grabber cards, accelerator cards, I/O cards, motion control cards, and even GPU accelerators for machine learning and AI workloads.

TXC-XM81-3S
TXC-XM81-3S
TXC-XM81-4S
TXC-XM81-4S
TXC-XM81-4S
TXC-XM81-G1
TXC-XM81-G2
A
B
C
D
E
F
G
eChassis TXC-XM81-3S TXC-XM81-3S TXC-XM81-4S TXC-XM81-4S TXC-XM81-4S TXC-XM81-G1 TXC-XM81-G2
eBP TXCBP-XM81-2A TXCBP-XM81-2B TXCBP-XM81-4A TXCBP-XM81-4B TXCBP-XM81-4C TXCBP-XM81-4A TXCBP-XM81-G2-PW
TXCBP-XM81-2A
TXCBP-XM81-2B
TXCBP-XM81-4A
TXCBP-XM81-4B
TXCBP-XM81-4C
TXCBP-XM81-G1-PW
TXCBP-XM81-G2-PW
Slot 1 PCIe x16 PCle x16 (x8 signal) PCIe x16 PCle x16 (x8 signal) PCIe x16 PCIe x16 PCle x16 (x8 signal)
Slot 2 - - PCIe x1 PCIe x4 PCIe x4 PCIe x1 -
Slot 3 PCIe x4 PCle x16 (x8 signal) PCIe x4 PCle x16 (x8 signal) PCI PCIe x4 PCle x16 (x8 signal)
Slot 4 - - PCIe x4 PCIe x4 PCI PCIe x4 -
Slot 5 - - - - - - PCIe x4
Slot 6 - - - - - - PCIe x4
Two powerful graphics card installing into the TANK-XM810

GPU Expansion Box

The GPU eChassis, TXC-XM81-G1 and TXC-XM81-G2, are the scalable expansion chassis designed for adding graphics cards to enhance artificial intelligence applications. They can support up to total 600 W and 339.8 mm in a full-length, full-height form factor. Other PCIe add-on cards like high speed I/O cards, data collection cards, frame grabber cards and motion cards are also supported to expand functionality.

*Please choose the corresponding eBPs, TXCBP-XM81-4A for TXC-XM81-G1 and TXCBP-XM81-G2-PW for TXC-XM81-G2.

Dual-Power Input Enables Performance Upgrade

The TANK-XM810 provides a dual-power input solution for stably and efficiently powering the add-on cards requiring high power load. The IDD-X1228150 power board offers additional power for GPU cards and accelerators that require more than 75W.

» 12-28V DC for host system

» 12V DC or 16-28V DC for performance acceleration cards

TANK-XM811 box PC with IEI power module to offer dual power inputs

Industrial-grade Hardened Hardware Design
with 12V~28V DC Wide-range Power Input

Ruggedized hardware architecture safeguards the small factor computer in harsh, remote and dynamic environments.

» Fanless cooling eliminates failure points

» -20°C to 60°C wide operating temperature

» 50 G shock and 3 Grms vibration

» Wide 12V to 28V DC voltage input

» Intel® Platform Trust Technology (Intel® PTT) to enable password protection, device authentication and future-ready cybersecurity

-20°C

Input and output interface panel of the TANK-XM810

60°C

Four arrows towards four different direction showing the heat dissipation direction of the external heatsink of the TANK-XM810

Fanless System with Reliable Thermal Design

The TANK-XM810's thermal design is optimized for better heat conduction using a pin-fin heatsink concept. This enhances two dimensional heat conduction and reduces flow impedance for better heat dissipation in this fan-less system. The overall weight and dimensions are thus reduced, significantly enhancing system reliability in vibration-sensitive applications, such as AGV. Moreover, this innovative thermal design allows the TANK-XM810 to maximize superior performance than those with traditional heatsink consisting of parallel fins.

Advanced High-efficiency Fan Kit Releases Extreme
Computing Power

For applications that require a lot of computing power, users can add an external fan for active cooling. This will help maintain high system performance in high temperature environments and under high CPU loads. This design is reliable and prevents dust from getting into the hardware. It is also easy to disassemble and clean.

» TDP 35W operates at -20°C ~ 60°C w/o external fan

» TDP 65W operates at -20°C ~ 60°C with external fan

100% CPU Power

100% CPU Power

Easy Assembly

Easy Assembly

Silent Operation

Silent Operation

TANK-XM810 embedded system with external fan kit creating wind turbulence to transfer system heat

Versatile for Installation Flexibility

The TANK-XM810 can be mounted on the side, wall, or desktop for quick deployment in a variety of edge AI applications. No matter it is in the field, cabinet or equipment.

TANK-XM810 industrial system mounting on a wall with wall mount brackets

Wall Mounting

Using the two-side wings onto the wall

TANK-XM810 box pc installed in an industrial control cabinet

Side Mounting

Space-saving side mouting in a cabinet

TANK-XM810 embedded system mounting on desktop with two mounting brackets

Desktop Mounting

Easy for field maintenance

Easily Integrated Enclosure for Local CTOS

The mainboard is attached to a support bracket to keep it from bending or warping. The top and bottom covers can be opened in a few steps for installing the CPU, memory, and hard drive. Moreover, the system integrator can take advantage of local configure-to-order-service.

Easily Integrated Enclosure for Local CTOS
TANK-XM810 edge AI inference system installed with two external antennas. 5G 4G Bluetooth wifi SIM icons on top of it

Wireless Connectivity from the Edge

iEi TANK-XM810 series enables seamless wireless connectivity for remote and mobile edge deployments. Wi-Fi 6 and Bluetooth 5.0 reliably connect to sensors for indoor applications. Dual SIM sockets provide continuous LTE cellular connectivity and network redundancy to ensure uninterrupted data transmission for outdoor mobile edge deployments. Furthermore, the TANK-XM810 is 5G ready through a 5G add-on card and the on-board SIM slot, providing greater cellular speeds.

iEi Wireless Expansion Module P/N: TXIOB-XM81-A

» 1 x M.2 2230 A key slot for WiFi and Bluetooth (PCIe x1 & USB 2.0 mode)

» 1 x Full-size PCIe Mini slot with SIM holder (PCIe x1 & USB 2.0 mode)

» 1 x M.2 3042/3052/3080 B key slot with SIM holder (PCIe x1 & USB 3.2 mode) for LTE/5G cellular, NVMe SSD or AI accelerator

» 1 x M.2 3042/3052/3080 B key slot with SIM holder (PCIe x2 mode) for LTE/5G cellular, NVMe SSD or AI accelerator

Eight 2.5GbE PoE+ for Added Device Connectivity

Oftentimes embedded computers are deployed in environments where it is difficult or costly to add power outlets for connected devices. iEi's TANK-XM810 features eight PoE+ (IEEE 802.3at) ports. Each port is capable of providing up to 30 watts over a single Ethernet cable to transmit both data and power.

iEi provides an Ethernet daughterboard module that can be easily integrated into the TANK-XM810 through standard PCIe protocols. The PoE+ connectivity allows organizations to power devices such as sensors and cameras through Ethernet ports. It also provides additional Ethernet I/O ports and scalable connectivity for IoT deployments.

Moreover, the 2.5GbE PoE module allows the TANK-XM810 to connect to devices that need intensive bandwidth, like high-resolution cameras. This lets the camera transfer high-resolution video feeds to an embedded system.

A PoE LAN module with eight PoE ports is installing into the TANK-XM810 embedded system

iEi PoE/LAN Module

P/N: GPOE-XM81-8P

» Interface: 8 x PCI Express® x1

» Ethernet: 8 x 2.5GbE Intel® i225-V controller

» PoE Capability: IEEE 802.3at with 30W / 52V per port (Total power 60W)

Stunning 4K Resolution and Dual
Independent Display Support

The TANK-XM810 is equipped with Intel® UHD 630 graphics engine for stunning 4K image display via DP++ and HDMI™ ports. The DisplayPort Dual-Mode (DP++) connector can be used with a simple, inexpensive passive adapter to convert to HDMI™. It is completely plug and play, handles both video and audio, and does not need any driver to work.

A production line installed with two monitors via DP++ and HDMI™ 1.4 provided by TANK-XM810

Versatile I/O

iEi's AI edge inference system, TANK-XM810, incorporates leading-edge I/O options for a vastly expandable Industry 4.0 solution. Reliable serial ports, multi-display outputs and high-speed USB ensure smooth integration and offer rich scalability to rugged edge deployments.

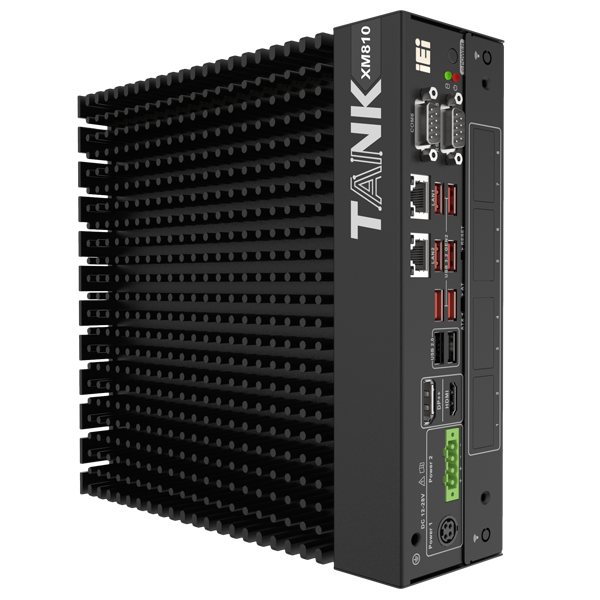

Front panel I/O of the TANK-XM810 embedded system

1DC IN

2 1 x DP++ 1.4
1 x HDMI™ 1.4

32 x USB 2.0

46 x USB 3.2 Gen 2

52 x 2.5GbE

62 x RS-232/422/485

7Remote power

84 x RS-232

91 x DIO (6-in/6-out)

10For IO expansion board

Optional Item Selection

With flexibility and convenience – various options await! Build your iconic TANK-XM810 by choosing functional expansions!

Mustang-V100-MX8
Mustang-V100-MX8
8 x Intel® Movidius™
Myriad™ X MA2485 VPU Accelerator
Mustang-V100-MX4
Mustang-V100-MX4
4 x Intel® Movidius™
Myriad™ X MA2485 VPU Accelerator
GPOE-2P
GPOE-2P
2-port 802.3at PoE Card
Mustang-T100-T5
Mustang-T100-T5
5 x Google Coral edge TPU Accelerator
Mustang-F100
Mustang-F100
Intel® Arria® 10 GX1150 FPGA Accelerator

Dimensions

Dimension drawing of the TANK-XM810 industrial embedded system

Hardware Spec.

Form factor
SBC Form Factor
  • CPU:
    10/11 th Gen Intel® Core™ CPU 35/65W
    Intel® Core™ i3-10320 3.8 GHz (up to 4.6 GHz, quad-core, 65W TDP)
    Intel® Core™ i5-10500 3.1 GHz (up to 4.5 GHz, 6-core, 65W TDP)
    Intel® Core™ i5-10500TE 2.3 GHz (up to 3.7 GHz, 6-core, 35W TDP)
    Intel® Core™ i7-10700E 2.9 GHz (up to 4.5 GHz, 8-core, 65W TDP)
    Intel® Core™ i7-10700TE 2.0 GHz (up to 4.4 GHz, 8-core, 35W TDP)
  • Chipset:
    Q470/Q470E
  • System Memory:
    2 x SO-DIMM DDR4 2933 MHz (up to 64GB)
  • Power:
    DC Jack: 12 V~28 V DC
    Terminal Block: 12 V~28 V DC
    Consumption: 12V @ 8A (Intel ® Core™ i9-10900TE with 8GB memory)
I/O Interface
I/O Ports
  • USB:
    6 x USB 3.2 Gen 2
    2 x USB 2.0
  • Ethernet:
    2 x RJ-45:
    2 x 2.5 GbE by Intel® I225V (colay I225LM)
  • COM Port:
    2 x RS-232/422/485
    4 x RS-232
  • Digital I/O:
    12-bit Digital I/O (6-in/ 6-out)
  • Display:
    1 x HDMI™
    1 x DP++
  • TPM:
    Support Intel PTT
  • Watchdog Timer:
    Programmable 1 ~ 255 sec/min
Expansion Slots
Expansion Slots M.2: 2 x 2280 M-key (PCle x2) bay (RAID 0/1 support)
Backplane: Optional
System
Cooling method / System Fan Fanless
4-pin external system fan connector
Drive Bays 1 x 2.5” SATA 6Gb/s HDD/SSD bay
Indicator&Buttons
Buttons 1 x Power button
1 x Reset button
1 x AT/ATX switch
Indicators 1 x Power LED (green)
1 x HDD LED (yellow)
Physical Characteristics
Construction Extruded aluminum alloy
Color
Color Black
Dimensions
Dimensions 230.6 x 256.04 x 76.2
Weight
Weight 3.2/3.5 kg
Environment
Operating Temperature -20°C ~ 60°C with air flow (CPU TDP35W & SSD)
-20°C ~ 50°C with air flow (CPU TDP65W & SSD)
Humidity 10% ~ 95% non-condensing
Operating Vibration Half-sine wave shock 5G, 11ms, 100 shocks per axis (SSD)
Operating Shock MIL-STD-810G 514.6C-1 (SSD)
Safety & EMC CE/FCC compliant
OS Support
OS Support Microsoft Windows 10 / Windows 11, Linux

Ordering Information

TANK-XM810-i7BC-R11 Ruggedized Fanless Embedded System with Intel® i7-10700E 2.9GHz,(up to 4.5GHz, 8-core, TDP 65W), 8GB DDR4 pre-installed memory, 1xHDMI™, 1xDP++,12~28V DC and RoHS
TANK-XM810-i7AC-R11 Ruggedized Fanless Embedded System with Intel® i7-10700TE 2.0GHz, (up to 4.4GHz, 8-core, TDP 35W), 8GB DDR4 pre-installed memory, 2xHDMI™, 14~28V DC and RoHS
TANK-XM810-i5BC-R11 Ruggedized Fanless Embedded System with Intel® i5-10500 3.1GHz,(up to 4.5GHz, 6-core, TDP 65W), 8GB DDR4 pre-installed memory, 1xHDMI™, 1xDP++,12~28V DC and RoHS
TANK-XM810-i5AC-R11 Ruggedized Fanless Embedded System with Intel® i5-10500TE 2.3GHz, (up to 3.7GHz, 6-core, TDP 35W), 8GB DDR4 pre-installed memory, 2xHDMI™, 14~28V DC and RoHS
TANK-XM810-i3BC-R11 Ruggedized Fanless Embedded System with Intel® i3-10320 3.8GHz,(up to 4.6GHz, 4-core, TDP 65W), 8GB DDR4 pre-installed memory, 1xHDMI™, 1xDP++,12~28V DC and RoHS

Package Contents

Package Content
  • 1 x Wall mounting kit

  • 1 x Screw pack

  • 2 x Terminal block
