TXCBP-XM81-4A

4-Slot Backplane

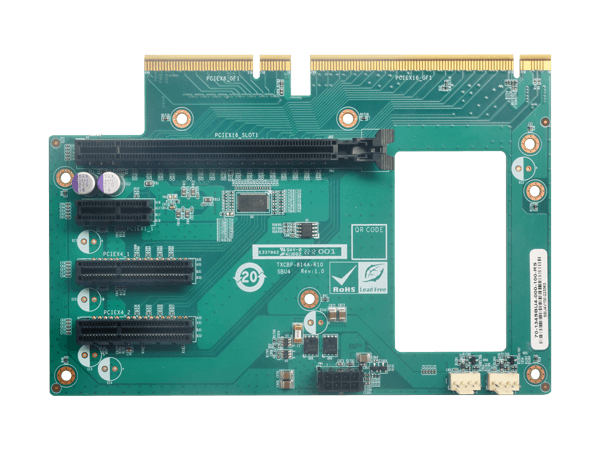

TXCBP-XM81-4A 4-Slot Backplane
  • TXCBP-XM81-4A 4-Slot Backplane
» 4-slot backplane for TANK-XM81 series expansion chassis
» One PCIe x16 & one PCIe x1 & two PCIe x4 slot
» Two system fan connectors
» Compatible chassis: TXC-XM81-4S-R10
» Support an additional power supply board

Hardware Spec.

Form Factor
Form Factor TANK-XM81 series customization
System
Cooling method / System Fan 2 x 4-pin (1x4)
Physical Characteristics
Mounting TXC-XM81-4S
TXC-XM81-G1
Dimensions (LxWxH) (mm) 175.8 x 119
I/O Interface
Expansion 1 x PCIe x1
1 x PCIe x16
2 x PCIe x4
Power
Power Supply 1 x 8-pin (2x4)

Ordering Information

TXCBP-XM81-4A-R10 Tank 81 Series Expansion Peripheral Card, backplane module, 4 Slot, 1xPCIe*16&2xPCIe*4&1xPCIe*1 w/ power connector
