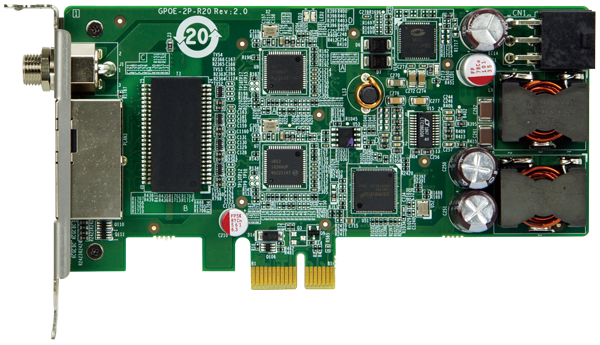

GPOE-2P

PCI Express Power over Ethernet card, 2-port 1000 Base(T), 802.3at compliant, low profile, RoHS

IEI GPOE-2P_PoE_Card
IEI GPOE-2P_PoE_Card
IEI GPOE-2P_PoE_Card
  • IEI GPOE-2P_PoE_Card
  • IEI GPOE-2P_PoE_Card
  • IEI GPOE-2P_PoE_Card
» PCI Express® x1 compliant
» Support IEEE 802.3at for PoE (Power over Ethernet) with 30 watts per port
» Support link aggregation/jumbo frames (9 Kbyte)
» Supports 12V~24V DC input power

Application

Machine Vision

With PoE technology, users can easily connect various PoE PD supported IP camera to the control system through the standard CAT-5/CAT-6 cable (up to 100 meters) to transfer both electrical power and data at the same time. In this application, users can lower the difficulty of routing to avoid the risk of power adapter failure, and easily build the system to act as PSE, allowing the entire production process to be monitored and controlled from A to Z.

photo description

Software Management

For both GPOE 2P and 4P, IEI built- in “GPOE management software” functions to monitor and control from Software to provide access to a computer from a remote location. Also, customer could download IEI Software Development Kit to design your own interface.

photo description

Mostly the embedded system will not only insert one GPOE card, IEI GPOE-6P provides two LED light and management software tools to clarify the function for each cards and ports. IEI GPOE management software tools could control the power and monitor the speed and process of data transfer through LAN.

photo description

Access Control

Access control system can be easily developed by connecting PoE-capable devices like door controller, locking system and RFID reader. Combining power supply and data transmission in a single cable can save both cost and time on system installation. It is also easy to integrate IP-based system into the existing IP infrastructure.

photo description

In-Vehicle System

The GPOE series can be easily added into in-vehicle control system and connect to various devices like surveillance camera, bus payment terminal or in-bus digital signage system. Both data and electrical power can run on standard CAT-5/CAT-6 cable to lower the difficulty of routing and avoid the risk of power adapter failure.

photo description

Dimension

photo description

Hardware Spec.

Physical Characteristics
Dimensions (LxWxH) (mm) 130 X 65
Net Weight 110g
I/O Interface
Ethernet Description: Intel® I211AT controller 9kB jumbo frame IEEE 802.3az, IEEE1588
Power
Power Supply 12~24V DC input
1 x Internal DC input (1x4 pin)
1 x External DC Jack (Ø2.1/Ø5.5)
**Caution! Choose one input only at a time
Environment
Operating Temperature 0°C ~ 60°C
Storage Temperature -10°C ~ 70°C
Humidity 5% ~ 95%, non-condensing
Certifications
Safety & EMC CE/FCC compliant

Ordering Information

GPOE-2P-R20 PCI Express Power over Ethernet card, 2-port 1000 Base(T), 802.3at compliant, low profile, RoHS

Package Contents

Package Content
  • 1 x GPOE-2P card

  • 1 x QIG (Quick Installation Guide)
