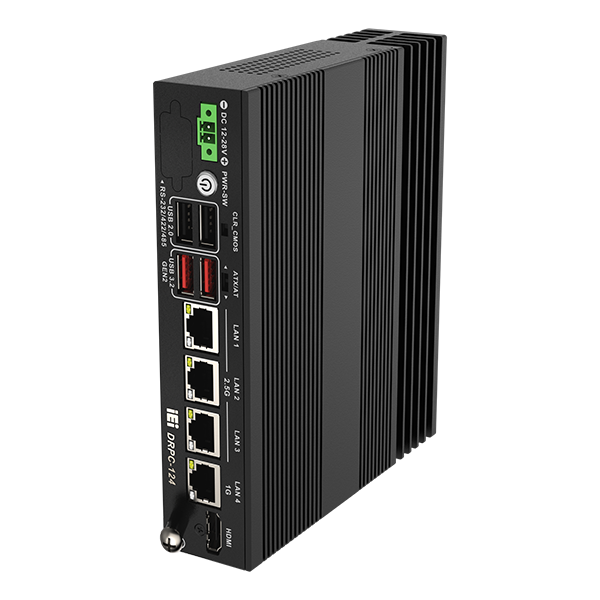

» Compact Industrial Mini PC
» Fanless system
» Intel® Celeron® J6412 2.0 GHz (up to 2.6 GHz, quad-core, TDP 10W)
» Four GbE LAN
» CE/FCC compliant
Hardware Spec.
| Form factor | |
|---|---|
| SBC Form Factor |
|
| I/O Interface | |
| I/O Ports |
|
| Expansion Slots | |
| Expansion Slots |
|
| System | |
| Cooling method / System Fan | Fanless |
| Drive Bays | eMMC 5.1 (Optional) (MOQ, please contact with sales account manager) |
| Indicator&Buttons | |
| Buttons |
1 x Power button 1 x Clear CMOS |
| Indicators | 1 x Power LED |
| Physical Characteristics | |
| Construction | Extruded aluminum alloy |
| Color | |
| Color | Black |
| Dimensions | |
| Dimensions | 159 x 132.5 x 35 (mm) |
| Weight | |
| Weight | 0.78KG /1.2kg |
| Environment | |
| Operating Temperature | -10°C ~ 50°C with 0.7M/S air flow (M.2) |
| Humidity | 10% ~ 95% non-condensing |
| Operating Vibration | 10-500 Hz,1.04 Grms, random, 1 hr/axis |
| Operating Shock | Half-sine wave shock 5G, 11ms, 100 shocks per axis |
| Safety & EMC | CE, FCC, UKCA |
| OS Support | |
| OS Support | Microsoft® Windows® 10/11, Linux |
Ordering Information
| DRPC-124-EHL-W10IoT21-E-R10 | OS Image with Windows® 10 Enterprise Entry 64-bit 2021 LTSC for DRPC-124-EHL Series, with DVD-ROM, RoHS |
|---|---|
| DRPC-124-EHL-JC-R10 | Fanless System with Intel® Celeron® J6412 2.0GHz (up to 2.6 GHz, Quad Core, TDP 10W), on board 8GB LPDDR4x memory, 1 x GbE Lan, 3 x 2.5GbE Lan, 1 x HDMI™, 12-28V DC, RoHS |
Package Contents
| Package Content |
|
|---|
