Get More Power in Less Space
Intel® Quad-Core Processor Burst up to 2.6 GHz
Powered by quad-core Intel® Celeron® J6412 processor with Intel® UHD Graphics, the TANGO-3010 can deliver high levels of CPU and graphics performance at low power. The integrated Intel processor can provide a maximum of up to 2.6 GHz burst frequency and up to 73% improved CPU performance from previous generation. It also takes a huge leap forward in graphics capabilities with Intel® UHD Graphics, having the ability to drive a maximum resolution of 4Kp30 on up to two simultaneous displays.
Intel® Celeron® J6412 (Elkhart Lake) 4C/4T, Burst at 2.6GHz
Intel® Celeron® J3455 (Apollo Lake) 4C/4T, Burst at 2.3GHz
On-board 8GB LPDDR4x Memory
Rugged, Faster Speed, Less Power
8GB dual-channel LPDDR4x soldered memory brings the benefits with faster memory speeds at 4267MT/s, lower voltage and reliable hardware. It reduces the power consumption of the memory system by 18~20% through cutting output driver power by 50%, from 1.2 V to 0.6 V. It takes lesser space on-chip for better system airflow and shorten the trace for better signal transmission. Moreover, the soldered-on-board type enables the mini PC to deliver much more stable, solid operation compared to the socket-type memory for critical usage.
Portable, Space Saving in Compactness

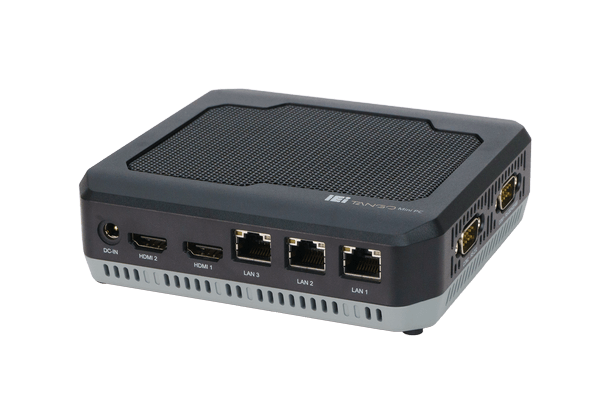

The TANGO-3010 mini industrial PC is very compact in size and light in weight, therefore, it can be placed almost anywhere, and can be VESA-mounted on the back of a display.
Easily Expandable Storage
TANGO-3010 small form factor PC has several storage options. It has an M.2 2280 SSD that supports up to 1TB. Furthermore, its 2.5-inch SATA drive bay allows for up to 2TB of storage expansion.
The four captive fasteners offer a high level of protection against vibrations. The screws will not fall off when loosened and it helps prevent screw missing or misplaced after maintenance.
An easy-access underside panel allows users to replace and upgrade NVMe SSD. All you need is a screwdriver.
With a simple, intuitive step that requires no tool, the HDD/SSD can be securely installed into the mini PC. The 2.5-inch drive bay supports 5mm to 9.5mm HDD/SSD in height.
3-Side All Inclusive Connectivity
IEI TANGO-3010 is well-equipped for a wide range of functions. This gives TANGO-3010 the versatility to be deployed across a wide range of uses, including digital signage, point-of-sale systems and industrial edge computing systems.
Triple 2.5GbE Low Latency LAN Ports Boost for Your Applications
The three RJ45 LAN ports all provide 2.5 gigabit Ethernet connectivity that gives an immediate boost to overall network performance and improves the bandwidth required at large-scale workloads. Benefits of triple 2.5G LAN include
Get Your Office Ready with Compact Software Defined Router
The growing number of connected personal and edge devices has led to an overall increase in network density. The compact TANGO system could be used as a Software Defined Router. We offers a multi-LAN hardware platform allowing to install with firewall/router computer software such as OpenWrt and pfsense OS. It is ideally suited for a wide range of applications, such as SOHO and SMB networking infrastructure.
High Definition 4K Dual Screens with Built-in CEC
Remotely switch on/off mini PC by using HDMI™ monitor's remote control
Users can control the TANGO-3010 connected to an HDMI™ display/TV by using the TV remote control. When the user switch on the display/TV, it will be turned on along with the display/TV. With this function, it is easy to control the mini PC that is blocked from receiving IR commands due to its location.
*Only work with the HDMI™-CEC display/TV
Independent dual 4K video playback
Featuring the latest Intel® UHD Graphics with 16 EUs, IEI mini PC provides outstanding 4K dual display via two HDMI™ 1.4b ports for immersive simultaneous visual experiences. It delivers powerful hard decoding capability for you, ensuring no delay on streaming 4K videos.
Ready for Any Scenario
Full-function PC in a small form factor that can mount alongside display or behind a display fits the varying needs of different projects in the field.
Fanless Thermal Conductivity and Heat Dissipation at 40°C
The TANGO-3010 has unique cooling features, a new heat sink design for better heat dissipation and more efficient conductivity. This enhances two-dimensional heat conduction and reduces flow impedance for better heat dissipation in this fan-less system.
IEI thermal optimization technology provides valuable feasibility studies prior to the building of prototypes, assisting with the placement of optimized components and the design of heatsink pattern, thermal interface materials, as well as air flow and ventilation locations.
|SBC Form Factor
|Cooling method / System Fan
1 x 2.5” SATA 6Gb/s HDD/SSD bay
(support up to 9.5 mm SSD)
1 x Power button (with LED)
1 x Reset button
1 x Power LED
1 x HDD LED
|ABS Plastic + Aluminum
|Black C & grey (Pantone 430C)
|139 x 137 x 39.8 (mm)
|0°C ~ 40°C with air flow (SSD)
|10% ~ 95% non-condensing
|10-500 Hz, 1.04 Grms, random, 1 hr/axis (SSD)
|Half-sine wave shock 5G, 11ms, 100 shocks per axis (SSD)
|Safety & EMC
|Microsoft® Windows® 10/11, Linux
|Fanless System with Intel® Celeron® J6412 2.6 GHz (up to 2.6 GHz, quad core, TDP 10W), 8GB onboard memory, 3 x 2.5GbE LAN, 2 x HDMI™, 4 x USB, 12V DC, Wifi-6E, RoHS
