Overview

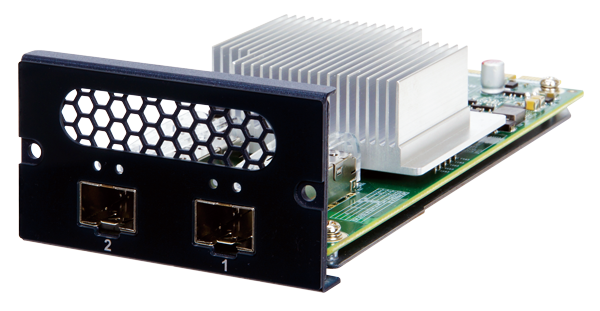

• 2 x Mellanox ConnectX-4 Lx EN• 2 ports 25 GbE SFP28 connector• PCIe 3.0 x8• RoHS /CE/FCC compliant -
Features
Architecture Diagram
Smart NIC is getting more and more important. Faster networking and data center impose too much networking overhead on the CPU cores, not a doubt, the compute virtualization, software-defined storage (SDS), and hyperconverged infrastructure (HCI) and other network applications, make this problem worse, as they create more east-west traffic.
Smarter NICs – IEI PulM series can resolve all this virtualization and packet processing faster, more efficiently, and at lower cost than standard CPUs. It is ideal for users want to, for instance, build up a network server with virtual machine and provide storage function.
Offload Functions
IEI provides four brands of NIC from Aquantia, Intel, Broadcom, Mella-nox, and with 1G, 2.5G, 5G, 10G or 25G different kinds of speed.
-
Specifications
-
Hardware Spec.
Spec Item Description Physical Characteristics Dimensions (LxWxH) (mm) 165.50 (L) x 77.8 (W) x 44.2 (H) I/O Interface Ethernet 2 x SFP+ (SFP28) Environment Operating Temperature 0°C ~ 40°C (32°F ~ 104°F) Storage Temperature -20°C ~ 75°C (-4°F ~ 167°F) Humidity 5% ~ 90% RH, Non-condensing Certifications Safety & EMC RoHS/CE/FCC compliant Card Slot Interface PCIe PCIe 3.0 x8 Card Features Speed 1GbE/10GbE/25GbE Controller Chip Mellanox ConnectX-4 Lx EN -
Ordering Info.
Item No. Description PulM-25G2SF-MLX-R10 Mellanox ConnectX-4 Lx based Network Interface Card support Dual 25GbE with 2 x SFP28 by 1 PCIe 3.0 x 8 Interface. -
Package Contents
-
1 x PulM-25G2SF-MLX module
-
1 x L-shaped T10 Plum Wrench
-
1 x QIG
-
-
-
