• Overview

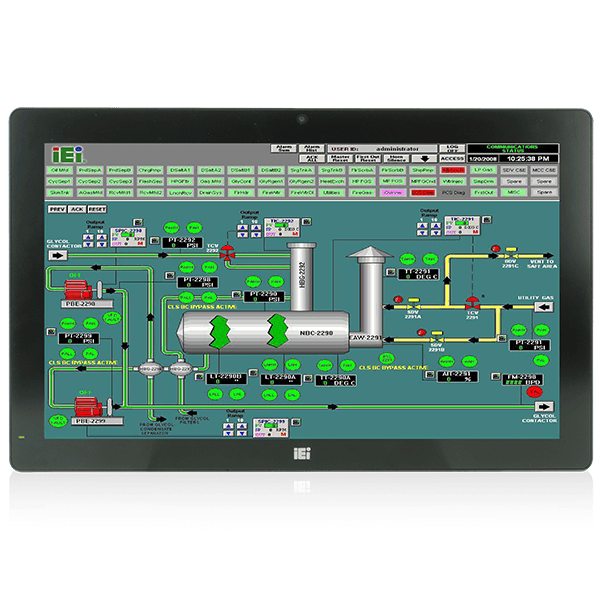

    ● W21.5” light industrial interactive panel PC
    ● 9 V ~ 30 V wide range DC power input
    ● Selectable AT/ATX power mode
    ● Built-in speakers
    ● One mSATA slot
    ● IP64 compliant front panel
    ● IEI One Key Recovery solution alllows you to create rapid OS backup and recovery (suggested with over 4GB storage capacity)
  • Features


    Waterproof front panel

    The AFL3-W22C-ULT3 has an IP64 waterproof front panel , which features a flat, sleek design to greatly reduce maintenance effort.


    Fanless and easy maintenance

    The AFL3-W22C-ULT3 is a fanless panel PC, and its heatsink is situated on the back side. This design makes the AFL3-W22C-ULT3 an easy-to-clean and reliable system for factory automation or general purpose environment


    6th generation Intel® Skylake platform

    The AFL3-W22C-ULT3 is pre-installed with Intel® Skylake Core™ i5 or Celeron® processor , to provide high performance for factory automation or variety of applications.

    Intel® Skylake-platform-panel-pc

    I/O Interface



  • Specifications

    • Hardware Spec.

      Spec Item Description
      CPUIntel® Core™ i5 and Celeron® ULT Processor
      Storage1 x 2.5” SATA 3Gb/s HDD bay
      1 x M.2 M key PCIe storage (2280 or 22110)
      1 x mSATA slot
      Bluetoothv4.0 (M.2 slot)
      Wi-FiIEEE 802.11a/b/g/n/ac
      I/O Interface
      Ethernet2 x Intel® I211-AT PCIe GbE controller
      I/O Ports and Switches1 x RS-232 by DB-9 (RI/5V/12V)
      1 x RS-232/422/485 by DB-9 (RI/5V/12V)
      2 x GbE LAN
      4 x USB 3.0
      1 x HDMI output
      1 x Power switch
      1 x Reset button
      1 x AT/ATX switch
      1 x 9-30V lockable power jack
      AudioAMP 3W + 3W (internal speaker)
      Audio CodecALC892
      RAMTwo 260-pin DDR4 SO-DIMMs (system max.32GB)
      Operating Temperature-20°C~50°C
      Humidity10% to 95% (non-condensing)
      Storage Temperature-20°C~60°C
      IP LevelIP 64 compliant front panel
      Physical Characteristics
      ColorBlack C
      MountingPanel, Wall, Stand and Arm VESA 75mm x 75mm / 100mm x 100mm
      Dimensions (LxWxH) (mm)528 x 336 x 68
      Construction Front PanelPC + ABS Plastic
      Resolution1920 x 1080
      Brightness (cd/m2)250
      Contrast Ratio1000:1
      LCD Color16.7M
      Pixel Pitch (mm)248.25 (H) × 248.25 (V)
      Viewing Angle (H-V)170°(H) / 160°(V)
      Backlight MTBF30,000 (LED backlight panel)
      Touch ScreenProjected capacitive type with USB interface
      Touch ControllerEETI EXC3180
      Other Features
      Microphonedigital microphone
      Camera2-megapixel with low light function
      OSD FunctionSoftware OSD
      I/O Interface
      I/O Interface1 x RS-232 (DB-9 (RI/5V/12V))
      1 x RS-422/485 (DB-9 (RI/5V/12V))
      4 x USB 3.2 Gen1x1
      1 x HDMI
      2 x LAN (GbE)
      1 x Reset Button
      1 x Power Switch
      1 x AT/ATX switch
      1 x Power In (DC jack)
    • Ordering Info.

      Item No. Description
      AFL3-W22C-ULT3-i5/PC/4G-R13 Wide 22” 250 cd/m² 1920x1080 Panel PC with Intel® 14nm 6th Generation Mobile Core™ i5-6300U (15W) on-board Processor (ULT), 1*4GB DDR4 RAM, 802.11a/b/g/n/ac WiFi module, PCAP touch, 2M camera, microphone , with AG, R13
      AFL3-W22C-ULT3-C/PC/4G-R13 Wide 22” 250 cd/m² 1920x1080 Panel PC with withIntel® 14nm 6th Generation Mobile Celeron®3955U (15W) on-board Processor (ULT), 1*4GB DDR4 RAM, 802.11a/b/g/n/ac WiFi module, PCAP touch, 2M camera, microphone,with AG,R13
    • Package Contents

      • 4 x Round head machine screw

      • 6 x Pan head machine screw

      • 1 x Power cord

      • 1 x Power adapter
