1. Extended-ITX SBC supports LGA1700 Intel® 12th/13th/14th Generation Core™ i9/i7/i5/i3, Pentium® and Celeron® processor
2. Four 288-pin 5200 MHz Dual-Channel DDR5 UDIMMs
3. Double independent display via HDMI and DP
4. Support double Intel® I226V 2.5GbE
5. Support PCIe Gen4 x16 and M.2 M key expansion
Hardware Spec.
| Form Factor | |
|---|---|
| Form Factor | Mini-ITX SBC |
| System | |
| CPU | LGA1700 socket supports 12th/13th/14th generation Intel® Core™ i9/i7/i5/i3/Pentium®/ Celeron® Processor (up to 125W TDP CPU) |
| Memory | Four 288-pin 5200 MHz Dual-Channel DDR5 UDIMMs |
| Memory Max. | up to 192GB |
| Cooling method / System Fan |
1 x CPU fan connector (1x4 pin) 2 x System fan connector (1x4 pin) |
| Physical Characteristics | |
| Dimensions (LxWxH) (mm) | 200mm x 170mm |
| Net Weight | GW: 900g / NW: 400g |
| Storage | |
| Storage | 4 x SATA : 6Gb/s |
| I/O Interface | |
| Display Output | 1 x Display Port : DP 1.4a (up to 4K @60Hz) |
| 2 x HDMI™ : HDMI 2.0b (up to 4K @60Hz) | |
| Ethernet |
2 x LAN - LAN1: Intel® I226V 2.5GbE controller LAN2: Intel® I226V 2.5GbE controller |
| Audio |
HD Audio - Realtek ALC888S HD codec 1 x Audio Jack (Line-out, Mic-in) on rear IO 1 x Analog audio (2x5 pin) |
| I/O Interface | 1 x DIO : 12-bit digital I/O (2x7 pin) |
| 2 x External RS-232/422/485 : RS-485 support AFC | |
| 2 x External USB 2.0 : Type-A | |
| 4 x External USB 3.2 Gen2x1 : Type-A, 10Gb/s | |
| 1 x I²C : 1x4 pin | |
| 2 x Internal USB 3.2 Gen1x1 : 2x10 pin, P=2.00, 5Gb/s | |
| Expansion | 1 x PCIe x16 : with x16 Signal Gen4 |
| Other Features | |
| TPM | 2x10 pin |
| Power | |
| Power Consumption |
3.3V@0.98A, 5V@4.9A, 12V@5.75A, 5VSB@0.36A (Intel® Core™ i9-12900K CPU with 48 GB 5600 MHz DDR5 memory, EuP mode disabled) |
| Power Supply |
Support AT/ATX mode ErP/EuP Compliant |
| Environment | |
| Operating Temperature | -10 ~ 60℃ |
| Storage Temperature | -30°C ~ 70°C |
| Humidity | 5% ~ 95%, non-condensing |
| Card Slot Interface | |
| M.2 | 1 x M.2 M Key (PCIe X4 gen3 2280) |
Ordering Information

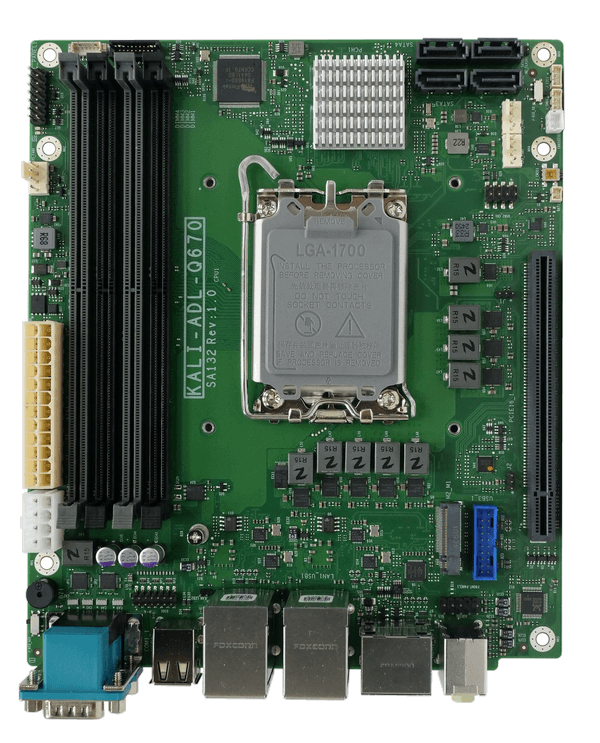

| KALI-ADL-Q670-R10 | Extended-ITX SBC supports LGA1700 Intel® 12th/13th/14th Generation Core™ i9/i7/i5/i3, Pentium® and Celeron® processor, DDR5, Dual displays, dual 2.5GbE LAN, USB 3.2, SATA 6Gb/s and RoHS |
|---|
Package Contents
| Package Content |
|
|---|
