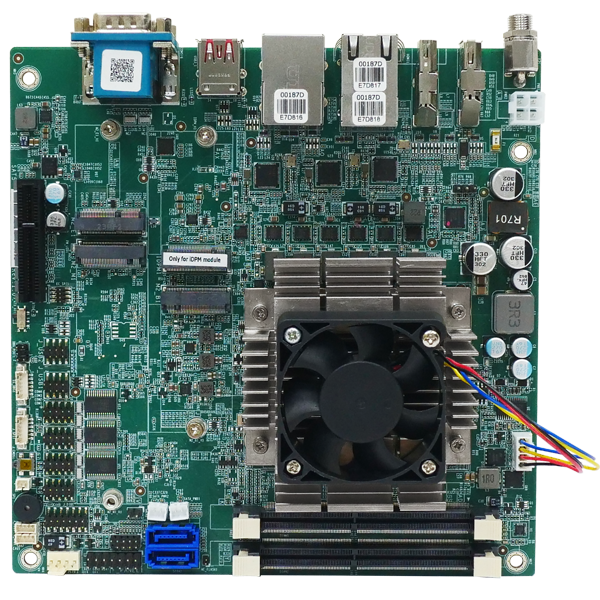

» Mini-ITX SBC support Intel® Alder Lake-N SoC Processor
» Support one 4800 MHz DDR5 SO-DIMM
» Triple independent display via dual HDMI, DP
» Support Dual Intel® I226V 2.5GbE controller
» Support PCIe Gen3 x4, M.2 M key, and M.2 A key expansion
Outsized Performance in a Compact Form Factor
Maximize the potential of your edge computing projects with the KINO-ADL-N Mini-ITX SBC—a compact yet high-performance solution powered by the Intel® N-series processors and Intel Atom® processors x7000E Series. Designed for embedded systems, industrial automation, and digital signage, this Mini-ITX board supports up to 16GB of 4800MHz DDR5 SO-DIMM memory for lightning-fast data processing and seamless multitasking. With versatile expansion options and a flexible 12~28V DC input, the KINO-ADL-N combines robust performance, flexibility, and efficiency in a space-saving design.
Intel® N-series processors Intel Atom® processors x7000E
Triple Independent Displays
DDR5 4800MHz SO-DIMM
Dual Intel® 2.5G Ethernet
PCIe x4 Expansion
Dual M.2 slots
High Performance vs. Low Power Consumption, Versatile Application Choices
Our KINI-ADL-N offers four Intel low-power processor SKUs to meet various application needs, ranging from industrial automation and smart IoT to edge computing and embedded systems, ensuring an optimal balance between performance and power efficiency. These processors are ideal for video- and imaging-intensive applications, as well as AI-enabled edge devices that benefit from a small footprint and low power consumption.
|
|
|
|
|
|---|---|---|---|---|
| Model | KINO-ADL-N200 | KINO-ADL-N97 | KINO-ASL-R3 | KINO-ASL-R4 |
| CPU | Intel® Processor N200 | Intel® Processor N97 | Intel Atom® x7433RE Processor | Intel Atom® x7835RE Processor |
| Cores/Threads | 4C/4T | 4C/4T | 4C/4T | 8C/8T |
| Clock Speed (GHz) | 3.7 GHz | 3.6 GHz | 3.4 GHz | 3.6 GHz |
| GPU | Intel UHD (32 EU) | Intel UHD (24 EU) | Intel UHD (32 EU) | Intel UHD (32 EU) |
Triple Independent Display Support Powered by Intel UHD Graphics
Powered by Intel® UHD Graphics, the KINO-ADL-N supports triple independent displays through dual HDMI and DisplayPort outputs. This configuration enables professionals to connect up to three high-resolution screens simultaneously, ensuring smooth performance and high-quality visuals for demanding visual applications. Additionally, the board supports Intel® AVX2 and VNNI for faster AI inference and media transcoding, enhancing its capability to handle intensive computing tasks efficiently.
Exceptional Memory and Networking Capabilities
DDR5 SO-DIMM
The KINO-ADL-N supports up to 16GB of 4800MHz DDR5 SO-DIMM memory, delivering high-speed data transfer and enhanced system responsiveness. Enjoy smooth multitasking and efficient performance, enabling the system to handle demanding tasks with ease.
Dual 2.5GbE LAN Ports
Featuring dual 2.5GbE LAN ports, the KINO-ADL-N delivers high-speed and reliable network connectivity. These ports ensure fast data transmission and stable communication, providing robust performance for seamless networking in environments where high-speed, low-latency connections are critical.
Versatile Expansions
PCIe Gen3 x4 Slot Open-ended
Equipped with an open-ended PCIe Gen3 x1 slot, the KINO-ADL-N allows for flexible connectivity to a range of expansion cards, including those requiring different lane configurations. This design maintains compatibility while offering flexibility in hardware integration.
M.2 Keys
● M.2 A key 2230 slot: Enables seamless integration of high-speed Wi-Fi and Bluetooth modules via PCIe Gen3 x1 and USB 2.0 interfaces.
● M.2 M key 2242/2280 slot: Provides a robust solution for high-performance NVMe storage, ensuring faster data access and increased system responsiveness.
I/O Interface
Applications
Edge Computing
Point of Sale (POS) Systems
Industrial Automation
Smart Home Automation

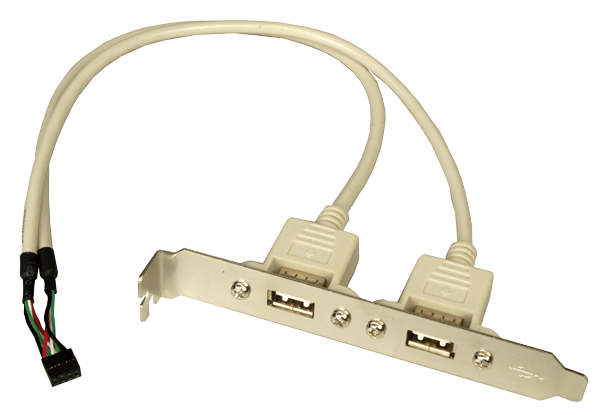

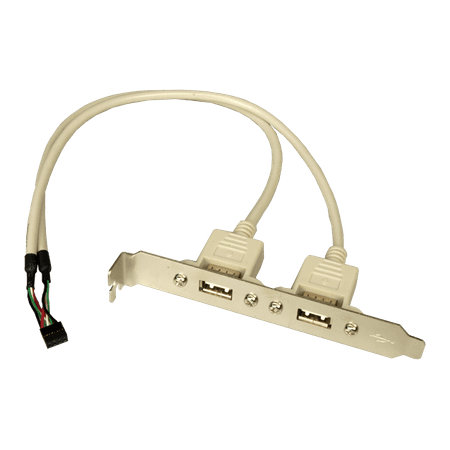

Optional Accessories

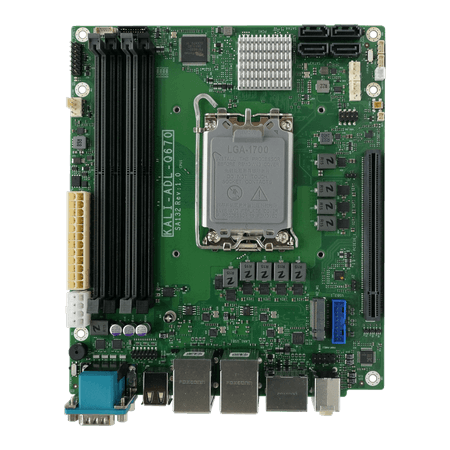

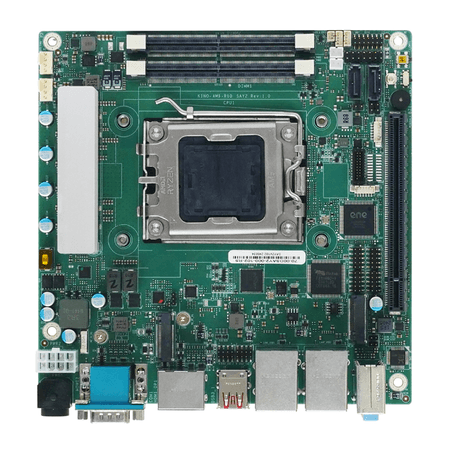

People Also Viewed
Hardware Spec.
| Form Factor | |
|---|---|
| Form Factor | Mini-ITX SBC |
| System | |
| CPU |
|
| Memory | 1 x 262-pin 4800 MHz DDR5 SO-DIMM (Support IBECC) |
| Memory Max. | up to 16G |
| Cooling method / System Fan |
1 x CPU fan connector (1x4 pin) 1 x System fan connector (1x4 pin) |
| Physical Characteristics | |
| Dimensions (LxWxH) (mm) | 170mm x 170mm |
| Net Weight | GW: 900g / NW: 400g |
| Storage | |
| Storage | 2 x SATA : 6Gb/s |
| I/O Interface | |
| Display Output | 1 x Display Port : 1.4 4K@60 |
| 2 x HDMI™ : 1.4 4K@30 | |
| Ethernet |
2 x LAN - LAN1: Intel® I226V 2.5GbE controller LAN2: Intel® I226V 2.5GbE controller |
| Audio |
HD Audio : Realtek ALC888S HD Audio codec 1 x Audio jacks (line-out/MIC-in) on rear IO 1 x Front audio (2x5 pin) |
| I/O Interface | 1 x DIO : 12-bit digital I/O (2x7 pin) |
| 2 x External USB 2.0 | |
| 2 x External USB 3.2 Gen2x1 : 10Gb/s | |
| 1 x I²C : 1x4 pin | |
| 4 x Internal RS-232 : 2x5 pin, P=2.0 | |
| 2 x Internal RS-232/422/485 : 2x5 pin, P=2.0 | |
| 2 x Internal USB 2.0 : 2x4 pin, P=2.0 | |
| 1 x Internal USB 3.2 Gen1x1 : TypeA, 180° (Only embedded CPU) | |
| Expansion | 1 x PCIe x4 : PCIe Gen3 x1 signal |
| Other Features | |
| TPM | 2x10 pin |
| Power | |
| Power Consumption |
12V@4.304A, 19V@2.744A, 24V@2.241A, 28V@1.943A, (Intel® N97 @2.00GHz CPU with Innodisk M5S0-AGS2NCVP 4800 16GB memory, max. loading, EuP mode ensabled) |
| Power Supply |
Input voltage range：12~28V 1 x internal power connector (2x2 pin) 1 x external DC power jack (Ø2.6mm) ErP/EuP Compliant |
| Environment | |
| Operating Temperature | -10°C ~ 60°C |
| Storage Temperature | -30°C ~ 70°C |
| Humidity | 5% ~95%, non-condensing |
| Card Slot Interface | |
| M.2 |
1 x M.2 A Key 2230 for WIFI & BT (PCIe Gen3 x1 & USB 2.0) 1 x M.2 M key 2242/2280 (PCIe Gen3 x1) |
Ordering Information
| KINO-ADL-N97-R10 | Mini-ITX SBC with Intel® Alder Lake-N N97 SoC Processor,DDR5 SO-DIMM, 12~28V DC input, Triple Display, dual Intel 2.5GbE, USB 3.2, M.2 ,SATA, RoHS |
|---|---|
| KINO-ADL-N200-R10 | Mini-ITX SBC with Intel® Alder Lake-N N200 SoC Processor,DDR5 SO-DIMM, 12~28V DC input, Triple Display, dual Intel 2.5GbE, USB 3.2, M.2 ,SATA, RoHS |
Package Contents
| Package Content |
|
|---|
