PUZZLE-7030A

1U Rackmount Network Appliance with Intel® Xeon® D Processor series (Code Name: Ice Lake-D LCC), up to 1 OCP3.0 slot and 1 x FH PCIe Gen4 x8 or 2 x FH PCIe Gen4 x4 slots

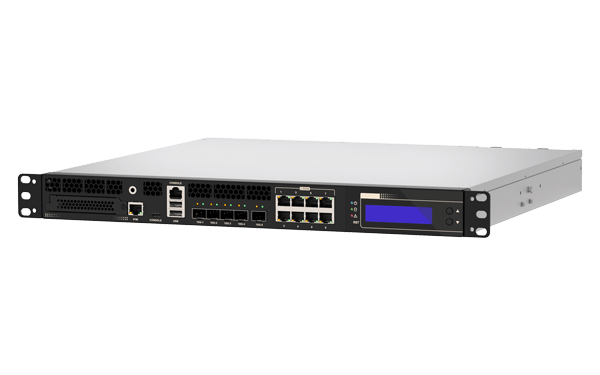

IEI PUZZLE-7030A intel 1U network appliance
IEI PUZZLE-7030A intel 1U network appliance photos
IEI PUZZLE-7030A intel 1U network appliance photos
IEI PUZZLE-7030A intel 1U network appliance photos
IEI PUZZLE-7030A intel 1U network appliance photos
IEI PUZZLE-7030A intel 1U network appliance photos
  • IEI PUZZLE-7030A intel 1U network appliance
  • IEI PUZZLE-7030A intel 1U network appliance photos
  • IEI PUZZLE-7030A intel 1U network appliance photos
  • IEI PUZZLE-7030A intel 1U network appliance photos
  • IEI PUZZLE-7030A intel 1U network appliance photos
  • IEI PUZZLE-7030A intel 1U network appliance photos
» Intel® Xeon® D Processor series (Code Name: Ice Lake-D LCC)
» 4 x DDR4 2400M/2933Hz ECC UDIMM/RDIMM, up to 256G
» 8 x 2.5 Gbps RJ-45 LAN ports & 5 x 10 Gbps SFP+ ports
» 1 x FH PCIe Gen4 x8 or 2 x FH PCIe Gen4 x4 and 1 x OCP 3.0 slot
» 1 x RJ-45 Console, 2 x USB 3.0, LCM
» 2 x 2.5” SATA slot, 2 x M.2 M key 2280 (SATA/PCIe Gen3 x2) , 1 x M.2 B key for IPMI module (support IEI iRIS2 IPMI module), 1 x USB DOM
» 320W Redundant / Non-redundant PSUs

Hardware Spec.

Form Factor
Form Factor 1U
System
CPU Intel® Xeon® D Processor series (Code Name: Ice Lake-D LCC)
Chipset Integrated in CPU
Memory DDR4 2400M/2933Hz ECC UDIMM/RDIMM
Memory Max. Up to 256G
Cooling method / System Fan 3x Cooling Fans with Smart Fan
1 x System Fan
Physical Characteristics
Rack Height 1U
Dimensions (LxWxH) (mm) 436.2 x 454.3 x 44.2
Storage
Storage 2 x 2.5” SSD/HDD Bay : support SATA 3.0 (6 Gbps)
I/O Interface
Ethernet 5 x SFP+ : 10 GbE
8 x LAN : 2.5 GbE RJ45 (Intel®KTI225V)
I/O Interface 1 x Console port(s) : RJ45
2 x USB 3.0
Expansion PCIe x8 : 1 x FH PCIe Gen4 x 8 or 2 x FH PCIe Gen4 x 4
3 x M.2(NGFF) :
2 x M key 2280 (SATA/PCIe Gen3 x2)
1 x B key for IPMI module (support IEI iRIS2 IPMI module)
Power
Power Supply 320W Redundant/non-redundant PSUs
Environment
Operating Temperature 0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature -10°C ~ 50°C
Humidity 5% ~ 90% non-condensing
Certifications
Safety & EMC RoHS, CE/FCC
OS Support
OS Support Linux Ubuntu 18.04

Ordering Information

PUZZLE-7030A-R20 1U Rackmount Network Appliance with Intel Ice Lake-D LCC processor

Package Contents

Package Content
  • 1 x Power cord

  • 1 x Ethernet CAT5e cables

  • 6 x Screw for 2.5-inch drives

  • 4 x Rubber foot

  • USB to console cable : Option

  • RS232 to console cable : Option

  • Heatsink : Option
