End of Life Notice
* Effective Date: 2024/09/06

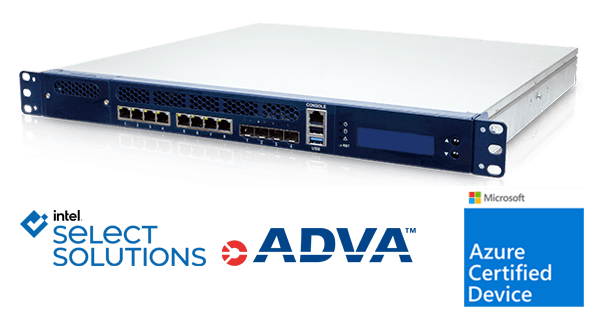

» Intel® Xeon D-2100 series processor (Skylake-D) with optional Intel® QAT
» Support eight GbE RJ-45 via Intel® I211-AT, four 10 GbE SFP+ and IEI networking module
» 8 x 288-pin RDIMM DDR4 2133 / 2667MHz, RDIMM up to 256GB / LRDIMM up to 512GB
» 1 x RJ-45 Console, 1 x USB 3.2 Gen 1 (5Gb/s), 1 x USB 2.0, LCM
» 2 x 2.5＂ SATA drive bay, 2 x M.2 M key 2280 (PCIe x4), 1 x PCIe Mini with SIM card
» Support one PCIe 3.0 x8 slot, one PulM module slot
» Redundant PSUs
Resources
Product News
eCatalog
Ordering Information
| PUZZLE-IN004-XD5/R-R10 | 1U Rackmount Network Appliance with Intel® Xeon® D-2187NT Processor, eight 1GbE, four 10 GbE, one PulM module slot and one PCIe expansion, RoHS |
|---|---|
| PUZZLE-IN004-XD4/R-R10 | 1U Rackmount Network Appliance with Intel® Xeon® D-2177NT Processor, eight 1GbE, four 10 GbE, one PulM module slot and one PCIe expansion, RoHS |
| PUZZLE-IN004-XD3/R-R10 | 1U Rackmount Network Appliance with Intel® Xeon® D-2166NT Processor, eight 1GbE, four 10 GbE, one PulM module and one PCIe expansion, RoHS |
| PUZZLE-IN004-XD2/R-R10 | 1U Rackmount Network Appliance with Intel® Xeon® Intel Xeon D-2146NT Processor, eight 1GbE, four 10 GbE, one PulM module and one PCIe expansion, RoHS |
| PUZZLE-IN004-XD1/R-R10 | 1U Rackmount Network Appliance with Intel® Xeon® D-2145NT Processor, eight 1GbE, four 10 GbE, one PulM module and one PCIe expansion, RoHS |
Package Contents
| Package Content |
|
|---|
