HTB-150-N6210

Medical Embedded System

HTB-150-N6210 Left side
HTB-150-N6210 right side
HTB-150-N6210 front
HTB-150-N6210 back
  • HTB-150-N6210 Left side
  • HTB-150-N6210 right side

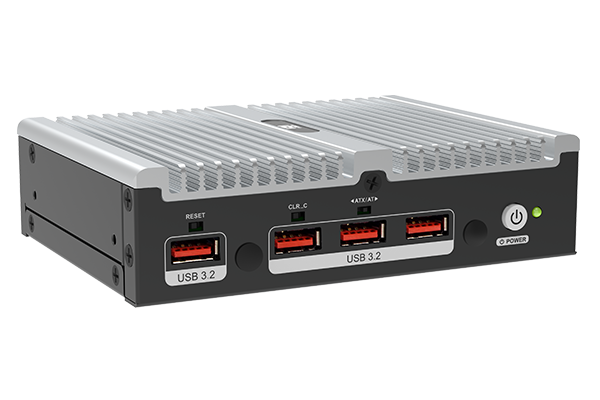

  • HTB-150-N6210 front
  • HTB-150-N6210 back
» Intel® Celeron® Processor N6210 (code name: Elkhart Lake)
» Fanless system
» 4 x USB 3.2 Gen 2
» On-board eMMC 32GB
» On-board LPDDR4x 8GB

Intel® Celeron® Processor N6210

(code name: Elkhart Lake)

CPU TDP 6.5W

Either lower power consumption at the same performance, or higher performance at equal TDP

Up to a 1.7x improvement in single-thread performance

Processor performance boost

Up to a 1.5x improvement in multi-thread performance generation over generation

Processor performance boost

Up to 2x performance improvement in graphics over previous generation

Doubling graphics speed for immersive experiences

Bay Trail vs. Elkhart Lake

Product Name Previous product version HTB-150-N6210
CPU N2930 N6210
Platform Bay Trail Elkhart Lake
Node 22 nm 10 nm
Total Cores 2 4
Total Threads 2 4
Processor Base Frequency 1.83 GHz 1.20 GHz
Integrated Graphics Intel® HD Graphics for
Intel® Atom®Processor Z3700 Series
Intel® UHD Graphics for
10th Gen Intel® Processors
TDP 7.5 W 6.5 W
Max Memory Size 8 GB 32 GB
Memory Types DDR3L 1333 LPDDR4x 8GB (on board)
Use Cases Embedded Broad Market Commercial Temp,
PC/Client/Tablet
PC/Client/Tablet

Fanless System

Metal chassis

Low failure rate

The easy-to-clean surface can lower dust accumulation; solid construction makes it highly durable

The housing is entirely made of metal, enhancing cooling, durability and strength.

Large area of heat fins

Silently

Without fan, the system can run silently and be a quiet partner with patients

Heat fins are metal fins that increase the surface area for heat dissipation, improving the cooling performance. The larger the area of the heat fins, the more effective they are in dissipating heat.

Metal chassis

Low failure rate

The easy-to-clean surface can lower dust accumulation; solid construction makes it highly durable

The housing is entirely made of metal, enhancing cooling, durability and strength.

Large area of heat fins

Silently

Without fan, the system can run silently and be a quiet partner with patients

Heat fins are metal fins that increase the surface area for heat dissipation, improving the cooling performance. The larger the area of the heat fins, the more effective they are in dissipating heat.

USB 3.2 Gen 2 (Type A)

USB 3.2 Gen 2 provides a single lane of 10Gbps. This mode – marketed under SuperSpeed USB 10Gbps – is also the fastest speed that Thunderbolt 3 supports natively. Note that passive cables are mostly 1m or shorter in length in order to maintain optimal signal quality transferring data in USB 3.2 Gen 2.

Previous specifications USB 1.0 USB 2.0 USB 3.0
USB 3.1 Gen 1
USB 3.1
USB 3.1 Gen 2
USB 3.2
USB 3.2 Gen 2x2
Newer
specification
USB 1.0
(no change)
USB 2.0
(no change)
USB 3.2 Gen 1 USB 3.2 Gen 2 USB 3.2 Gen 2x2
Maximum transfer rate 12 Mb/s 480 Mb/s 5 Gb/s 10 Gb/s 20 Gb/s

On-board LPDDR4x 8GB

On-board eMMC 32GB

M.2 M key & A key

LPDDR4x is an enhancement bringing even lower voltage, allowing more power efficient memory and ultimately, longer battery life for your devices.

It is ideal for demanding applications and is highly reliable. Considering its size, eMMC is capable of handling extremely large amounts of data in such a small footprint.

AM.2 2230 A key slot

It supports Wi-Fi and Bluetooth modules, providing a convenient and space-saving solution for integrating wireless functionality into a system.

BM.2 2280 M key slot

It offers high-speed data transfer rates, increased storage capacity, and improved system responsiveness.

Space Saving & Safe

Compact size

It is small enough to fit in the palm of your hand, making it convenient to carry and use in any setting. Its small size makes it versatile and suitable for various environments.

Medical certification

We ensure it is safe and of high quality for medical use, providing peace of mind for users.

Applications

I/O Interfaces & Dimensions


Hardware Spec.

System
Processor Intel® Celeron® Processor N6210
Supported OS Windows 10; Windows 11; Linux Ubuntu
Network
Wi-Fi IEEE 802.11a/b/g/n/ax, Intel® Wi-Fi 6E AX210 (optional)
Bluetooth v5.2
Storage
Storage On-board eMMC 32GB
RAM On-board LPDDR4x 8GB
Expansion Slots
Expansion Slots 1 x M.2 2230 A key slot (PCIe + USB)
1 x M.2 2280 M key slot (PCIe)
I/O Interface
Front I/O 1 x Power on/off switch (with power LED)
1 x Reset button
1 x Clear CMOS
1 x AT/ATX switch
4 x USB 3.2 Gen 2 (Type A)
Rear I/O 1 x 12V DC jack
1 x RS-232
1 x HDMI™ out
2 x GbE LAN
Indicator&Buttons
Indicators Power LED
Physical Characteristics
Thermal Fanless
Construction Material Extruded aluminum alloys
Mounting VESA 75 x 75 mm
Weight (Net) (kg) 0.688
Weight (Gross) (kg) 1.84
Dimensions (LxWxH) (mm) 137 x 102.8 x 36
Power
Power Adapter 65W medical grade power adapter
Environment
Operating Temperature 0°C ~ 40°C
Storage Temperature -20°C ~ 60°C
Humidity 10% ~ 95% (non-condensing)
Vibration 1G
Operating Shock 5G peak acceleration (11ms duration)
Non-operating shock 15G peak acceleration (11ms duration)
Certifications
Safety & EMC CE, FCC Class B Part18, UL 60601-1, IEC/EN 60601-1, IEC/EN 60601-1-2

Ordering Information

HTB-150-N6210-R10 Fanless embedded system, Intel® Celeron® N6210, on-board LPDDR4x 8GB, on-board eMMC 32GB, mounting kits, R10, RoHs

Package Contents

Package Content
  • 1 x Power Adapter (65W medical power adapter)

  • 1 x Power Cord (European power cord, 183 cm, C13)

  • 2 x Wall Mount Bracket (SECC, Thickness 1.5 mm)
