» IP65 front bezel
» 2 variable DC outputs
» 10-point PCAP touchscreen
» Hot-swappable batteries
» Intelligent working station
» 23.8” FHD medical monitor
» Internal Wi-Fi antenna
Featuring 24” FHD touch screen, 2 DC output options and support of 3 hot-swappable batteries, the MPOCm is designed to meet hospital personnel's expectations for a flexible and efficient medical monitor.
Save Time at Your Work
With 2 DC output options, you can connect your devices fast, have high mobility, and keep the power and productivity with no interruption.
DC out
2Options
I/O ports
7Variety
DC Out
Control panel

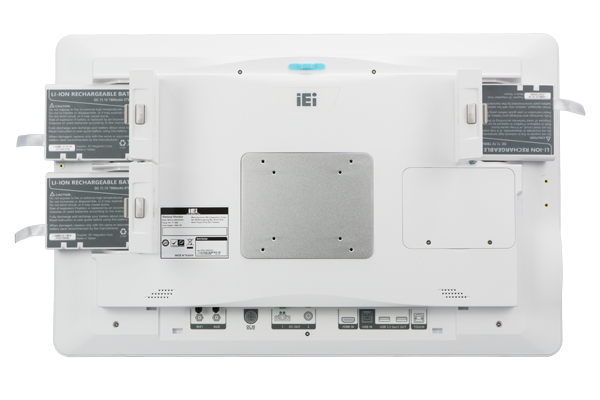

Hot-swappable battery
Same Size, More Capacity
- ● Li-ion rechargeable battery pack
- ● Only 460 grams in weight
- ● CB 62133, 2013/56/EU, UN38.3+1.2M
Battery Capacity
1.2xLager
Saved Charge time
12%Variety
Battery Management App
IEI rolls out a remote monitoring solution to cope with the complicated maintenance work. User friendly UI and auto reminder are both designed into the solution.
IEI Battery
Monitoring App
Client
IEI Battery
Monitoring App
Host
Easy to Integrate in Demanding Medical Enveirnment
Golden Ratio touchscreen Display
IEI rolls out a remote monitoring solution to cope with the complicated maintenance work. User friendly UI and auto reminder are both designed into the solution.
P-CAP touch
10Point
Gloves touch
5Layer
Multiple Display Mode
Health and Durability Combined
Protected against water jets from any angle.
Dust tight. No ingress of dust.
Front bezel
IP65Compatible with
Anti-NormalSaline & Blood
Applications
ICU, NICU
Pandemic Prevention
Mobile Nursing Station
Telemedicine
Hardware Spec.
| Display | |
|---|---|
| LCD Size | 23.8” |
| LCD Resolution | 1920 x 1080 |
| LCD Brightness (cd/m²) | 250 |
| LCD Contrast Ratio | 1000:1 |
| LCD Color | 16.7M RGB 6-bit (Hi-FRC) |
| LCD Pixel Pitch (mm) | 0.2745 (H) x 0.2745 (V) mm |
| LCD Viewing Angle (H-V) | 178˚/178˚ |
| LCD Backlight MTBF | 30000 |
| Touch Screen | PCAP |
| Touch Controller | EETI |
| Touch Surface Hardness | 6H |
| Audio | |
| Speaker | 2 x 2W speaker |
| I/O Interface | |

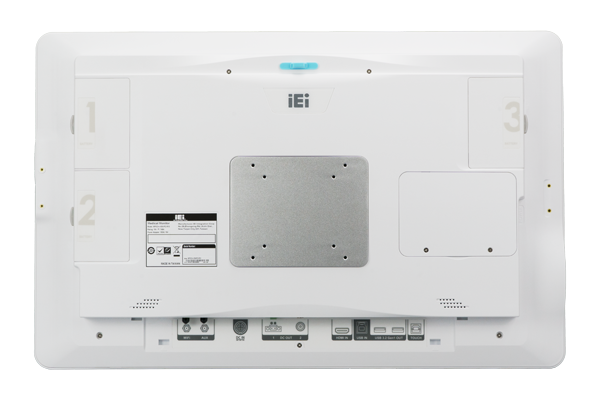

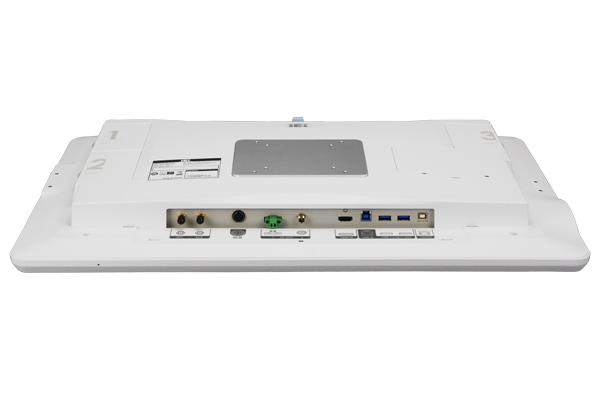

| Rear I/O |
1 x HDMI-in 1 x DC-in jack 1 x USB 2.0 (black B-type) for Touch 1 x USB 3.2 Gen1 (blue B-type) 2 x USB 3.2 Gen1 (blue A-type) 2 x Wi-Fi SMA connector(main/aux) 2 x Variable Voltage DC Power output for External Devices (55W in total) DC OUT1: 19V, 24V (45 watts) DC OUT2: 5V, 12V, 15V, 19V,24V (10 watts) *Under Battery Mode, at least 3 batteries are inserted as DC output ports enabled. |
| Indicator&Buttons | |
| Buttons | 1 x Power on/off |
| Indicators |
1 x Power indicator 3 x Battery indicator (color: blue/red) |
| Other Features | |
| OSD Function |
1 x Power on/off 1 x Volume up 1 x Volume down 1 x Brightness up 1 x Brightness down 1 x LCD on/off and touch lock for cleaning |
| Physical Characteristics | |
| Thermal | Fanless |
| Construction Material | ABS+PC plastic |
| Mounting | Wall, Stand and Arm; VESA 75/100 compliant |
| Weight (Net) (kg) | 8.18 kg (without battery) |
| Weight (Gross) (kg) | 9.53 kg (with 3 batteries) |
| Dimensions (LxWxH) (mm) | 594.6 x 379.6 x 63.2 |
| Power | |
| Input | 19V DC input |
| Output |
DC OUT1: 19V, 24V (45 watts) DC OUT2: 5V, 12V, 15V, 19V,24V (10 watts) |
| Power Adapter | 150W medical power adapter |
| Environment | |
| Operating Temperature | 0°C ~ 40°C |
| Storage Temperature | -20°C ~ 60°C |
| Humidity | 10% ~ 90% (non-condensing) |
| Vibration | 1G |
| Operating Shock | 5G peak acceleration (11ms duration) |
| Non-operating shock | 15G peak acceleration (11ms duration) |
| IP Level | Front: IP65 |
| Certifications | |
| Safety & EMC | EN 55032/35, FCC 15B, IEC/EN 60601-1 (compliance), IEC/EN 60601-1-2 (compliance) |
Ordering Information
| MPOCm-W24/PC-R10 | 23.8" 250cd/m² FHD Medical Monitor, 2* DC output, PCAP touchscreen, Support 3* TC-202 Battery, R10 |
|---|
Package Contents
| Package Content |
|
|---|
