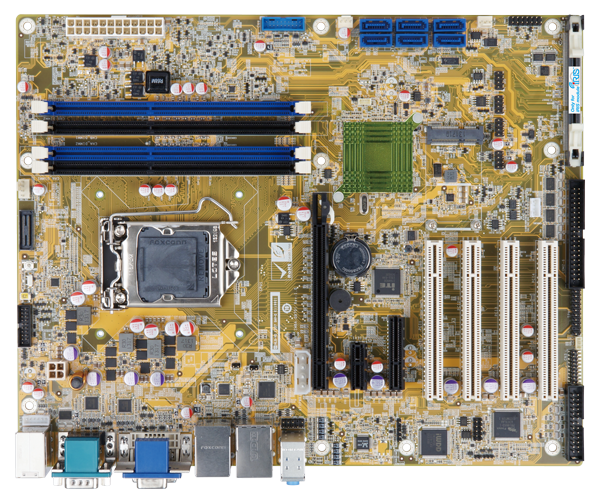

IMBA-Q870-i2

ATX motherboard supports 22nm LGA1150 Intel® Core™ i7/i5/i3, Pentium® and Celeron® CPU per Intel® Q87

  • Overview

    ● LGA1150 4th generation Intel® Core™ i7/i5/i3, Pentium® or Celeron® processor supported
    ● Dual-channel DDR3 1600/1333 MHz
    ● Intel® PCIe GbE with Intel® AMT 9.0 support
    ● Support triple independent display with HDMI, DVI and VGA and iDP
    ● Support PCI Express generation 3.0 at 8GT/s I/O bandwidth
    ● USB 3.0 and SATA 6Gb/s mSATA supported
    ● IEI jumper-less function
    ● IEI One Key Recovery solution allows you to create rapid OS backup and recovery
    ● Support IPMI 2.0 via iRIS-2400 module
  • Specifications

    • Hardware Spec.

      Spec Item Description
      System
      CPULGA1150 4th generation Intel® Core™ i7/i5/i3, Pentium® or Celeron® processor supported
      ChipsetIntel® Q87
      MemoryFour 240-pin 1600/1333 MHz dual-channel DDR3 & DDR3L SDRAM unbuffered DIMMs
      Memory Max.32GB
      Physical Characteristics
      Dimensions (LxWxH) (mm)244 X 305
      Net Weight700g
      Storage
      Storage6 x SATA :6Gb/s(RAID 0/1/5/10 supported)
      1 x mSATA :colay SATA 6
      I/O Interface
      Display Output1 x VGA :up to 1920x1200@60Hz
      1 x DVI-D :up to 2560x1600@60Hz
      1 x HDMI :up to 2560x1600@60Hz
      1 x iDP :interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160@60Hz)
      Ethernet2 x LAN :LAN1: Intel® I217LM with Intel® AMT 9.0 support
      LAN2: Intel® I210-AT PCIe controller with NCSI support
      AudioDescription: Realtek ALC662 HD codec supports 5.1-channel

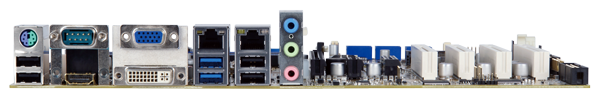

      1 x Line in :on rear IO
      1 x Line out :on rear IO
      1 x Mic :on rear IO
      1 x Front Audio :2x5 pin
      I/O Interface1 x External RS-232
      4 x Internal RS-232 :2x20 pin, p=2.54
      1 x Internal RS-422/485 :1x4 pin, p=2.54
      3 x External USB 2.0
      4 x External USB 3.2 Gen1x1
      4 x Internal USB 2.0 :2x4 pin, p=2.54
      2 x Internal USB 3.2 Gen1x1 :2x10 pin, p=2.0
      2 x PS/2 :1 X 1x6 pin
      1 x LPT :2x13 pin, p=2.54
      Expansion1 x PCIe x16 :Gen3
      1 x PCIe x4
      1 x PCIe x1
      1 x PCI Slot
      Other Features
      iRIS1 X iRIS-2400 slot
      TPM2x10 pin
      Power
      Power Consumption3.3V@0.66A, 5V@4.34A, 12V@0.16A, Vcore_12V@4.01A, 5VSB@0.21A
      (Intel® Core™ i7-4770K 3.90 GHz CPU with 16 GB (4x4 GB) 1333 MHz DDR3 memory)
      Power SupplySupport ATX mode
      Environment
      Operating Temperature-20°C ~ 60°C
      Storage Temperature-30°C ~ 70°C
      Humidity5% ~ 95%, non-condensing
      Certifications
      Safety & EMCCE/FCC compliant
    • Ordering Info.

      Item No. Description
      IMBA-Q870-ECO-R10LGA1150 Intel® Core™ i7/i5/i3, Pentium® and Celeron® CPU per Intel® Q87, DDR3, Triple Independent Display VGA/DVI-D/HDMI/iDP, USB 3.0, SATA 6Gb/s, ECO packing and RoHS
      IMBA-Q870-i2-R10ATX Motherboard supports 22nm LGA1150 Intel Core™ i7/i5/i3/Pentium and Celeron CPU per Intel Q87,DDR3,Three Independent Displays VGA/DVI-D/HDMI/iDP,Dual Intel GbE,USB 3.0,SATA 6Gb/s, Audio, iRIS-2400 and RoHS
    • Package Contents

      • 1 x IMBA-Q870-i2 single board computer

      • 2 x SATA cable

      • 1 x I/O shielding

      • 1 x QIG
