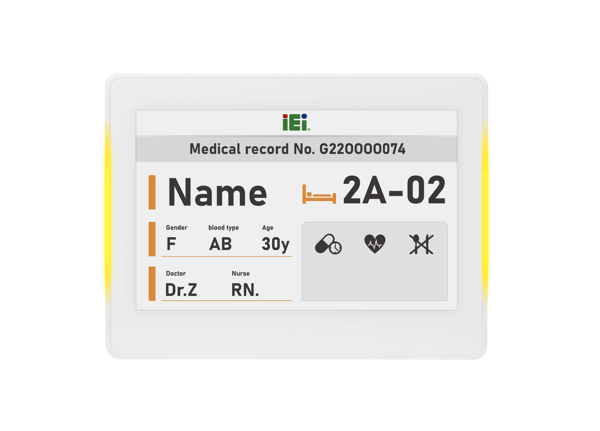

IASO-W10B-IMX8M

Data Acquisition Terminal

» NXP i.MX 8M Mini Quad-core Cortex-A53 1.8 GHz
» Programmable LED light bar on both side
» 10-point PCAP touch with optical bonding
» IEEE 802.3 PoE (optional)
» RFID (NFC) reader (optional)

10-Point Touch Screen with Optical Bonding

The 10-point touch screen with 6H surface scratch resistance supports control with multiple layers of surgical gloves. Optical bonding can dramatically reduce the internal reflections, help improve the brightness and contrast ratio of the display, enhance system ruggedness, and strengthen shock and vibration resistance.

Programmable LED Light Bars on Both Sides

LED light bars on both sides

Bright and simple outlook with programmable LED lights on both sides. The colorful light and display can be adjusted according to use conditions.

Usage scenarios

It can be used to detect the status light signal, or to warn the ward aisle.

Programmable LEDs

Each light bar has 10 programmable RGB LEDs with IEC62471 certification.

Translucent front frame

The front frame is made of translucent material to make the frame light and thin.

Color Codes for Safety Signs

IEC60601-1-8 is a standard that provides general requirements, tests and guidance for alarm systems in medical electrical equipment and medical electrical systems.
ANSI Z535.1-2017 is a standard that describes the color codes that can be used on accident prevention signs, labels, and tags. This also includes the marking and location of first aid equipment, fire extinguisher s, trip/slip hazards, and other potential hazards or safety equipment.

RFID Reader (optional)

An RFID dual-band card is capable of reading both 125 kHz and 1 3.56 MHz credentials

FrequencyRangeCostMemoryPenetration of MaterialsData RateReader CostRead Multiple TagsApplications
LF125 - 134.2 KHz0.2 - 2mTyp. 3GBPTyp. 64 bitsV. GoodSlow50 - 500 GBPPoorAnimal Tags. Vehicle Immobilisers.Industrial Applications
HF13.56 MHzUp to 1mTyp. 0.50GBPTyp. 2048 bitsGoodFast50 - 3000 GBPGoodItem Tracking. Access Control. Smart Labels

NXP i.MX 8M Mini

Quad-core Cortex-A53

Four powerful 64-bit Armv8 Cortex-A53 cores, making it a cost effective choice for running the graphical user interface and the latest Android 13.

4GB LPDDR4X on board

Scalable up to 8GB, low-power design with more efficiency.

Power-optimized

The low-power 14LPC FinFET Technology, making the SoC power-optimized.

Pin to Pin design

More flexibly, to change the same series chips for your requirement.

LP4x = Lower power

Power over Ethernet (optional)

Providing efficient power with less cabling for best performance.

1GbE supporting PoE (ErP is not supported in PoE mode)

IASO-W10B-IMX8M compliant with IEEE802.3at Class 4 & IEEE 802.3bt Class 5

Save Time by Using a Single Slot

PoE of the device provides both data and power over a single Ethernet cable

I/O Interface

  • 1

    Power Button

  • 2

    Audio Line-out

  • 3

    1GbE LAN (optional PoE)

  • 4

    Reset Button

  • 5

    2 x USB 2.0

  • 6

    RS-232

  • 7

    Power Input

Dimensions


Hardware Spec.

顯示
螢幕尺寸 10.1”
解析度 1280 x 800
亮度 400
對比度 800:1
顯示色彩 16.7M (RGB 6-bit + Hi-FRC)
像素大小 0.1695 x 0.1695 mm
視角 178˚/178˚
背光平均失效間隔時間 30,000 (LED backlight)
觸控螢幕 Projected capacitive type with 10-point multi-touch and optical bonding
觸控螢幕控制器 EETI
觸控屏表面硬度 6H
系統
處理器 NXP i.MX 8M Mini (Quad-core Cortex-A53 up to 1.8 GHz)
支援作業系統 Android 12
存儲
存儲 On-board 32GB eMMC NAND FLASH, up to 128GB
RAM On-board 4GB LPDDR4X, up to 8GB
音效
揚聲器 2 x 0.5W (internal speaker)
輸出/入介面
後 I/O 1 x Reset button
1 x Power button
1 x 12V DC jack
1 x RS-232
1 x Audio jack (TRRS)
1 x GbE LAN supporting PoE
2 x USB 2.0 Type A
指示燈與按鈕
指示燈 2 x LED light bar (each light bar has 10 programmable RGB LED with IEC62471 certification)
外觀
散熱 Fanless
機構材質 PC/ABS plastic
安裝 VESA 75 x 75 mm
重量(淨重, kg) 1.49
重量(總重, kg) 2.86
外觀尺寸(mm) 261 x 196.4 x 40
電源
外接式電源供應器 65W medical grade power adapter
環境
操作溫度 0°C ~ 40°C
存儲溫度 -20°C ~ 60°C
濕度 10% ~ 95% (non-condensing)
振動 1G
操作衝擊 5G peak acceleration (11ms duration)
非操作衝擊 15G peak acceleration (11ms duration)
認證
電磁兼容與安規 CE,FCC Class B Part 15B
EN 55032 2015+A11:2020
EN 55035 2017+A11:2020
EN / IEC 62368-1

Ordering Information

IASO-W10B-IMX8M-R10 10.1" 400cd/m² medical panel PC with NXP i.MX 8M Mini Cortex-A53 1.8 GHz, on board 4GB LPDDR4X,Wi-Fi 6 module, PCAP touchscreen,R10

Package Contents

Package Content
  • 1 x Power Adapter (65W medical power adapter)

  • 1 x Power Cord (European power cord, 183 cm, C13)


Download Specs.
