PPC2-CW215-ADLP

21.5” Fanless Panel PC with Intel® Alder Lake P Processor

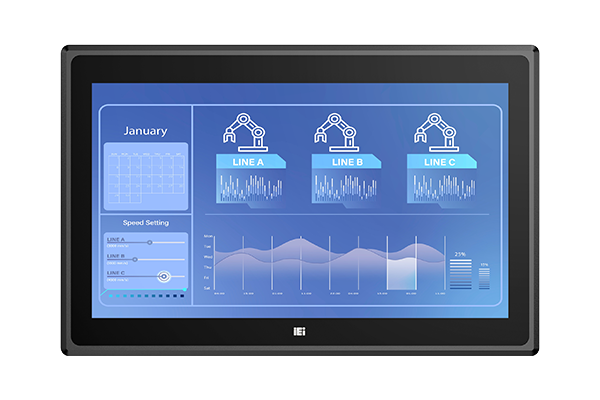

PPC2-CW215-ADLP Front
PPC2-CW215-ADLP Right
PPC2-CW215-ADLP Left
PPC2-CW215-ADLP IO
  • PPC2-CW215-ADLP Front
  • PPC2-CW215-ADLP Right
  • PPC2-CW215-ADLP Left
  • PPC2-CW215-ADLP IO
» 12th Gen Intel® Core™ Mobile i7/i5/i3 Processors
» PCAP with USB interface (anti-UV/AG coating)
» Dual M.2 (M.2 M Key) support
» Newly Designed Panel Mount Kit
» Support Gloved and Wet Hand Operation

Slim and Powerful Heavy Industrial Panel PC

The PPC2-CW215-ADLP features a powerful 12th Gen Intel® Core™ Processors and supports Windows 10 IoT for reliable 24/7 use in industrial and commercial applications. Its fanless design enhances run time by reducing movable parts over a wide temperature range.
With an IP65-compliant front panel, this touch Panel PC offers an ideal waterproof solution when panel mounted. Its slim design and rugged protection make it suitable for human-machine interface systems.

Fanless

Powder Coating for
Fanless Corrosion Resistance

Dual NVMe

Panel Mounting

Front Panel IP65

MIL-STD 810G

10°C~50°C

10-point AG PCAP MIL-STD 810G -10°C~50°C Touch with Anti-UV

Achieving Well-Rounded Performance

The PPC2-CW215-ADLP enhances any build by offering strong computing power delivery, fast storage and memory, and effective cooling.

12-Core 12th Gen Intel® Core™ Processors

Soldered 8GB LPDDR4x Memory

Dual M.2 NVMe SSD Storage

The PPC2-W215 industrial Panel PC is powered by the 12th Gen Intel Core Mobile Processors (formerly Alder Lake-P). It supports PCIe 4.0 and LPDDR4x memory, with speeds of up to 4266 MT/s. The PC also comes with increased cache, as well as security and manageability features. Furthermore, it offers AI enablement for intelligent workload optimization, enhanced graphics, AI, computer vision, and improved peripheral connectivity.
The PC ensures fast memory access capabilities. The integrated Intel® Iris® Xe graphics, with up to 96EUs, allows for concurrent 4K60 display. Additionally, it incorporates Intel® Deep Learning Boost, which provides superior AI inference performance.

8GB dual-channel LPDDR4X soldered memory brings the benefits of faster memory speeds at 4266MT/s, lower voltage, and reliable hardware. It reduces the power consumption of the memory system by 18-20% by cutting output driver power by 50%, from 1.2V to 0.6V.

It takes less space on-chip for better system airflow and shortens the trace for better signal transmission. Moreover, the soldered-on-board type enables the touch panel PC to deliver much more stable, solid operation compared to the socket-type memory for critical usage.

SSDs feature shock resistance, long lifetime, and high stability. They are widely used in industrial applications to provide reliable data storage. The equipped M.2 2242/2280 M-key sockets come with PCI Express® Gen4 x4 bandwidth and support up to 8 GB/s data transfer speeds, making them the perfect choice for fast data access in a rugged environment.

*Internal SSD performance will vary based on the type and number of SSDs used, plus the host computer's CPU speed. *SSDs sold separately

Compact and Rugged, Perfect Fit for HMI Machinery

This industrial touchscreen panel PC combines strong processing power and a high-resolution FHD TFT LCD in a compact all-in-one solution. With its slim 60mm thickness, it is suitable for space-constrained conditions without compromising its enclosure strength.

Fanless Design Extends Panel PC Lifetime

The PPC2-W215 industrial Panel PC uses IEI's innovative cooling heatsink design, which removes the need for a fan. By employing aluminum fins, it effectively regulates the temperature of internal components without the need for ventilation that may allow contaminants to enter. This passive heat-dispersion technology enhances the computer's reliability, especially in harsh environments.

Design for Industry: High-Quality and Reliable Products

Our focus is to provide durable components that meet industry standards and high quality requirements. Our HMI and IPC portfolio is produced from high quality and reliable components and always offers the best performance class.

Shock and Vibration Resistance

-10°C to 50°C Extended Operating Temperature

Front IP65 Water and Dust proof

Vibrations are oscillations around a balance point, while shocks involve sudden and strong impacts. These disturbances can come from external sources like transportation or rough handling, as well as internal factors such as rotating parts or movable components within the product.

The robust enclosure and fanless design without moving parts inside of the PPC2-W215 proves its durability, compliant with the MIL-STD-810G and IEC68-2-27 standards.

Ruggedized hardware architecture safeguards the panel PC in harsh, remote and dynamic environments.

  • -10°C to 50°C wide operating temperature
  • Operating Shock: 5 G shock
  • Vibration: 3 axes, 10-500Hz, 60 mins/axis
  • Intel® Platform Trust Technology (Intel® PTT) to enable password protection, device authentication and cybersecurity

This industrial panel mount PC are designed to be flush-mounted with IP65 protection. They stand out for their robustness, performance, and state-of-the-art touch technology. Thanks to their IP65 rating, the screens can endure water jets from any direction and are completely shielded from dust intrusion. This feature makes them ideal for outdoor applications, industrial settings, and other environments where durability and resilience are essential.

Full HD Large Screen with 7H PCAP Touch

The PPC2-W215 is built with an industrial grade 22" TFT LCD and a reliable PCAP touch screen. The PCAP touch is resistant to dirt and debris and responds very sensitively to touch commands, making every touch enjoyable and convenient when using the device.

7H Surface Hardness

Featuring 7H hardness glass, resisting scratches and enhancing durability for industrial use

Operation with Gloves and Water

The PCAP touch can work with thin or work gloves, it's easy to clean, and doesn't need calibration after use.

10-Point Multi-Touch

The screen has 10-point multi-touch, allowing for complex gestures in multi-user apps.

Anti-Glare Glass Treatment

PCAP touchscreens show details clearly, with no reflections or scratches, even in bright light.

Versatile Connectivity on Three Sides

Versatile connectivity on three sides allows you to connect and interact with multiple devices and peripherals. It brings several important advantages:

  • Easier Cable Management
  • Enhanced User Interaction
  • Reduced Cable Clutter
  • Facilitates Maintenance

Incorporating USB 3.2 Gen 1 and Gen 2 ports enhances PC connectivity and data transfer, while side-positioned Gen 2 ports offer convenient, fast access for external devices.

  • Network Redundancy
  • Multi-Protocol Fieldbus Communication
  • Multiple Device Connections

Onboard Intel® 2.5 Gb Ethernet gives your wired connection a boost, with speeds that are 2.5 times faster than standard Ethernet connections for speedy file transfers, smooth lag-free and high-res video streaming.

  • Network Redundancy
  • Multi-Protocol Fieldbus Communication
  • Multiple Device Connections

Featuring the latest Intel® UHD Graphics with up to 32 EUs, the panel PC can connect with a second display via the HDMI™ 2.0 port to deliver powerful hard decoding capability and pixel-accurate 4K resolution.

Enhanced Versatility and Ease

The PPC2-CW22-ADL features a 100x100 VESA mount design that allows you to mount it on a monitor stand or on a wall, depending on your specific needs. In addition, IEI develops a brand new way for panel mounting. It requires fewer clamps that can be easily fastened by hand.

Value-Added Software Solutions

Touch-enabled BIOS

IEI's tBIOS allows users to navigate with finger on a touch-enabled monitor to make BIOS configuration easily. It helps eliminate excessive steps and unnecessary keyboard connection.

Unlock Remote Efficiency with Seamless Control

Achieve greater efficiency and reliability in your industrial applications through the IEI Remote Management Solution

→ IEI Remote Management

Eco-Friendly Design

It is our duty to find and provide solutions that will create a more sustainable environment and business. Our focus on solutions shows how important it is for us to help our customers speed up their sustainability efforts and successes.

ErP Design Quality

The ErP assurance verification mechanism has been fully incorporated into the new product development process to standardize the product line.

Go Greener with Power Coatings

The housing of the PPC2 series features powder coating, considered a "green" technology that doesn't generate harmful solvents or airborne pollutants.

High-Resolution Solution for Challenging Environments

I/O Interfaces

  • {{ i + 1 }}

Dimensions

Optional Accessories

Related Products

{{ item.desc }}


Hardware Spec.

系統
CPU 12th Genertion Intel® Alder Lake-P Core™ i7/i5/i3 Processor
Memory Ext. Dual channel On board LPDDR4x 8G
輸出/入介面
Ethernet LAN1: Intel® I225V/I226V 2.5GbE controller
LAN2: Intel® I225-LM/I226-LM 2.5GbE controller (Intel AMT)
Expansion 1 x M.2 M key 2242 (PCIe Gen4 x4)
1 x M.2 M key 2280 (PCIe Gen4 x4)
1 x M.2 E key 2230 (PCIe + USB signal)
Power
Input 12V DC
Power adapter 84W Power adapter
Environment
Operating Temperature -10ºC ~ 50ºC
Safety & EMC CE/EMC, FCC, UKCA
Humidity 10% ~ 95%@40°C, non-condensing
Storage Temperature -20°C ~ 70°C
IP Level Front panel IP65
Physical Characteristics
Color Black
Mounting VESA 100, Panel, Wall, Rack, Stand and Arm
Construction Aluminum die casting + SECC
LCD
Size 21.5” (16:9)
Resolution 1920 (W) x 1080 (H)
Brightness (cd/m2) 350 cd/m²
Contrast Ratio 1000:1
LCD Color 16.7M
Pixel Pitch (mm) 0.247 x 0.247
Viewing Angle (H-V) 178°/178°
Backlight MTBF 50,000 hours
Touch
Touch Screen PCAP with USB interface (anti-UV/AG coating)
Touch Controller EETI EXC 81 Series
其他特點
System Cooling Fanless
TPM Intel® Platform Trust Technology
I/O Interface
I/O Interface 2 x RS-232 (by DB9)
2 x RS-232/422/485 (by DB9)
1 x USB 2.0
2 x USB 3.2 Gen1x1
1 x HDMI™
2 x LAN (2.5GbE)
1 x DC Input Jack (12V)
1 x Reset Button
1 x AT/ATX switch
2 x USB 3.2 Gen2
OS Support
OS Support Windows 10/11 IoT, Linux

Ordering Information

PPC2-CW215-ADLP-i7/8G-R10 21.5" 400cd/m² 1920x1080 Fanless Panel PC with 12th Generation Intel® Core™ i7-1260P on-board Processor,TDP 28W,8GB LPDDR4x on-board, PCAP touch,12V DC,R10
PPC2-CW215-ADLP-i5/8G-R10 21.5" 400cd/m² 1920x1080 Fanless Panel PC with 12th Generation Intel® Core™ i5-1240P on-board Processor,TDP 28W,8GB LPDDR4x on-board, PCAP touch,12V DC,R10
PPC2-CW215-ADLP-i3/8G-R10 21.5" 400cd/m² 1920x1080 Fanless Panel PC with 12th Generation Intel® Core™ i3-1220P on-board Processor,TDP 28W,8GB LPDDR4x on-board, PCAP touch,12V DC,R10

Package Contents

Package Content
  • 1 x PPC2-CW215-ADLP

  • 1 x Power Cord

  • 1 x Power Adapter

  • 1 x Panel Mount Kit

  • 1 x QIG

  • 1 x Screw Pack
