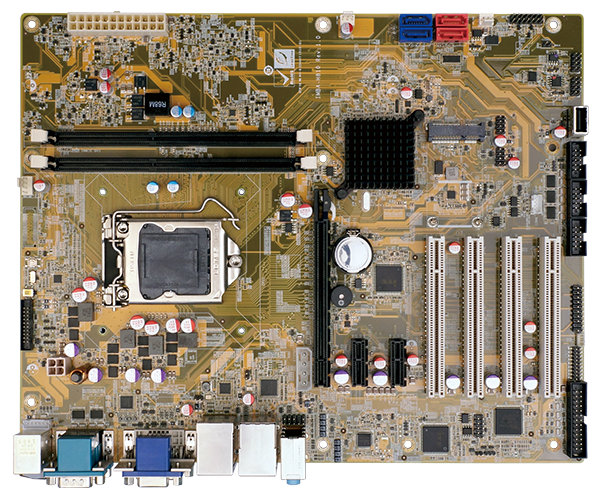

IMBA-H810

ATX motherboard supports 22nm LGA 1150 4th generation Intel® Core™ i7/i5/i3, Pentium® and Celeron® CPU with Intel® H81

  • Overview

    ● 4th generation LGA1150 Intel® Core™ i7/i5/i3, Pentium® or Celeron® processor supported
    ● Dual-channel DDR3 1333/1600 MHz support up to 16 GB
    ● Intel® HD Graphics technology integrates high-performance graphics and media processing
    ● USB 3.0, and SATA supported
    ● TPM V1.2 hardware security function supported by TPM module
    ● IEI One Key Recovery solution allows you to create rapid OS backup and recovery
  • Specifications

    • Hardware Spec.

      Spec Item Description
      System
      CPULGA1150 Intel® Core™ i7/i5/i3, Pentium® and Celeron® processor supported
      ChipsetIntel® H81
      MemoryTwo 240-pin 1600/1333 MHz dual-channel DDR3 SDRAM ECC and non-ECC unbuffered DIMMs
      Memory Max.16GB
      Physical Characteristics
      Dimensions (LxWxH) (mm)244 X 305
      Net Weight700g
      Storage
      Storage4 x SATA :2 X 6Gb/s (SATA1, SATA2) (AHCI supported, no RAID) (Blue)
      2 X 3Gb/s (SATA3, SATA4) (Red)
      1 x mSATA :share with SATA4
      I/O Interface
      Display Output1 x VGA :up to 1920x1200@60Hz
      1 x DVI-D :up to 2560x1600@60Hz
      1 x iDP :interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160@60Hz)
      Ethernet2 x LAN :LAN1: Intel® I217-LM with Intel® AMT9.0 support
      LAN2: Intel® I211-AT PCIe Controller
      AudioDescription: Realtek ALC662 HD codec supports 5.1-channel
      1 x Line in :on rear IO
      1 x Line out :on rear IO
      1 x Mic :on rear IO
      1 x Front Audio :2x5 pin
      I/O Interface2 x External RS-232
      1 x Internal RS-422/485 :1x4 pin, p=2.0
      2 x External USB 2.0
      2 x External USB 3.2 Gen1x1
      5 x Internal USB 2.0 :1 X A type, 4 X 2x4 pin, p=2.54
      2 x PS/2 :1 X 1x6 pin
      1 x DIO :8-bit digital I/O (2x5 pin)
      1 x LPT :2x13 pin
      Expansion1 x PCIe x16
      2 x PCIe x1
      4 x PCI Slot
      1 x PCIe mini Card Slot :Full-ize slot(support mSATA)
      Other Features
      TPM2x10 pin
      Power
      Power Consumption3.3V@0.83A, 5V@2.2A, 12V@3.88A, 5VSB@0.3A
      (Intel® Core™ i7-4770K 3.90GHz CPU with 8 GB (two 4 GB) 1333 MHz DDR3 memory)
      Power SupplySupport AT/ATX mode
      Environment
      Operating Temperature-20°C ~ 60°C
      Storage Temperature-30°C ~ 70°C
      Humidity5% ~ 95%, non-condensing
      Certifications
      Safety & EMCCE/FCC compliant
    • Ordering Info.

      Item No. Description
      IMBA-H810-ECO-R10LGA1150 4th generation Intel® Core™ i7/i5/i3, Pentium® and Celeron® CPU with Intel® H81, DDR3, VGA/DVI-D/ iDP, Dual Intel® PCIe GbE, USB 3.0, SATA 6Gb/s, HD Audio, ECO packing and RoHS
      IMBA-H810-R10ATX motherboard supports 22nm LGA 1150 Intel® 4th generation Core™ i7/i5/i3, Pentium® and Celeron® H81, DDR3, VGA/DVI-D/iDP, Dual Intel ® PCIe GbE , USB3.0, SATA 6Gb/s, HD Audio and RoHS
    • Package Contents

      • 1 x IMBA-H810 single board computer

      • 2 x SATA cable

      • 1 x I/O shielding

      • 1 x QIG
