WAFER-ADL-P

3.5 SBC supports Intel® Alder Lake-P Core™ i7/i5/i3 and Celeron® processor with 8GB LPDDR4x memory on board default, with DP ,HDMI™ ,dual 2.5 GbE, USB 3.2 gen 2, M.2, SATA 6Gb/s, COM, PCIe x4 for riser card and RoHS

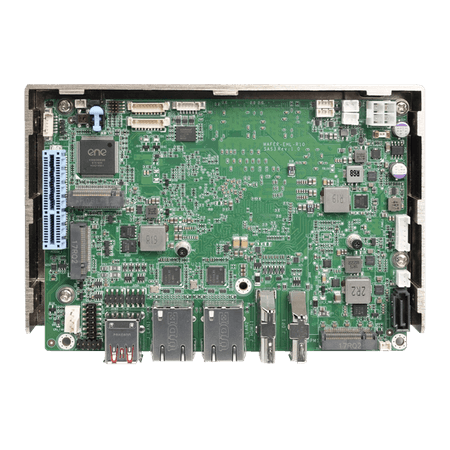

WAFER-ADL-P Front
WAFER-ADL-P IO
WAFER-ADL-P Back
WAFER-ADL-P Side
  • WAFER-ADL-P Front
  • WAFER-ADL-P IO
  • WAFER-ADL-P Back
  • WAFER-ADL-P Side
» Support 12th Intel® mobile AlderLake-P on board SoC
» Support on-board LPDDR4x 3200 MHz 8GB memory, up to 16GB
» Support quadruple independent display via two HDMI™ and two DP
» Support PCIe X4, M.2 M key, M.2 B key and M.2 A key expansion
» Suport two 2.5GbE LAN with i225-V

Specifications

Hardware Spec.

Form Factor
Form Factor 3.5〞 SBC
System
CPU 12th Gen. Intel® mobile Alder Lake-P on board SoC
Memory On-board LPDDR4x 3200 MHz 8GB up to 16GB
Memory Max. 16GB
Physical Characteristics
Dimensions (LxWxH) (mm) 146mm x 102mm
Net Weight 350g
Storage
Storage 1 x M.2(NGFF) : M.2 M Key 2242/2280 (PCIe Gen3 x4)
1 x SATA : 6Gb/s
I/O Interface
Display Output 2 x Display Port : up to 4096 x 2160 @60Hz
2 x HDMI™ : up to 4096x2160 @ 30Hz
Ethernet 2 x LAN -
LAN1: Intel® I225V 2.5GbE controller
LAN2: Intel® I225V 2.5GbE controller
Audio 1 x HD Audio : 1 x IAUDIO, support IEI AC-KIT-888S Audio Module (2x5 pin)
I/O Interface 4 x External USB 3.2 Gen2x1 : 10Gb/s(Type A)
4 x Internal RS-232 : 2x5 pin, P=2.0
2 x Internal RS-232/422/485 : 2x5 pin, P=2.0
4 x Internal USB 2.0 : 2x4 pin, P=2.0
Expansion 3 x M.2(NGFF) -
1 x M.2 A Key 2230 for WIFI & BT (PCIe Gen3 x 1 & USB 2.0)
1 x M.2 M Key 2242/2280 (PCIe Gen3 x4)
1 x M.2 B Key 3042 (PCIe x2 & USB 2.0)
1 x On-board SIM card socket (hinge type) for M.2 B key
1 x PCIe x4 : PCIe Gen3 x4 (x4 & x2+x2)
Power
Power Consumption 12V@2.83A (12 th Gen Intel® Core™ i7-1265UE CPU with 8 GB 3200 MHz LPDDR4x memory, max. loading, EuP mode enabled)
Power Supply ATX/AT power supply
Support AT/ATX mode
ErP/EuP Compliant
Environment
Operating Temperature 0°C ~ 60°C
Storage Temperature -30°C ~ 70°C
Humidity 5% ~95%, non-condensing

Ordering Information

WAFER-ADL-P-i7C-R10 3.5 SBC supports Intel® Alder Lake-P Core™ i7-1255U Proccessor，with 8GB LPDDR4x memory on board default, with DP ,HDMI™ ,dual 2.5 GbE , USB 3.2 gen 2 , M.2, SATA 6Gb/s, COM,PCIe x4 for riser card and RoHS
WAFER-ADL-P-i5C-R10 3.5 SBC supports Intel® Alder Lake-P Core™ i5-1235U Proccessor，with 8GB LPDDR4x memory on board default, with DP ,HDMI™ ,dual 2.5 GbE , USB 3.2 gen 2 , M.2, SATA 6Gb/s, COM,PCIe x4 for riser card and RoHS
WAFER-ADL-P-i3C-R10 3.5 SBC supports Intel® Alder Lake-P Core™ i3-1215U Proccessor，with 8GB LPDDR4x memory on board default, with DP ,HDMI™ ,dual 2.5 GbE , USB 3.2 gen 2 , M.2, SATA 6Gb/s, COM,PCIe x4 for riser card and RoHS
WAFER-ADL-P-CC-R10 3.5 SBC supports Intel® Alder Lake-P Celeron® 7305 SoC Processor，with 8GB LPDDR4x memory on board default, with DP ,HDMI™ ,dual 2.5 GbE , USB 3.2 gen 2 , M.2, SATA 6Gb/s, COM,PCIe x4 for riser card and RoHS

Package Contents

Package Content

  • 1 x WAFER-ADL-P single board computer

  • 1 x SATA cable

  • 1 x QIG
