AFL4-W101-ADLP

10.1” Fanless Panel PC with Intel® Alder Lake-P Core™ Processor

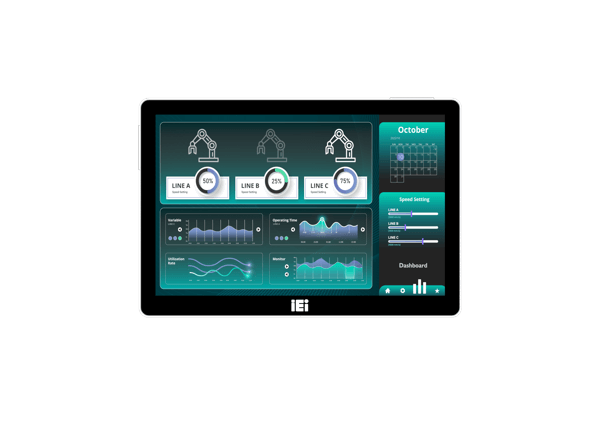

AFL4-W10-ADL Front
AFL4-W10-ADL Right Side
AFL4-W10-ADL Left Side
AFL4-W10-ADL IO
  • AFL4-W10-ADL Front
  • AFL4-W10-ADL Right Side
  • AFL4-W10-ADL Left Side
  • AFL4-W10-ADL IO
» Intel® Alder Lake-P Platform
» New narrow bezel design
» Anti-glare and Anti-UV PCAP
» Support Gloved and Wet Hand Operation
» Support WiFi 6E and Bluetooth®5.2

Hardware Spec.

系統
CPU 12th Gen Intel® Core™ Mobile i7/i5/i3 Processors (Alder Lake-P)
On-board Memory Dual channel On board LPDDR4X 8G
Communication
Wireless IEEE 802.11ax 2T2R module (Wi-Fi 6E)
with BT v5.0 (M.2 2230 A-key)
輸出/入介面
Ethernet LAN1: Intel® I225V 2.5GbE controller
LAN2: Intel® I225-LM 2.5GbE controller (Intel AMT)
Audio AMP 1.2W (internal speaker)
Expansion 1 x M.2 M key 2242 (PCIE Gen4 x 4)
1 x M.2 M key 2280 (PCIE Gen4 x 4)
Audio Codec Realtek ALC888S
Power
Input 12V DC
Environment
Operating Temperature -10°C ~ 50°C
Safety & EMC CE/EMC , FCC , RED (Class A)
Humidity 10% to 95% (non-condensing)
Storage Temperature -20°C ~ 60°C
IP Level Front panel IP65
Physical Characteristics
Color Silver+Black
Mounting Wall, Rack, Stand, ARM, VESA100
Construction Front Panel Aluminum die casting+SECC
LCD
Size 10.1”
Resolution 1280 x 800 (16:10)
Brightness (cd/m2) 350(cd/m²)
Contrast Ratio 900:1
Viewing Angle (H-V) 170°/170°
Backlight MTBF 30000 hours
Touch
Touch Screen Multi-point projected capacitive type
(anti-UV / anti-glare coating,support gloves)
Surface hardness: ≥7H
Touch Controller EETI EXC 81 Series
I/O Interface
I/O Interface 2 x RS-232 (by DB9)
2 x RS-232/422/485 (by DB9)
2 x LAN
1 x DC Input Jack
1 x Reset Button
1 x Power Switch
1 x AT/ATX switch
2 x USB 3.2 Gen1x1
1 x USB2.0
1 x HDMI™ (up to 3840*2160 @30Hz)
2 x LAN (Intel® I225V 2.5GbE controller)
2 x USB 3.2 Gen2
OS Support
OS Support Windows 10 IoT
Linux

Ordering Information

AFL4-W101-ADLP-i7/8G-R10 10.1" 350cd/m² 1280x800 fanless panel PC with Intel® Core™ i7-1260P on-board processor, 8GB LPDDR4x on-board, Wi-Fi 6E and Bluetooth 5.2 module, PCAP touch, 12V DC, R10
AFL4-W101-ADLP-i5/8G-R10 10.1" 350cd/m² 1280x800 fanless panel PC with Intel® Core™ i5-1240P on-board processor, 8GB LPDDR4x on-board, Wi-Fi 6E and Bluetooth 5.2 module, PCAP touch, 12V DC, R10
AFL4-W101-ADLP-i3/8G-R10 10.1" 350cd/m² 1280x800 fanless panel PC with Intel® Core™ i3-1220P on-board processor, 8GB LPDDR4x on-board, Wi-Fi 6E and Bluetooth 5.2 module, PCAP touch, 12V DC, R10

Package Contents

Package Content
  • 1 x AFL4-W101-ADL-P

  • 1 x Power Cord

  • 1 x Power Adapter

  • 1 x QIG
