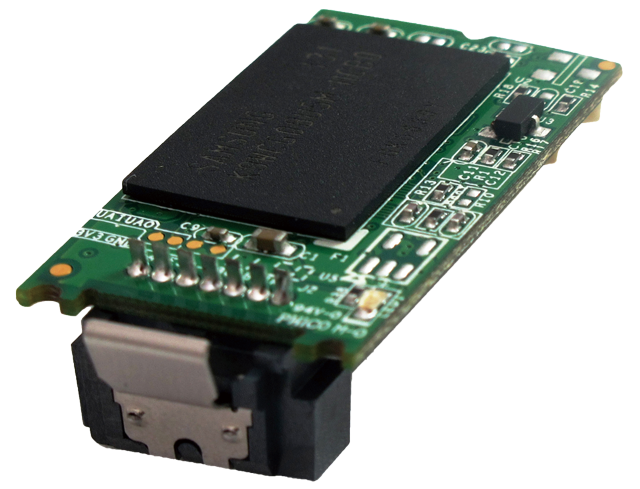

IFM-3010H

Industrial Flash Module Series(SATADOM)SLC

  • Overview

    Industrial Flash Module Series(SATADOM)SLC
  • Specifications

    • Hardware Spec.

      Spec Item Description
      ATA Security
      ATA SecurityYes
      Capacity (GB)
      Capacity (GB)1GB~32GB
      Dimensions
      Dimensions18.1 x 30.5 x 12
      Flash Type
      Flash TypeSLC
      Interface
      InterfaceSATA 6Gb/s
      Key Features
      Key Features1. Horizontal version
      2. Only exposes 12mm height
      on the motherboard after
      installation
      Max. Power Consumpation
      ConsumpationMax. Power Consumpation0.65W (5V x 130mA)
      P/N
      STD(0°C~+70°C)IFM-3010IPS-1GB
      IFM-3010IPS-2GB
      IFM-3010IPS-4GB
      IFM-3010IPS-8GB
      IFM-3010IPS-16GB
      IFM-3010IPS-32GB
      WT(-40°C~+85°C)IFM-3010WPS-1GB
      IFM-3010WPS-2GB
      IFM-3010WPS-4GB
      IFM-3010WPS-8GB
      IFM-3010WPS-16GB
      IFM-3010WPS-32GB
      S.M.A.R.T
      S.M.A.R.TYes
      Sequential R/W
      Sequential R/W300/130
      Thermal Sensor
      Thermal SensorWide temperature model only
    • Ordering Info.

      Item No. Description
      IFM-3010IPS-1GBFlash Disk;SATA Interface Disk on Module,Horizontal Version, SLC, 0℃~70℃, R:23MB/s W:9MB/s, 1GB
      IFM-3010IPS-2GBFlash Disk;SATA Interface Disk on Module,Horizontal Version, SLC, 0℃~70℃, R:24MB/s W:18MB/s, 2GB
      IFM-3010IPS-8GBFlash Disk;SATA Interface Disk on Module,Horizontal Version, SLC, 0℃~70℃, R:250MB/s W:60MB/s, 8GB
      IFM-3010IPS-16GBFlash Disk;SATA Interface Disk on Module,Horizontal Version, SLC, 0℃~70℃, R:290MB/s W:120MB/s, 16GB
      IFM-3010WPS-1GBFlash Disk;SATA Interface Disk on Module,Horizontal Version, SLC, -40℃~85℃, R:23MB/s W:9MB/s, 1GB
      IFM-3010WPS-8GBFlash Disk;SATA Interface Disk on Module,Horizontal Version, SLC, -40℃~85℃, R:250MB/s W:60MB/s, 8GB
      IFM-3010WPS-4GBFlash Disk;SATA Interface Disk on Module,Horizontal Version, SLC, -40℃~85℃, R:220MB/s W:50MB/s, 4GB
      IFM-3010WPS-16GBFlash Disk;SATA Interface Disk on Module,Horizontal Version, SLC, -40℃~85℃, R:290MB/s W:120MB/s, 16GB
      IFM-3010WPS-32GBFlash Disk;SATA Interface Disk on Module,Horizontal Version, SLC, -40℃~85℃, R:300MB/s W:130MB/s, 32GB
      IFM-3010IPS-4GBFlash Disk;SATA Interface Disk on Module,Horizontal Version, SLC, 0℃~70℃, R:220MB/s W:50MB/s, 4GB
      IFM-3010IPS-32GBFlash Disk;SATA Interface Disk on Module,Horizontal Version, SLC, 0℃~70℃, R:300MB/s W:130MB/s, 32GB
      IFM-3010WPS-2GBFlash Disk;SATA Interface Disk on Module,Horizontal Version, SLC, -40℃~85℃, R:24MB/s W:18MB/s, 2GB
