PUZZLE-5030

1U Rackmount Network Appliance with Intel® Xeon® E Processor (Codename: Rocket Lake) and the Intel® C256 chipset

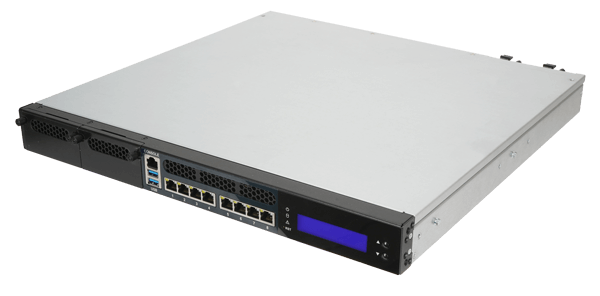

PUZZLE-5030 1U Rackmount Network Appliance
PUZZLE-5030 1U Rackmount Network Appliance
PUZZLE-5030 1U Rackmount Network Appliance
PUZZLE-5030 1U Rackmount Network Appliance
PUZZLE-5030 1U Rackmount Network Appliance
PUZZLE-5030 1U Rackmount Network Appliance
  • PUZZLE-5030 1U Rackmount Network Appliance
  • PUZZLE-5030 1U Rackmount Network Appliance
  • PUZZLE-5030 1U Rackmount Network Appliance
  • PUZZLE-5030 1U Rackmount Network Appliance
  • PUZZLE-5030 1U Rackmount Network Appliance
  • PUZZLE-5030 1U Rackmount Network Appliance
» Intel® Xeon® E Processor (Codename: Rocket Lake) and the Intel® C256 chipset
» 4 x DDR4 3200MHz non-ECC UDIMM, up to 128G
» 8 x 2.5 Gbps RJ-45 LAN ports & 2 pairs LAN bypass
» Support PCIe x4, PCIe x8 and two PulM module slots
» 1 x RJ-45 Console, 2 x USB 3.0, LCM
» 2 x 2.5" SATA HDD/SSD bay, 1 x M.2 M key 2260/2280, 1 x PCIe Mini with SIM card slot
» 300W Redundant / Non-redundant PSUs

Hardware Spec.

Form Factor
Form Factor 1U
System
CPU Intel® Xeon® E Processor (Codename: Rocket Lake)
Chipset Intel® C256
Memory DDR4 3200MHz Non-ECC UDIMM
Memory Max. Up to 128G
Cooling method / System Fan 3 x Cooling Fans with Smart Fan
1 x System Fan
Physical Characteristics
Rack Height 1U
Dimensions (LxWxH) (mm) 430 x 426 x 44.2
Net Weight 10 kg
Storage
Storage 2 x 2.5” SSD/HDD Bay : (15.5mm height)
1 x SATA : SATA 3.0 + 1 x 5V/12V power connector
I/O Interface
Display Output 1 x HDMI : Internal Connector
Ethernet 8 x LAN : 2.5 GbE RJ45 (Intel® I225V-AT); two pairs bypass; Port 1 support WOL
I/O Interface 1 x Console port(s) : RJ45
4 x USB 3.0 : two external USB port, two internal connector
Expansion 1 x PCIe x8 : PCIe 4.0 x8 (FHHL) slot
1 x PCIe x4 : PCIe 4.0 x4 (FHHL) slot
1 x PCIe mini Card Slot : with SIM card slot
1 x M.2(NGFF) : M key 2260/2280 (Support NVMe/SATA)
Power
Power Supply 300W Redundant/non-redundant PSUs
Environment
Operating Temperature 0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature -10°C ~ 50°C
Humidity 5% ~ 90% non-condensing
Certifications
Safety & EMC RoHS, CE/FCC
OS Support
OS Support Linux (CentOS, Ubuntu, etc.)

Ordering Information

PUZZLE-5030-XE2/R-R10 1U Rackmount Network Appliance support Intel® Gen8 Xeon® E-2378, 4 DDR4 slots, 8 x 2.5GbE , 2 PulM slots , 2 PCIe expansion, Redundant Power, RoHS
PUZZLE-5030-XE/R-R10 1U Rackmount Network Appliance support Intel® Gen8 Xeon® E-2378G, 4 DDR4 slots, 8 x 2.5GbE , 2 PulM slots , 2 PCIe expansion, Redundant Power, RoHS
PUZZLE-5030-R10 1U Rackmount Network Appliance (without CPU and Heatsink) support Intel® Xeon® E Processor (Codename: Rocket Lake), Intel® C256 chipset, LGA1200, 4 DDR4 slots, 8 x 2.5GbE, 2 PulM slots, 2 PCIe expansion, Redundant Power, RoHS

Package Contents

Package Content
  • 2 x Power cord

  • 2 x Rack mounting ears

  • 6 x Screw for rack mounting ears

  • 1 x USB to console cable

  • RS232 to console cable : Option

  • Slide rail : Option

  • HDMI cable : Option

  • Heatsink (TDP: 80W) : Option
