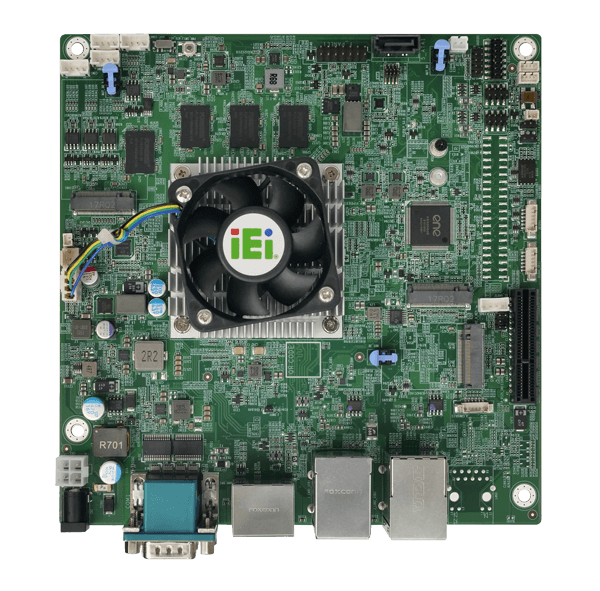

Low-power Mini-ITX Motherboard for IoT Edge Computing
The KINO-EHL Mini-ITX motherboard features reliable performance, advanced network connectivity and rich I/O capabilities in a compact board that fits small chassis size for space-critical in stallation like kiosk, POS or digital signage. The motherboard supports up to 3 display outputs, 8 USB ports and 6 COM ports for a wide range of peripheral connections. Dual 2.5GbE and 5G & Wi-Fi expandability are available to provide high-bandwidth data transmission. Its flexible customization options and low power advantages make it the ideal choice for IoT edge applications, which require economic solution with high scalability and reliability.
- 14 x RS-422/485
- 2iDPM supports eDP to eDP/LVDS/VGA Module
- 3SATA 6Gb/s
- 4iAUDIO for IEI AC-KIT-888S Audio Module
- 512-bit DIO/GPIO
- 6SMBus & I2C
- 7M.2 B key (3052/3042/2242/2280) with SIM slot
- 8PCIe x4 slot with x1 signal
- 9M.2 A key (2230)
- 7M.2 B key (3052/3042/2242/2280) with SIM slot
- 1012V DC input
- 112 x RS-232
- 142 x 2.5GbE via Intel I225V
- 152 x USB 3.2 Gen 2 (10Gb/s)
- 162 x USB 2.0
High Performance with Low Power
Powered by Intel® Celeron® J6412 processor and 8GB on-board LPDDR4X, the KINO-EHL can deliver high levels of CPU and graphics performance at low power. Compared to the previous generation, it improves up to 1.7x on CPU and up to 2x on graphics, and gets a 75% higher score in CPU benchmark. With the feature of low power and excellent throughput, the KINO-EHL can benefit IoT edge computing by saving lots of energy while maintaining high computation.
CPU Benchmark Source: www.cpubenchmark.net
The Intel® Celeron® J6412 processor is available and supported for an extended period. This long-term availability makes the Mini-ITX motherboard an ideal solution for integrators looking to maximize their return on investment.
8GB On-board RAM
Stability is a necessity in applications where vibration is present. The 8GB LPDDR4X memory soldered on board enables the Mini-ITX motherboard to deliver much more stable, solid operation compared to the socket-type memory.
2.5GbE High-Bandwidth and Low-Latency Data Transmission
The two RJ45 LAN ports both provide 2.5GbE connectivity that gives an immediate boost to overall network performance and improves the bandwidth required at large-scale workloads. By connecting with a 2.5G network switch, it can form a solid, optimized infrastructure for the deployment of massive IoT devices or sensors to deliver lightning-fast transmission speed between devices.
5G & Wi-Fi Expandability
Wireless solution support is made through the two M.2 slots. The B-key slot comes with a SIM slot to support 5G modules. The A-key slot is designed to support Wi-Fi/Bluetooth network cards.
Drive AIoT, 4K Graphics Applications at the Edge
The KINO-EHL supports triple independent display via DisplayPort 1.4, HDMI 1.4 and IEI iDPM interface. The iDPM interface supports diverse display modules, enabling users to add LVDS, eDP or VGA display interface upon requirements. Up to 4K@60 high-resolution support provides great benefits for applications that demand on-image resolution and color realism at the edge.
eDP to LVDS converter
eDP to eDP converter
eDP to VGA converter
M.2 B Key Slot for Cards in Different Sizes
In addition to offering wireless network connection, the M.2 B key socket on the KINO-EHL supports NVMe SSD, AI accelerators and many more M.2 cards for stable storage configurations and scalable AI capability. The B-key slot can take different module sizes to make it more compatible with most M.2 module in the market. This includes module widths of 22 and 30 mm, and lengths of 42, 52 and 80 mm.
Tool-less M.2 Installation
The two M.2 slots both contain a quick-release retainer, allowing tool-less installation and removal of an M.2 module. With just a simple press of the retainer, the module can be securely seated into the slot or be released.
PCIe Gen3 Slot Allows More Functionality & Possibility
The Mini-ITX motherboard is equipped with a PCI Express Gen3 expansion slot providing easy integration of PoE, video capture or I/O cards with a compatible riser card. With twice the bandwidth of PCIe Gen2, the KINO-EHL can take advantage of PCIe cards to expand AIoT application potential.
4-port Power over Ethernet card
2-port Power over Ethernet card
Compact yet Versatile Connectivity
The KINO-EHL provides rich I/O capabilities in a compact and versatile package, making it ideal for industrial applications. It can be used to integrate a wide variety of devices to meet your specific needs.
- 2 x USB 3.2 Gen 2 (10Gb/s)
- 6 x USB 2.0
- 2 x RS-232
- 4 x RS-422/485
IEI's tBIOS allows users to navigate with finger on a touch-enabled monitor to make BIOS configuration easily. It helps eliminate excessive steps and unnecessary keyboard connection.
Intel® Elkhart Lake Processor
Intel® Celeron® J6412 on-board SoC (up to 2.6GHz, quad-core, 1.5M Cache,TDP=10W)
|Memory||Onboard LPDDR4x-3200MHz 8GB, system up to 16GB|
|Memory Max.||up to 16GB|
|Cooling method / System Fan||
1 x CPU fan connector (1x4 pin)
1 x System fan connector (1x3 pin)
|Storage||1 x SATA : 6Gb/s with 5V SATA power connector|
|Display Output||1 x HDMI : up to 4096 x 2160@30Hz|
|1 x Display Port : up to 4096 x 2160@60Hz|
|1 x iDPM : 1 x IEI iDPM 3040 slot (only for IEI eDP/LVDS/VGA module)|
2 x LAN -
LAN1: Intel® I225V 2.5GbE controller
LAN2: Intel® I225V 2.5GbE controller
|Audio||1 x HD Audio : 1 x iAUDIO, support IEI AC-KIT-888S Audio Module (2x5 pin)|
|I/O Interface||2 x External RS-232|
|4 x Internal RS-422/485 : 1x4 pin, P=2.00|
|2 x External USB 2.0|
|4 x Internal USB 2.0 : 2x4 pin, P=2.00|
|1 x DIO : 12-bit digital I/O (2x7 pin)|
|2 x External USB 3.2 Gen2x1 : 10Gb/s|
|Expansion||1 x PCIe x4 : PCIe Gen3 x1 signal|
2 x M.2(NGFF) -
1 x M.2 A key (2230) (PCIex1 & USB 2.0)
1 x M.2 B key (3052/3042/2242/2280) w/ SIM holder (PCIe x2 / USB 2.0)
|TPM||Intel® PTT (TPM 2.0)|
|Power Consumption||12V@2.78A (Intel® Celeron® J6412 2.0GHz with 8GB 3200MHz LPDDR4 memory and EUP enabled)|
12V DC input
1 x Internal power connector (2x2 pin)
1 x External DC power Jackc (Ø2.5mm)
|Operating Temperature||0°C ~ 60°C|
|Storage Temperature||-30°C ~ 70°C|
|Humidity||5% ~ 95%, non-condensing|
|Safety & EMC||CE/FCC compliant|
|KINO-EHL-J6412C-R10||Mini-ITX SBC supports Intel® quad-core Celeron® J6412 2.0GHz on-board SoC with 8GB LPDDR4x memory on board default, Triple Independent Display, HDMI, DP, SATA 6Gb/s, Triple GbE, USB 3.2, M.2 and RoHS|
