• Overview

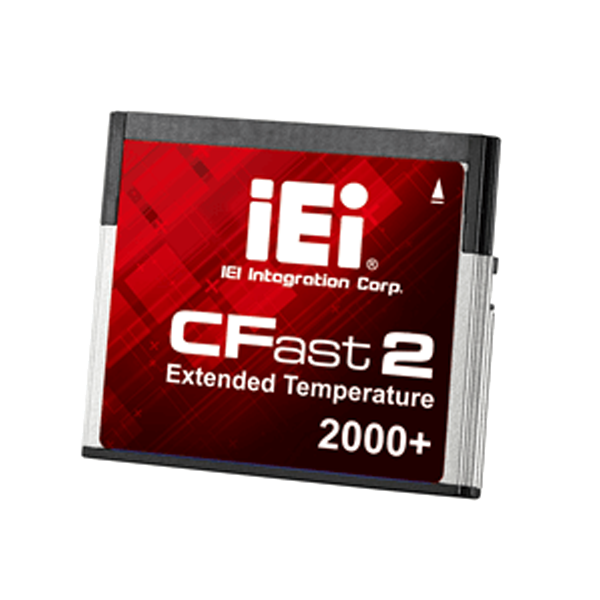

    CFast Series MLC
  • Specifications

    • Hardware Spec.

      Spec Item Description
      ATA Security
      ATA SecurityYes
      Capacity (GB)
      Capacity (GB)8GB~128GB
      DC Power Input
      DC Power Input3.3V
      Dimensions
      Dimensions42.8 x 36.4 x 3.6
      Flash Type
      Flash TypeMLC
      IDE Transfer Mode
      IDE Transfer ModeYes
      Max. Power Consumpation
      ConsumpationMax. Power Consumpation525mA
      P/N
      STD(0°C~+70°C)ICT-2000IAM-8GB
      ICT-2000IAM-16GB
      ICT-2000IAM-32GB
      ICT-2000IAM-64GB
      ICT-2000IAM-128GB
      WT(-40°C~+85°C)ICT-2000WAM-8GB
      ICT-2000WAM-16GB
      ICT-2000WAM-32GB
      ICT-2000WAM-64GB
      ICT-2000WAM-128GB
      S.M.A.R.T
      S.M.A.R.TYes
      Sequential R/W
      Sequential R/W310/240 MB/sec
      Environment
      Operating Temperature0°C~+70°C (Standard)/-40°C~+85°C (Industrial)
      Operating Vibration15 (G), 10~2000 (Hz)
      Operating Shock1500G/0.5ms
      Storage Temperature-55°C~+95°C
    • Ordering Info.

      Item No. Description
      ICT-2000IAM-8GBFlash Disk; Sata Interface CompactFlash, Standard, MLC, 0℃~70℃, R:200MB/s W:21MB/s, 8GB
      ICT-2000IAM-16GBFlash Disk; Sata Interface CompactFlash, Standard, MLC, 0℃~70℃, R:205MB/s W:43MB/s, 16GB
      ICT-2000IAM-64GBFlash Disk; Sata Interface CompactFlash, Standard, MLC, 0℃~70℃, R:305MB/s W:155MB/s, 64GB
      ICT-2000IAM-128GBFlash Disk; Sata Interface CompactFlash, Standard, MLC, 0℃~70℃, R:310MB/s W:240MB/s, 128GB
      ICT-2000WAM-128GB
      ICT-2000IAM-32GBFlash Disk; Sata Interface CompactFlash, Standard, MLC, 0℃~70℃, R:205MB/s W:46MB/s, 32GB
      ICT-2000WAM-8GB
      ICT-2000WAM-16GB
      ICT-2000WAM-32GBFlash Disk; Sata Interface CompactFlash, Standard, MLC, -40℃~85℃, R:205MB/s W:46MB/s, 32GB
      ICT-2000WAM-64GBFlash Disk; Sata Interface CompactFlash, Standard, MLC, -40℃~85℃, R:305MB/s W:155MB/s, 64GB
