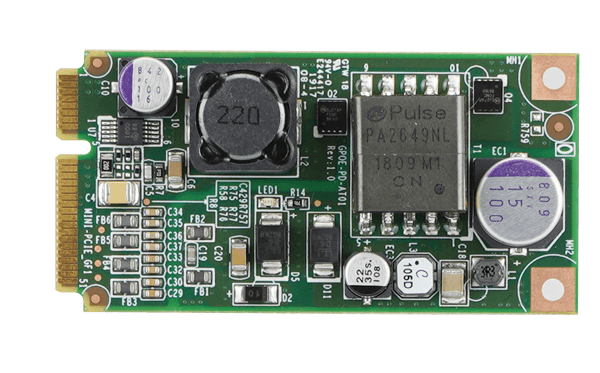

PoE+ (IEEE 802.3at) PD module compliant with IEEE 802.3at & af
25 Watt Output Power
12V DC output
Input voltage range 36V to 57V
Tool-less and Easy install
Hardware Spec.
| Input | |
|---|---|
| Voltage | 36V to 57V DC |
| Output | |
| Voltage | 12V DC |
| Dimensions | |
| Dimensions | 59.84mm X 30mm |
| Interface | |
| Interface | PCIe mini (IEI pin definition) |
| Key Features | |
| Key Features |
PoE+ (IEEE 802.3at) PD module compliant with IEEE 802.3at & af 25 Watt Output Power 12V DC output Input voltage range 36V to 57V Tool-less and Easy install |
Ordering Information
| GPOE-PD-AT01-R10 | PoE PD IEEE802.3 af/at with mini-PCIE from factor , support AFL3-W15C/W19C/W22C-ULT5 , R10 |
|---|
