• Overview

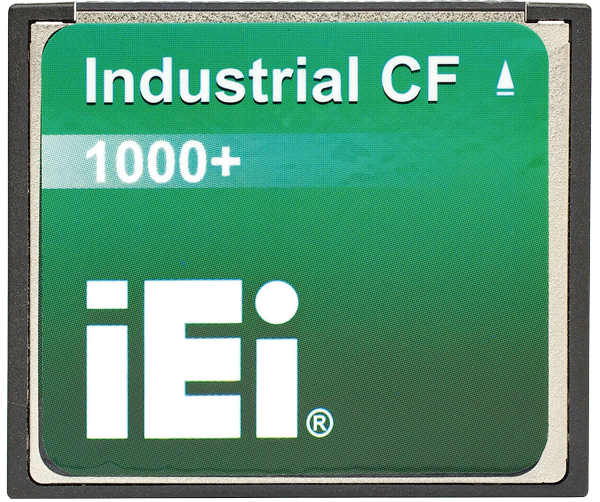

    CF Card Series SLC
  • Specifications

    • Hardware Spec.

      Spec Item Description
      ATA Security
      ATA SecurityYes
      Capacity (GB)
      Capacity (GB)128MB~8GB
      DC Power Input
      DC Power Input+3.3V-+5V single power supply operation
      Dimensions
      Dimensions42.8 x 36.4 x 3.3
      Flash Type
      Flash TypeSLC
      IDE Transfer Mode
      IDE Transfer ModePIO mode 0-4
      MwDMA mode 0-4
      UltraDMA mode 0-4
      Max. Power Consumpation
      ConsumpationMax. Power Consumpation0.75W (5V x 125mA@210mA)
      P/N
      STD(0°C~+70°C)ICF-1000IPD-1GB-R20
      ICF-1000IPD-2GB-R20
      ICF-1000IPD-4GB-R20
      ICF-1000IPD-8GB-R20
      WT(-40°C~+85°C)ICF-1000WPD-1GB-R20
      ICF-1000WPD-2GB-R20
      ICF-1000WPD-4GB-R20
      ICF-1000WPD-8GB-R20
      S.M.A.R.T
      S.M.A.R.TYes
      Sequential R/W
      Sequential R/W40/28 MB/sec
      Environment
      Operating Temperature0°C~+70°C (Standard)/-40°C~+85°C (Industrial)
      Operating VibrationN/A
      Operating Shock1500G/0.5ms
      Storage Temperature-55°C~+95°C
    • Ordering Info.

      Item No. Description
      ICF-1000IPD-8GB-R20ICF 50 PIN 8GB,Toshiba Flash,Industrial CF card, iCF 1000 Dual Channels,High Speed,SLC,0℃~70℃,R:40MB/s W:20MB/s
      ICF-1000WA-8GB-R20
      ICF-1000WPD-4GB-R20ICF 50 PIN 4GB,Toshiba Flash,Industrial CF card, iCF 1000 Dual Channels,High Speed,SLC,-40℃~85℃,R:40MB/s W:20MB/s
      ICF-1000WPD-8GB-R20ICF 50 PIN 8GB,Toshiba Flash,Industrial CF card, iCF 1000 Dual Channels,High Speed,SLC,-40℃~85℃,R:40MB/s W:20MB/s
      ICF-1000IA-128MB-R20Flash Disk; 50 pin CompactFlash,Toshiba Flash, Standard, SLC, 0℃~70℃, R:17MB/s W:4MB/s, 128MB
      ICF-1000IA-512MB-R20Flash Disk; 50 pin CompactFlash,Toshiba Flash, Standard, SLC, 0℃~70℃, R:19MB/s W:7MB/s, 512MB
      ICF-1000IA-1GB-R20Flash Disk; 50 pin CompactFlash,Toshiba Flash, Standard, SLC, 0℃~70℃, R:21MB/s W:12MB/s, 1GB
      ICF-1000IA-4GB-R20Flash Disk; 50 pin CompactFlash,Toshiba Flash, Standard, SLC, 0℃~70℃, R:21MB/s W:13MB/s, 4GB
      ICF-1000IA-8GB-R20Flash Disk; 50 pin CompactFlash,Toshiba Flash, Standard, SLC, 0℃~70℃, R:21MB/s W:11MB/s, 8GB
      ICF-1000IPD-1GB-R20ICF 50 PIN 1GB,Toshiba Flash,Industrial CF card, iCF 1000 Dual Channels,High Speed,SLC,0℃~70℃,R:40MB/s W:20MB/s
      ICF-1000IPD-2GB-R20ICF 50 PIN 2GB,Toshiba Flash,Industrial CF card, iCF 1000 Dual Channels,High Speed,SLC,0℃~70℃,R:40MB/s W:20MB/s
      ICF-1000IPD-4GB-R20ICF 50 PIN 4GB,Toshiba Flash,Industrial CF card, iCF 1000 Dual Channels,High Speed,SLC,0℃~70℃,R:40MB/s W:20MB/s
      ICF-1000WPD-2GB-R20ICF 50 PIN 2GB,Toshiba Flash,Industrial CF card, iCF 1000 Dual Channels,High Speed,SLC,,-40℃~85℃,R:40MB/s W:20MB/s
      ICF-1000IA-256MB-R20Flash Disk; 50 pin CompactFlash,Toshiba Flash, Standard, SLC, 0℃~70℃, R:29MB/s W:8MB/s, 256MB
      ICF-1000IA-2GB-R20Flash Disk; 50 pin CompactFlash,Toshiba Flash, Standard, SLC, 0℃~70℃, R:20MB/s W:11MB/s, 2GB
      ICF-1000WA-128MB-R20
      ICF-1000WA-256MB-R20
      ICF-1000WA-512MB-R20
      ICF-1000WA-1GB-R20
      ICF-1000WA-2GB-R20
      ICF-1000WA-4GB-R20
      ICF-1000WPD-1GB-R20ICF 50 PIN 1GB,Toshiba Flash,Industrial CF card, iCF 1000 Dual Channels,High Speed,SLC,-40℃~85℃,R:40MB/s W:20MB/s
