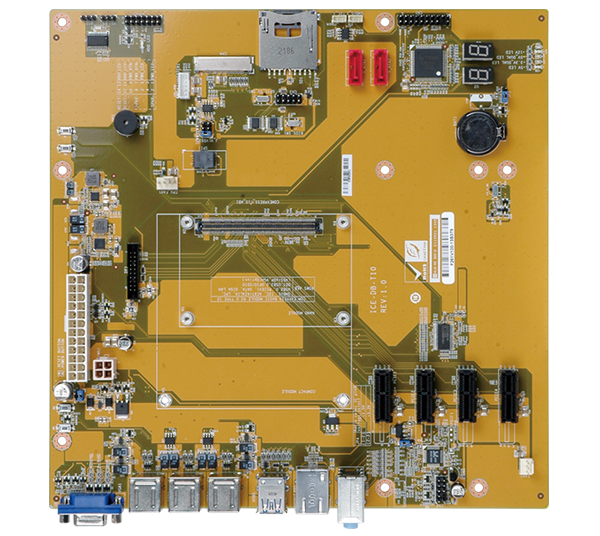

ICE-DB-T10

Baseboard for COM Express Type 10 Module COM.0 Rev. 2.1, suppport PICMG EAPI R1.0

  • Overview

    ● Intel® 22nm Atom™ on-board SoC supported
    ● Type 10 connector pinout according to COM.0 R2.1
    ● Supports 2 GB 1066/1333 MHz DDR3L memory
    ● Optional soldered down 4 GB SSD
    ● IEI One Key Recovery solution allows you to create rapid OS backup and recovery
    ● Support wide range operating temperature: -40°C to +85°C
  • Specifications

    • Hardware Spec.

      Spec Item Description
      Physical Characteristics
      Dimensions (LxWxH) (mm)243.8 X 243.8
      Net Weight350g
      Storage
      Storage2 x SATA
      1 x SD/MicroSD card
      I/O Interface
      Display Output1 x VGA
      1 x Display Port
      1 x eDP
      Ethernet1 x LAN
      AudioDescription: Realtek ALC662 HD Audio codec
      1 x Line in
      1 x Line out
      1 x Mic
      1 x Front Audio :2x5 pin
      I/O Interface6 x External USB 2.0
      2 x External USB 3.2 Gen1x1
      Expansion4 x PCIe x1
      Other Features
      TPM2x10 pin
      Environment
      Operating Temperature-20°C ~ 60°C
      Storage Temperature-30°C ~ 70°C
      Certifications
      Safety & EMCCE/FCC compliant
    • Ordering Info.

      Item No. Description
      ICE-DB-T10-R10Base Board for COM Express Type 10 Module support PICMG COM.0 R2.1
