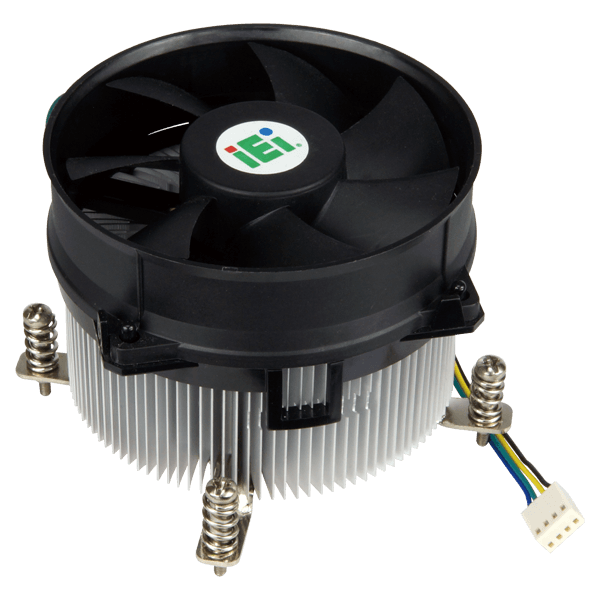

CF-115XF

High performance LGA1155/LGA1156 CPU cooler, RoHS

End of Life

End of Life Notice

* Effective Date: 2021/12/27

High performance thermal solutions

Hardware Spec.

CPU Solution
CPU Solution Intel Xeon/Core i7/i5/i3
Socket Solution
Socket Solution LGA115X (LGA1150/LGA1151/LGA1155/LGA1156)
Dimensions
Dimensions 90*90*69.3mm
Material
Material Al
Bearing Type
Bearing Type Two-Ball
Capability (Watt)
Capability (Watt) 95W
Fan Speed (RPM)
Fan Speed (RPM) 4200
Noise Level (dBA)
Noise Level (dBA) 48
Life Expectancy (hrs)
Life Expectancy (hrs) 50000
Weight
Weight 432g
Key Features
Key Features High performance LGA1155/LGA1156 CPU cooler, RoHS

Ordering Information

CF-115XF-R10 High performance LGA115X Cooler kit for Intel Xeon/Core i7/i5/i3 CPU,90L*90W*69.3H,95W,CCL;RoHS
