PPC-F15D-ULT5

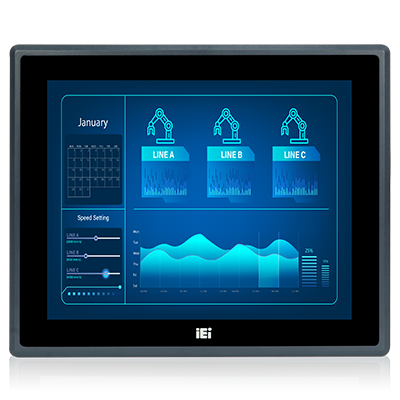

15” 8th gen Intel® Whiskey Lake-U Industrial Panel PC

PPC-F15D-ULT5
PPC-F15D-ULT5
PPC-F15D-ULT5
PPC-F15D-ULT5
  • PPC-F15D-ULT5
  • PPC-F15D-ULT5
  • PPC-F15D-ULT5
  • PPC-F15D-ULT5
» 15” Panel PC with 8th gen Intel® Whiskey Lake-U processors
» Low power consumption and fanless design
» IP66-rated front panel for water and dust resistance
» Touch screen with anti-UV / anti-glare coating
» Support PoE PD power
» Support NVMe SSD

Hardware Spec.

Display
LCD Size 15”
Brightness(cd/m2) 450
Max Resolution 1024 x 768
Contrast Ratio 800:1
Backlight MTBF(hrs) 70000
System
Cooling method / System Fan Fanless
CPU 8th Genertion Intel® Core™ i5-8365U 4.10GHz
8th Genertion Intel® Celeron® 4305U 2.20GHz
Chipset Intel® Whiskey Lake-U
Memory Ext. 2 x 260-pin 2400 MHz dual-channel DDR4 unbuffered SO-DIMM
Memory Max. 32GB
Storage 2.5” HDD/SSD SATA 3(6.0Gb/s) bay
I/O Interface
Ethernet 2x Intel® I211
1x Intel® I219
Audio Codec ALC888S
Power
Input +12VDC
Power adapter 12V @ 8A(96W)
Power consumption 56W
Environment
Operating Temperature -10°C ~ 50°C (with air flow)
Operating Vibration 5~17Hz, 0.1 double amplitude displacement 17~640Hz 1.5G acceleration peak to peak
Operating Shock 10G acceleration part to part (11ms)
Safety & EMC CE, FCC
Humidity 10% ~ 95% (non-condensing)
Storage Temperature -20°C ~ 60°C
IP Level Front panel IP66
Physical Characteristics
Color PANTONE 296 C
Mounting Wall mount, Panel mount, Rack mount
Dimensions (LxWxH) (mm) 378.5 x 303 x 74.6
Net Weight 5.7kg
Construction Front Panel Aluminum
Cutout Dimensions 361.1 x 285.6
Expansion Slots
Expansion Slots M.2 2230 A-Key(PCIe x1, USB 2.0; support Wi-Fi, BT)
M.2 2280 M-Key(PCIe x4; support NVMe SSD)
LCD
LCD Color 16.2M
Pixel Pitch (mm) 0.29 x 0.29
Viewing Angle (H-V) 160°/150°
Touch
Touch Screen PCAP 10-point
Touch Controller EETI
Other Features
TPM TPM 2.0(on-board)
I/O Interface
I/O Interface 1 x AT/ATX Switch
1 x Clear CMOS
1 x Power Switch (with LDE(Blue))
1 x Line out
2 x RS-232 (1 x RS-232/422/485, 1 x RS-232)
1 x HDMI
3 x LAN (2 x Support PoE(IEEE 802.3at/bt, optional))
1 x DC Input Jack (12V Din 4Pin/lock)
1 x Reset Button
4 x USB 3.2 Gen2x1

Ordering Information

PPC-F15D-ULT5-i5/4G/PC-R10 15" 450 cd/m2 1024 x 768 Panel PC with Intel® 14nm 8th Whiskey Lake Core- i5-8365UE (6M Cache, up to 4.10 GHz) TDP 15W on-board Processor (ULT), 4GB DDR4 RAM x1, 12VDC input, Projective capacitive touch window with AG, R10
PPC-F15D-ULT5-C/4G/PC-R10 15" 450 cd/m2 1024 x 768 Panel PC with Intel® 14nm 8th Whiskey Lake Celeron® 4305UE (2M Cache, 2.0 GHz) TDP 15W on-board Processor (ULT), 4GB DDR4 RAM x1, 12VDC input, Projective capacitive touch window with AG, R10

Package Contents

Package Content
  • 1 x PPC-F15D-ULT5 panel PC

  • 1 x Power adapter
