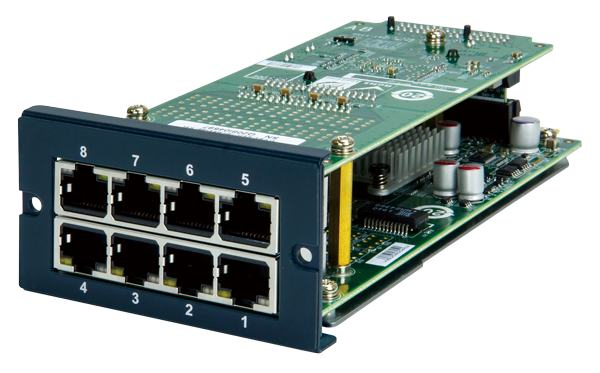

PulM-1G8T-I350

Intel® Ethernet Controller I350-AM4 based Network Interface Card with 8 x RJ-45 by 2 PCIe 2.0 x4 interface, RoHS

  • Overview

    • 2 x Intel® Ethernet Controller I350-AM4
    • 8 x GbE RJ-45 connectors
    • 2 PCIe2.0 x4
    • LAN Bypass (by sku)
    • CE/FCC/RoHS compliant
  • Specifications

    • Hardware Spec.

      Spec Item Description
      Physical Characteristics
      Dimensions (LxWxH) (mm) 165.50 x 77.8 x 44.2
      I/O Interface
      Ethernet 8 x LAN
      Falt-tolerance
      LAN Bypass Yes (by sku)
      Environment
      Operating Temperature 0°C ~ 40°C (32°F ~ 104°F)
      Storage Temperature -20°C ~ 75°C (-4°F ~ 167°F)
      Humidity 5% ~ 90% RH, Non-condensing
      Certifications
      Safety & EMC CE/FCC/RoHS compliant
      Card Slot Interface
      PCIe 2 PCIe 2.0 x4
      Card Features
      Speed GbE
      Controller Chip Intel® Ethernet Controller I350-AM4
    • Ordering Info.

      Item No. Description
      PulM-1G8T-I350-BP-R10 Intel® Ethernet Controller I350-AM4 based Network Interface Card with 8 x RJ-45 by 2 PCIe 2.0 x4 with bypass interface, RoHS.
      PulM-1G8T-I350-R10 Intel® Ethernet Controller I350-AM4 based Network Interface Card with 8 x RJ-45 by 2 PCIe 2.0 x4 interface, RoHS.
    • Package Contents

      • • 1 x PulM-1G8T-I350 or PulM-1G8T-I350-BP module

      • • 1 x L-shaped T10 Plum Wrench

      • • 2 x Torx Screws

      • • 1 x QIG
